Circuit Schematic

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

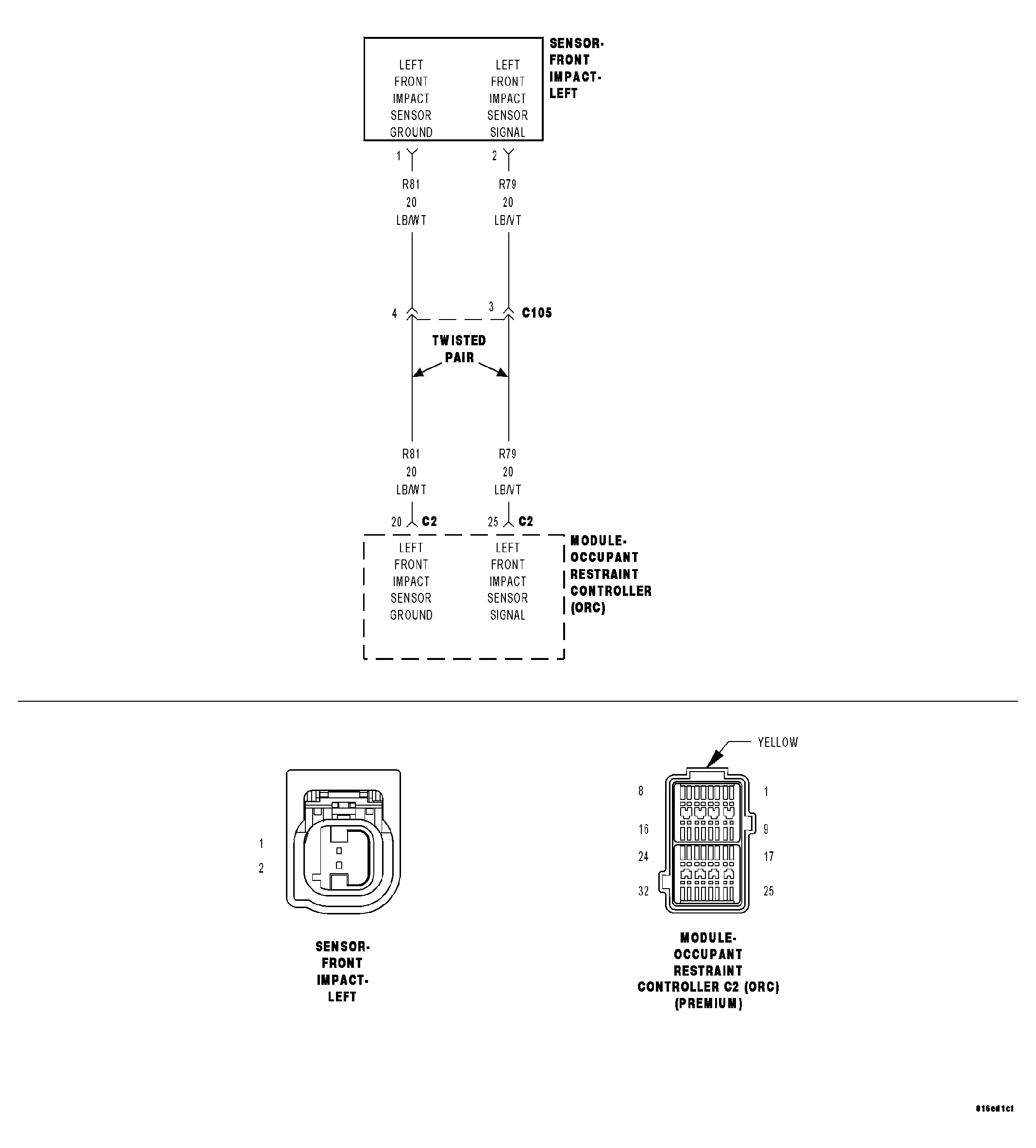

Fig 1: Satellite Acceleration Sensor Circuit Schematic
GC0043749Courtesy of CHRYSLER LLC
