Starter 2.2L DSL

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: View Of Cooling Module
GC0041000Courtesy of CHRYSLER LLC
1 - UPPER RADIATOR CROSSMEMBER
2 - COOLING MODULE
3 - RADIATOR FAN CONNECTOR
4 - LOWER RADIATOR CROSSMEMBER
  1. Disconnect the negative battery cable. See Fig 1.
  2. Remove the radiator. Refer to REMOVAL .

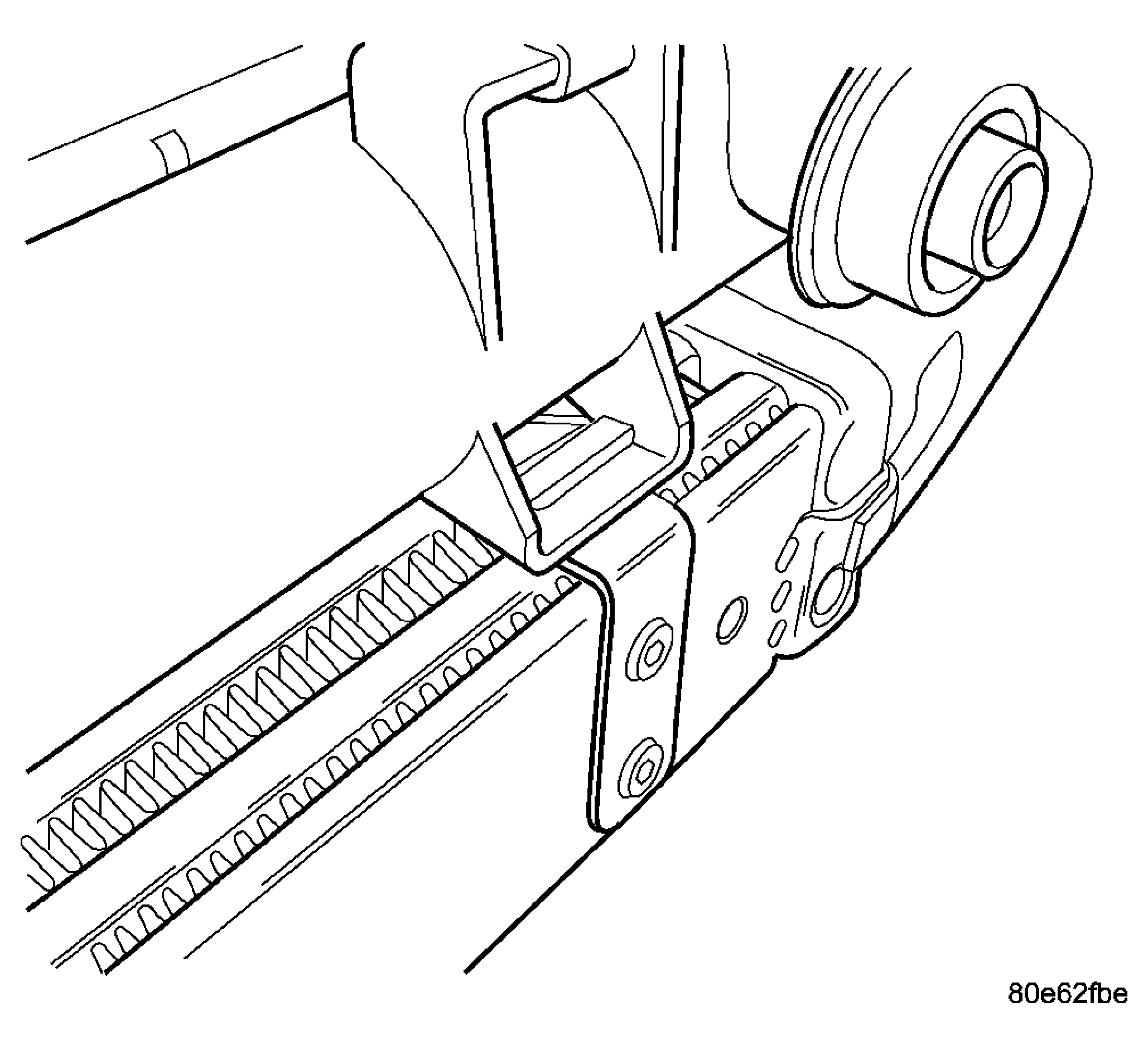

    Fig 2: Radiator Mounting Tabs
    GC0021926Courtesy of CHRYSLER LLC
  3. Remove inner cooler from radiator by lifting the inner cooler up off of the 2 lower mounting tabs and push it toward the front of vehicle. See Fig 2. These tabs are on the bottom of the inner cooler and lock into the bottom of the radiator.
    Fig 3: View Of Starter Location
    GC0021924Courtesy of CHRYSLER LLC
  4. Remove the radiator from vehicle. See Fig 3.
    Fig 4: View Of Starter Solenoid Electrical Connections
    GC0021925Courtesy of CHRYSLER LLC
  5. Disconnect the electrical connectors from the starter. See Fig 4.
  6. Disconnect the battery cable from the starter.
  7. Remove the lower mounting bolt and ground cable.
  8. Remove the upper mounting bolt.
  9. Remove starter.
