Starter 2.2L DSL

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

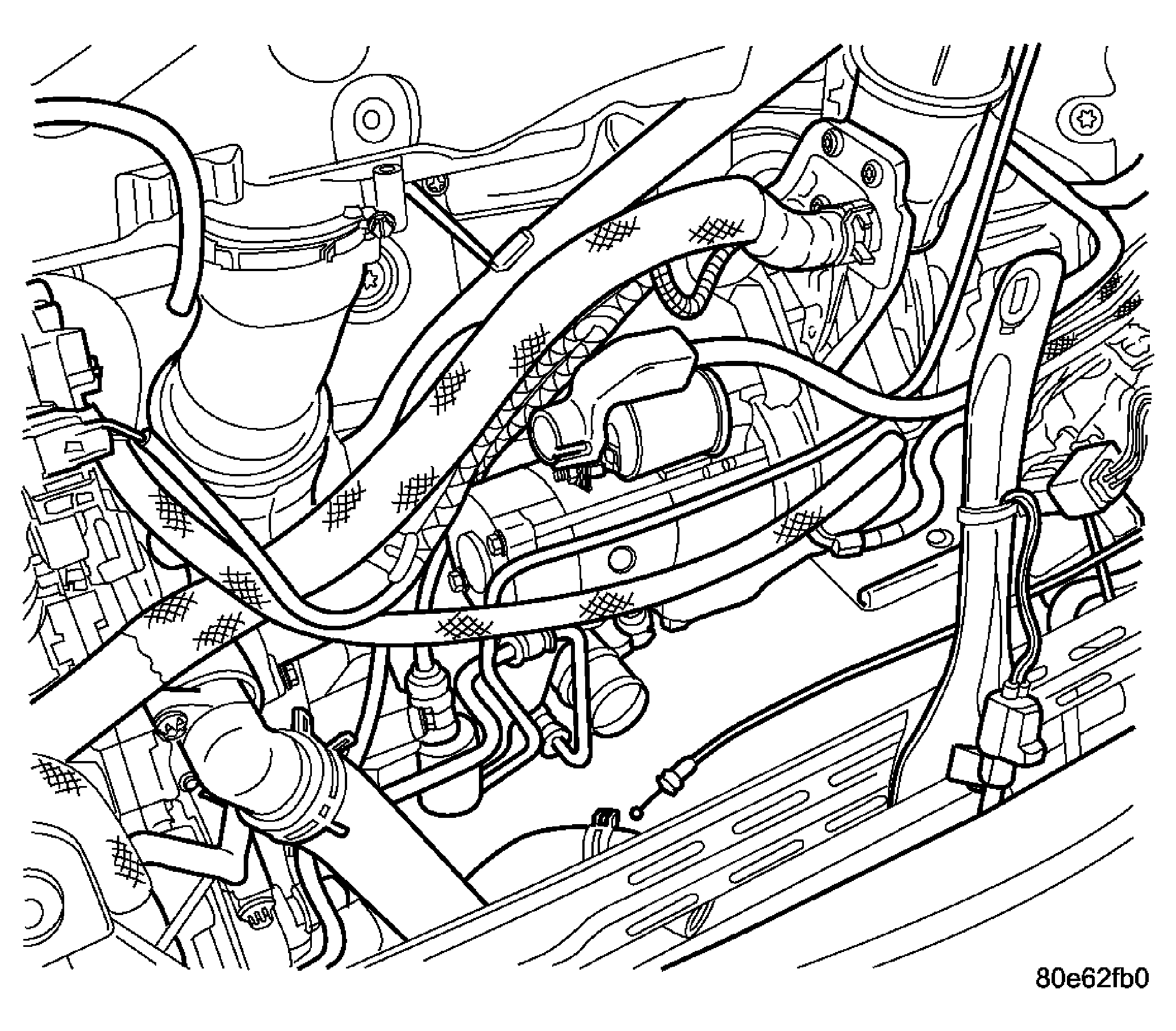

Fig 1: View Of Starter Location
GC0021924Courtesy of CHRYSLER LLC
  1. Install starter. See Fig 1.
  2. Install the upper mounting bolt.
  3. Install the lower mounting bolt and ground cable.

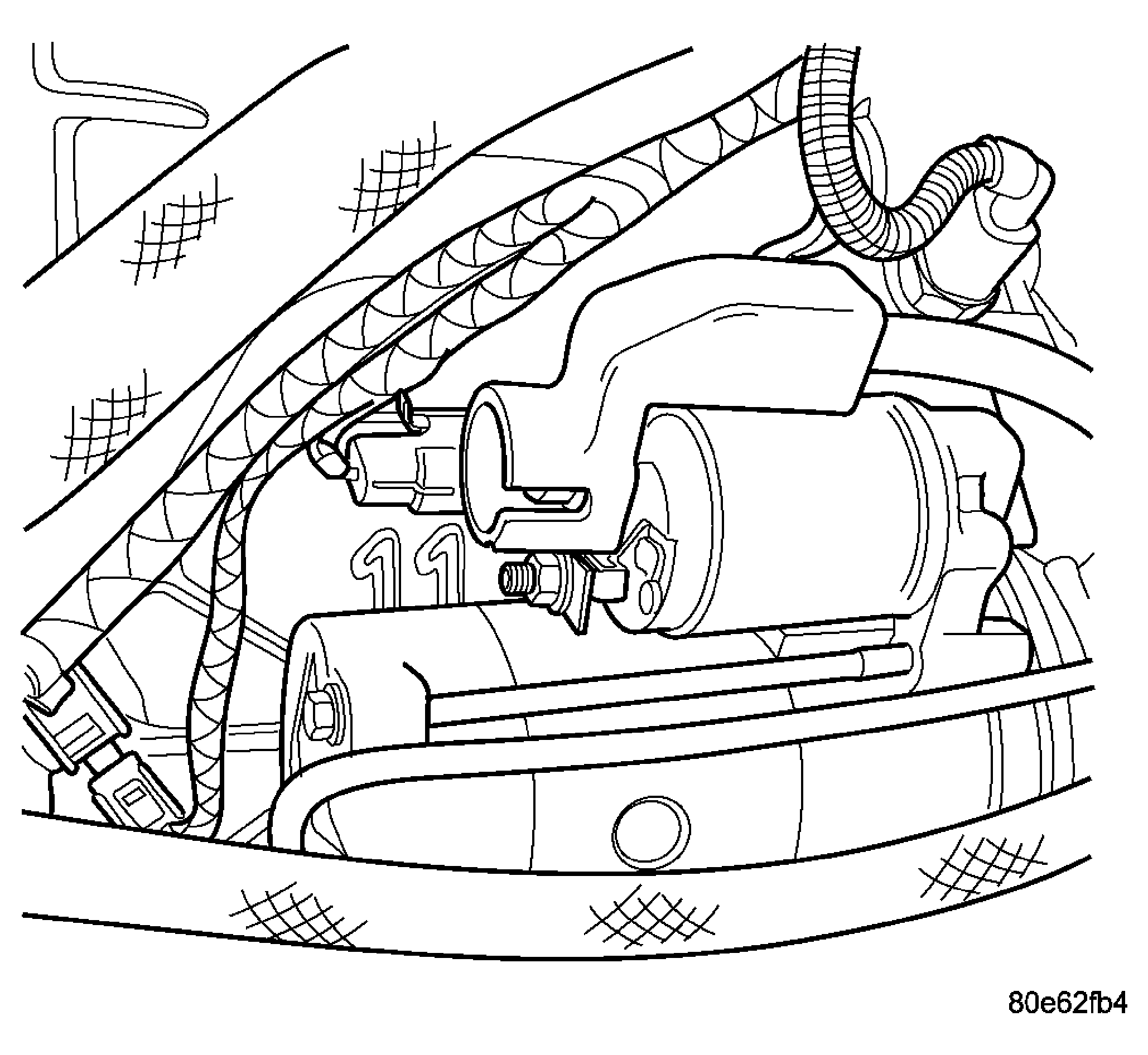

    Fig 2: View Of Starter Solenoid Electrical Connections
    GC0021925Courtesy of CHRYSLER LLC
  4. Connect the battery cable to the starter. See Fig 2.
  5. Connect the electrical connectors to the starter. See Fig 2.
    Fig 3: View Of Cooling Module
    GC0041000Courtesy of CHRYSLER LLC
    1 - UPPER RADIATOR CROSSMEMBER
    2 - COOLING MODULE
    3 - RADIATOR FAN CONNECTOR
    4 - LOWER RADIATOR CROSSMEMBER
  6. Install the radiator to vehicle. See Fig 3.
  7. Connect the negative battery cable.
