Tappets-Hydraulic Roller: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate tappets.

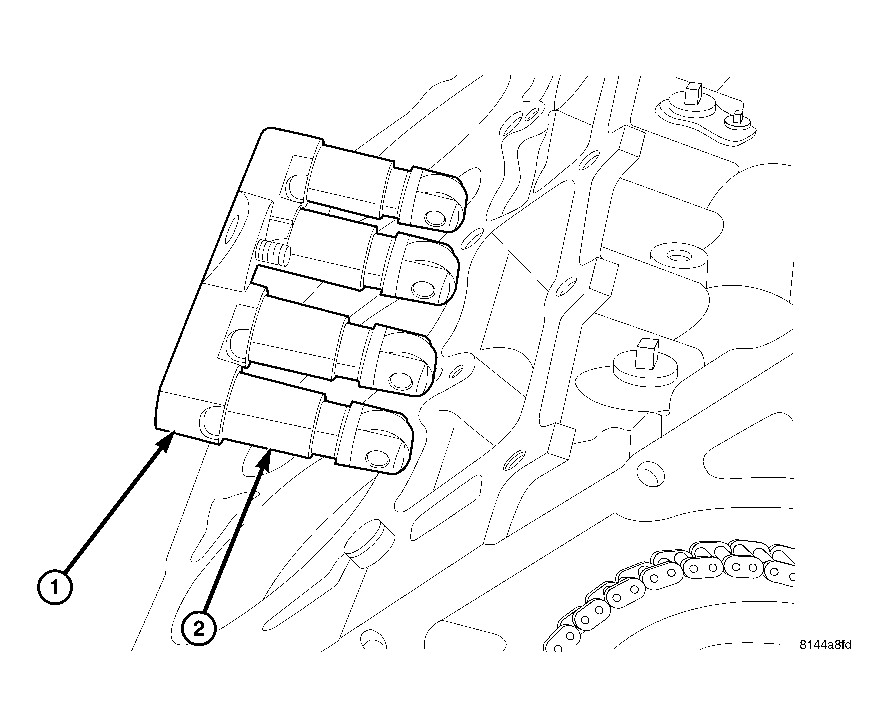

    Fig 1: Remove/Install Hydraulic Roller Tappet
    GC0003965Courtesy of DAIMLERCHRYSLER CORP.
    1 - TAPPET RETAINER
    2 - HYDRAULIC ROLLER TAPPET
  2. Install tappets in their original positions.
  3. Install tappet guide yoke. Install the tappet guide yoke bolt and tighten to 12 N.m (106 in. lbs.) torque.
  4. Install cylinder head. (Refer to ENGINE/CYLINDER HEAD - INSTALLATION) .
  5. Install pushrods and rocker arm assembly. (Refer to ENGINE/CYLINDER HEAD/ROCKER ARM / ADJUSTER ASSY - INSTALLATION) .
  6. Install cylinder head cover. (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) - INSTALLATION) .
  7. Install intake manifold (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION) .
  8. Install the air cleaner. Refer to INSTALLATION .
  9. Connect the negative cable to the battery.
    CAUTION: To prevent damage to valve mechanism, engine must not be run above fast idle until all hydraulic tappets have filled with oil and have become quiet.
  10. Road test vehicle and check for leaks.
