Circuit Schematic

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

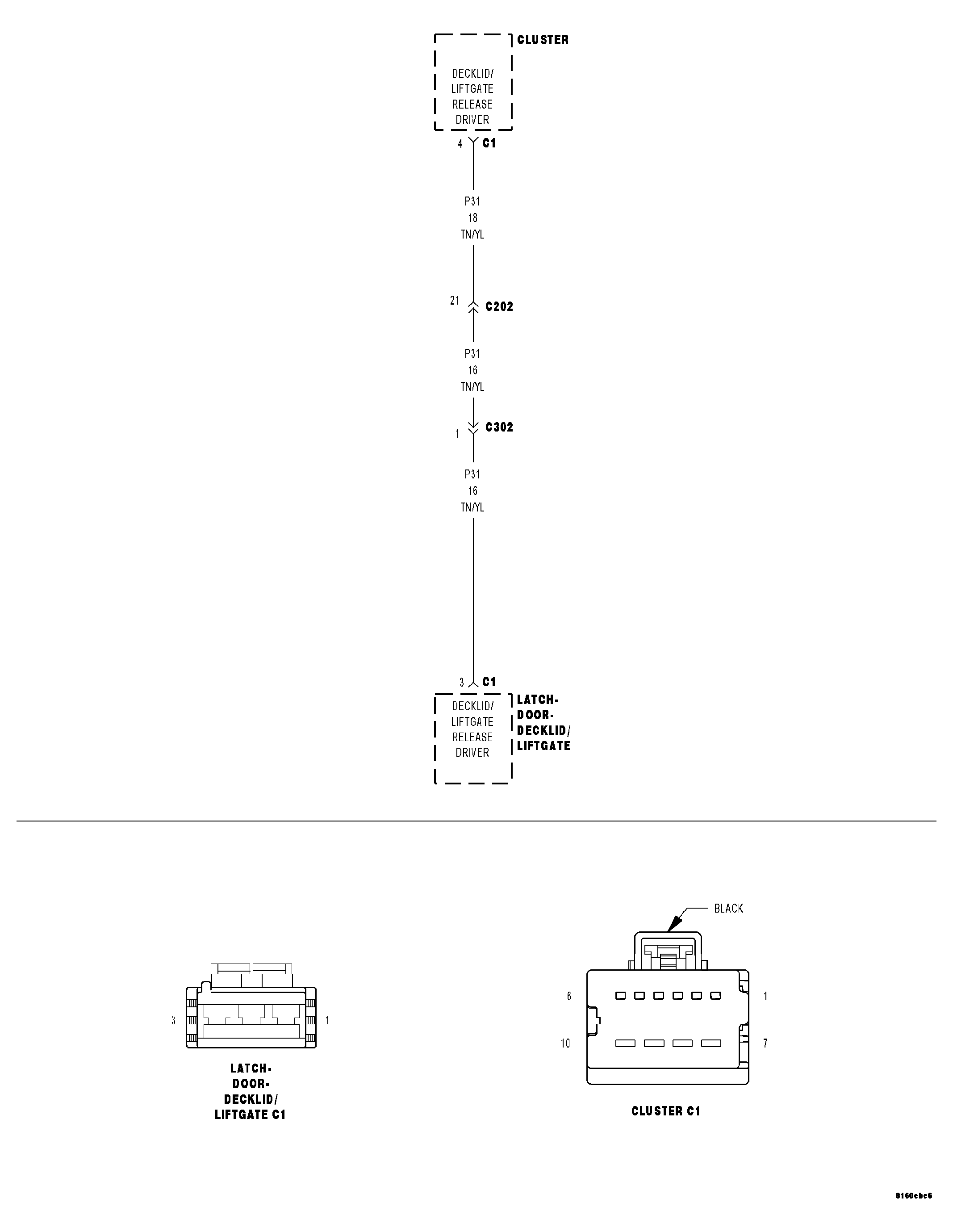

Fig 1: Trunk/Gate Release Control Circuit Schematic
GC0043651Courtesy of CHRYSLER LLC
