Ambient Temperature Sensor

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

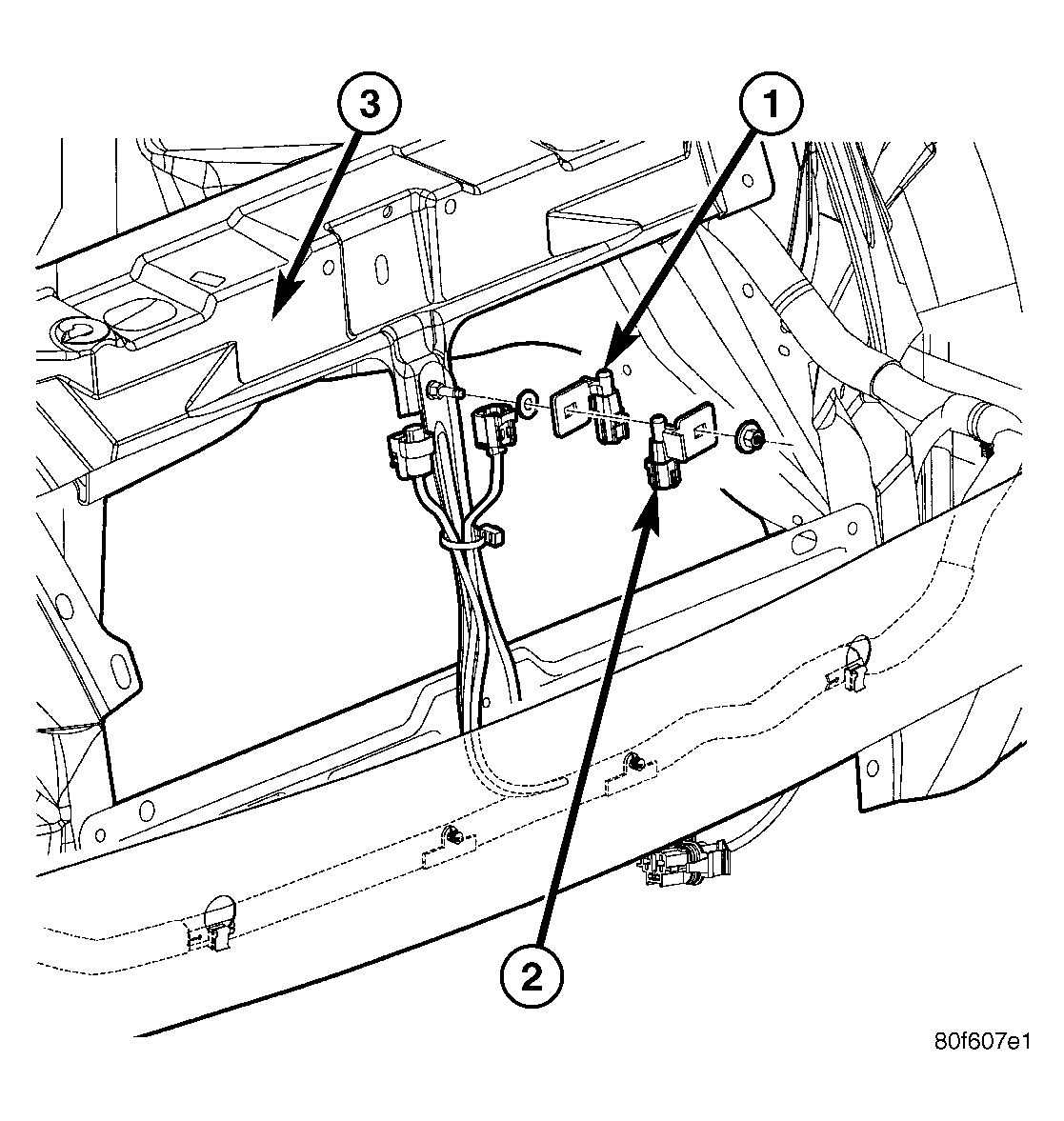

Fig 1: Locating Sensor-Ambient Temperature
GC0043634Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Working through the hole in the top center of the grille, remove the retaining nut securing the ambient temperature sensor (2) to the radiator support (3).
  3. Disconnect the ambient air temperature sensor electrical connector and remove the sensor from the vehicle.
