Lamp Unit-Fog

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

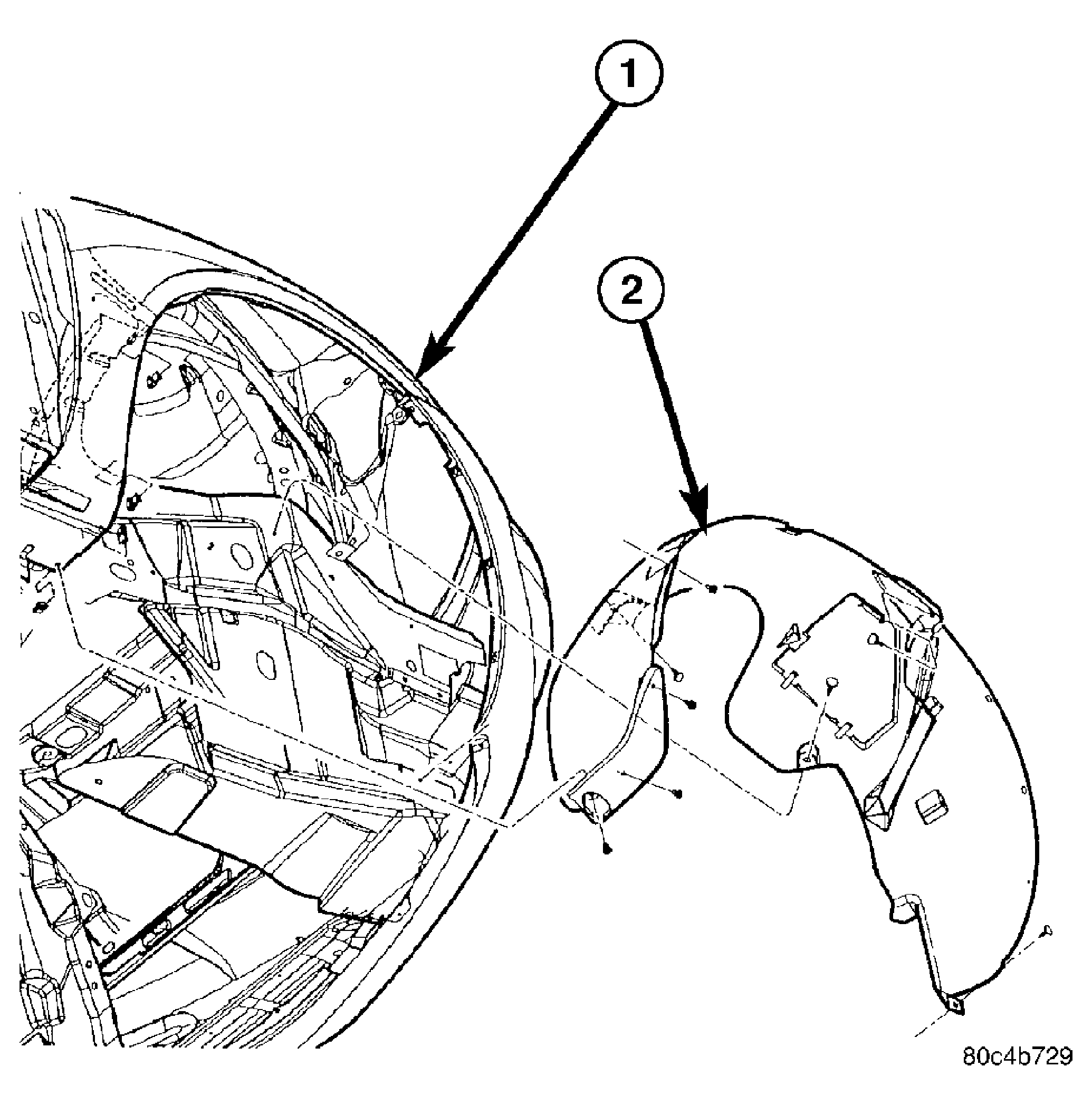

Fig 1: Front Wheelhouse Splash Shield

Courtesy of CHRYSLER LLC

Remove fasteners attaching lower splash shield (2) to gain access to the rear of the fog lamp.

Fig 2: Identifying Fog Lamp Connector
Courtesy of CHRYSLER LLC
Disconnect wire connector (2) from fog lamp unit (1).

Fig 3: Locating Fog Lamp Retaining Screws
Courtesy of CHRYSLER LLC
Remove four screws (1) attaching fog lamp unit to fascia.
Remove lamp unit from fascia.
