Mounting-Engine Rear: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

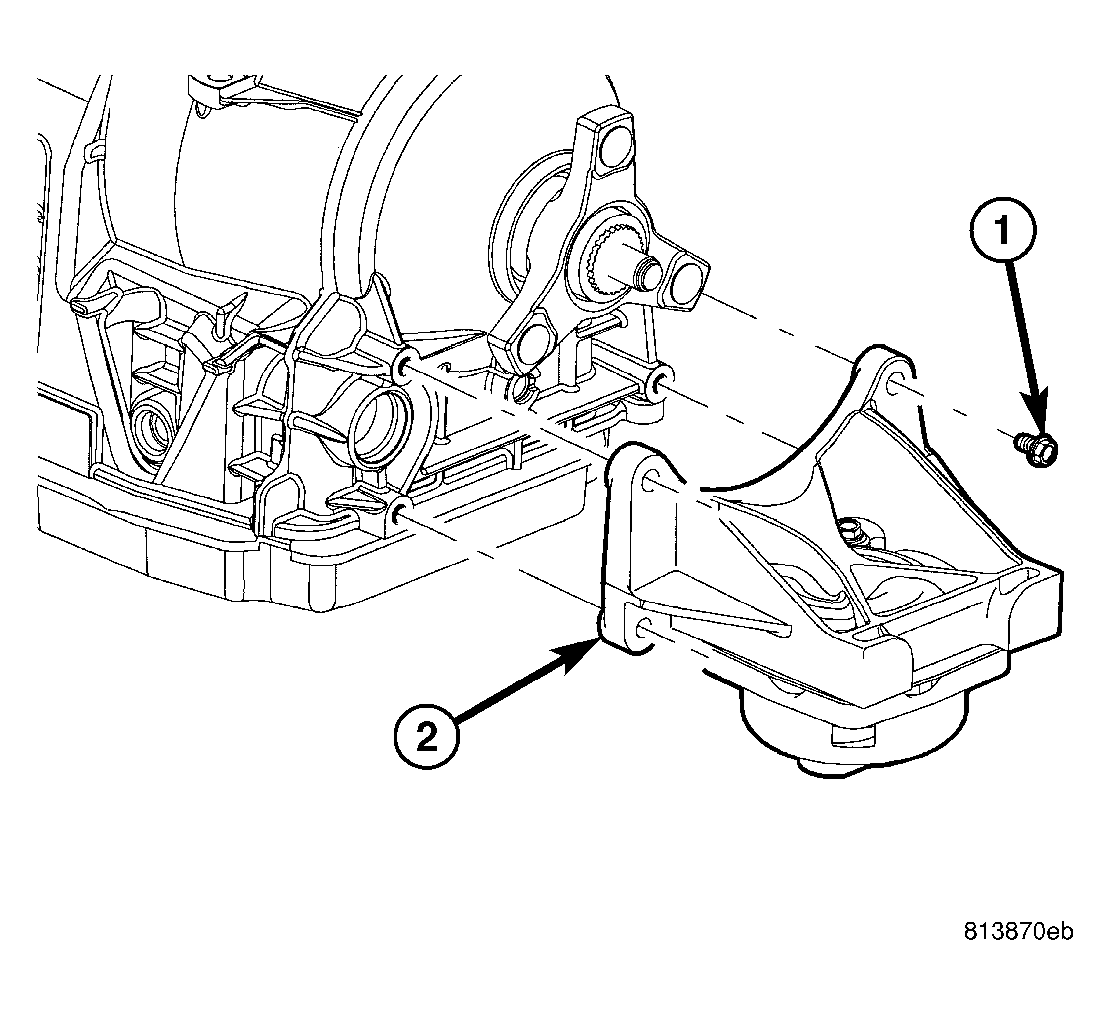

Fig 1: Trans Mount Bracket
GC0015470Courtesy of DAIMLERCHRYSLER CORP.
1 - Bolts
2 - Trans Mount Bracket
  1. Install the transmission mount bracket (2), if removed.

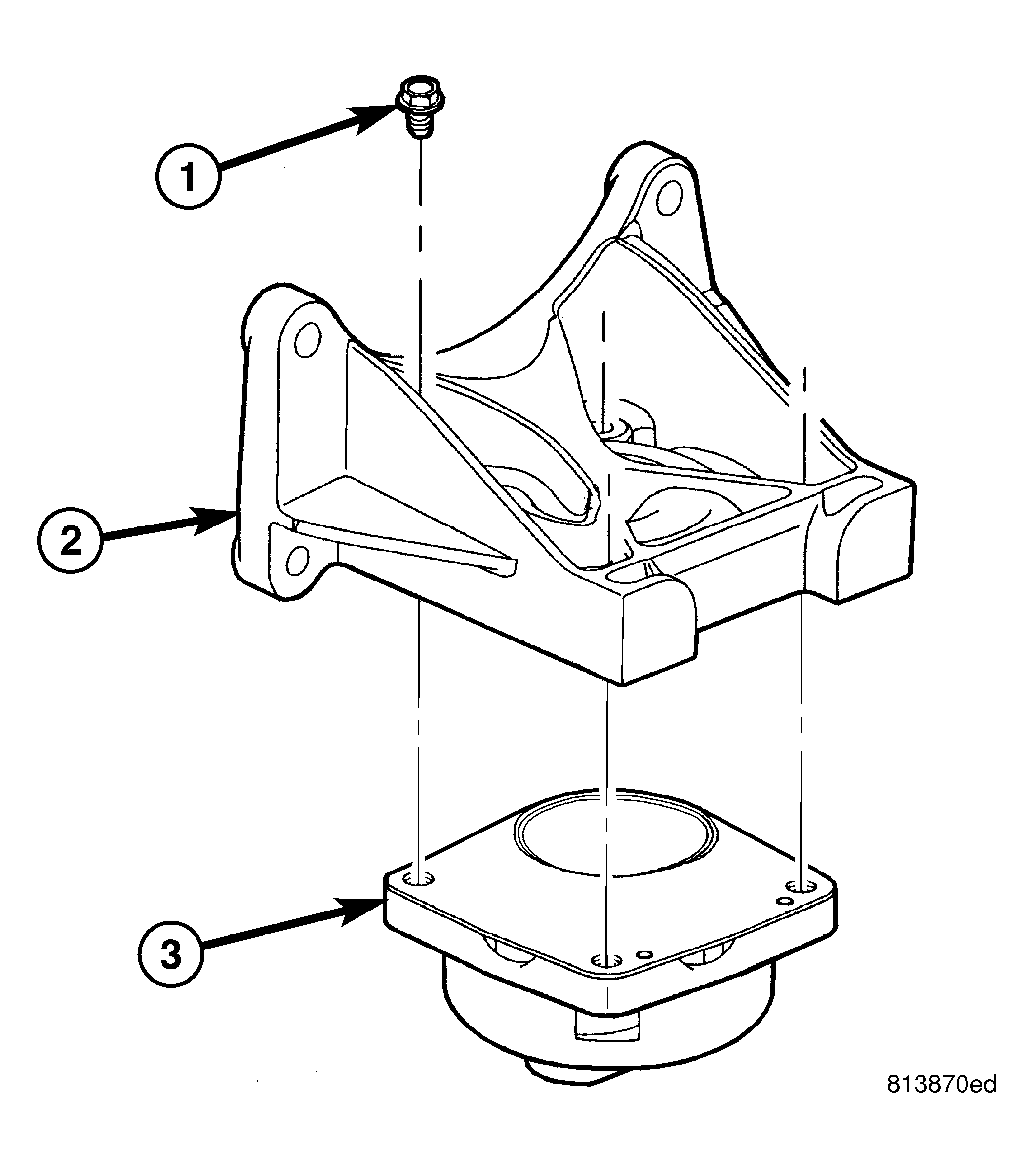

    Fig 2: Transmission Mount
    GC0015471Courtesy of DAIMLERCHRYSLER CORP.
    1 - Bolts
    2 - Trans Mount Bracket
    3 - Trans Mount
  2. Position the transmission mount (3) on the transmission mount bracket (2). Install the bolts (1) that attach the transmission mount (3) to the bracket (2).
  3. Torque the bolts to N.m ( ft.lbs.) torque.

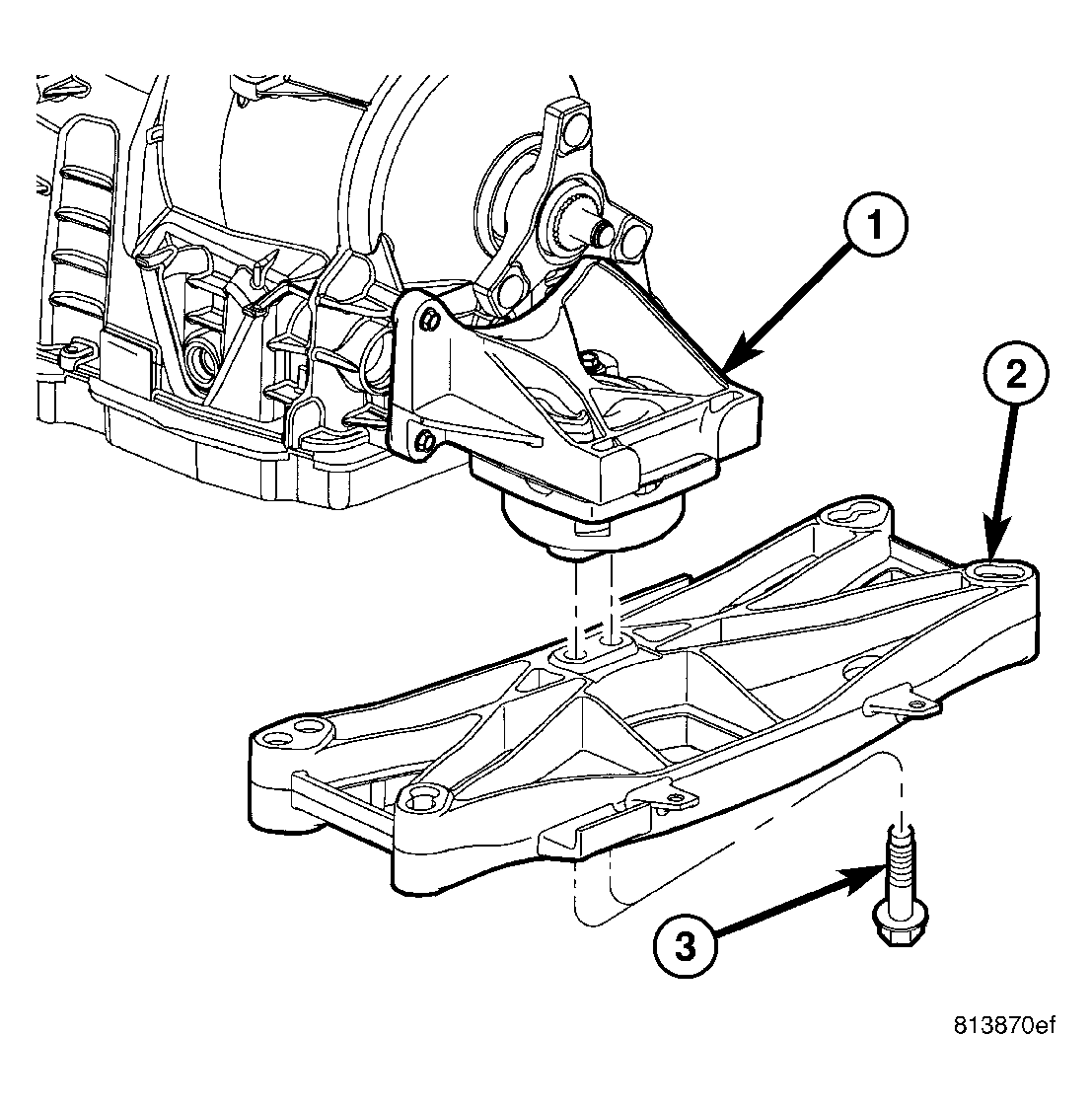

    Fig 3: Crossmember
    GC0015472Courtesy of DAIMLERCHRYSLER CORP.
    1 - Trans Mount Bracket
    2 - Crossmember
    3 - Bolts
  4. Install the crossmember (2).
