Home >> Chrysler >> 2009 >> 300 Signature Series >> Repair and Diagnosis >> External Pages >> Different car >> Section 164 (Electronic Control Modules - Electrical Diagnostics) >> Electronic Control Modules - Electrical Diagnostics >> DTC Troubleshooting >> *No Response From PDM (Right Window Regulator Module) (Pt27) >> Circuit Schematic

Circuit Schematic

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

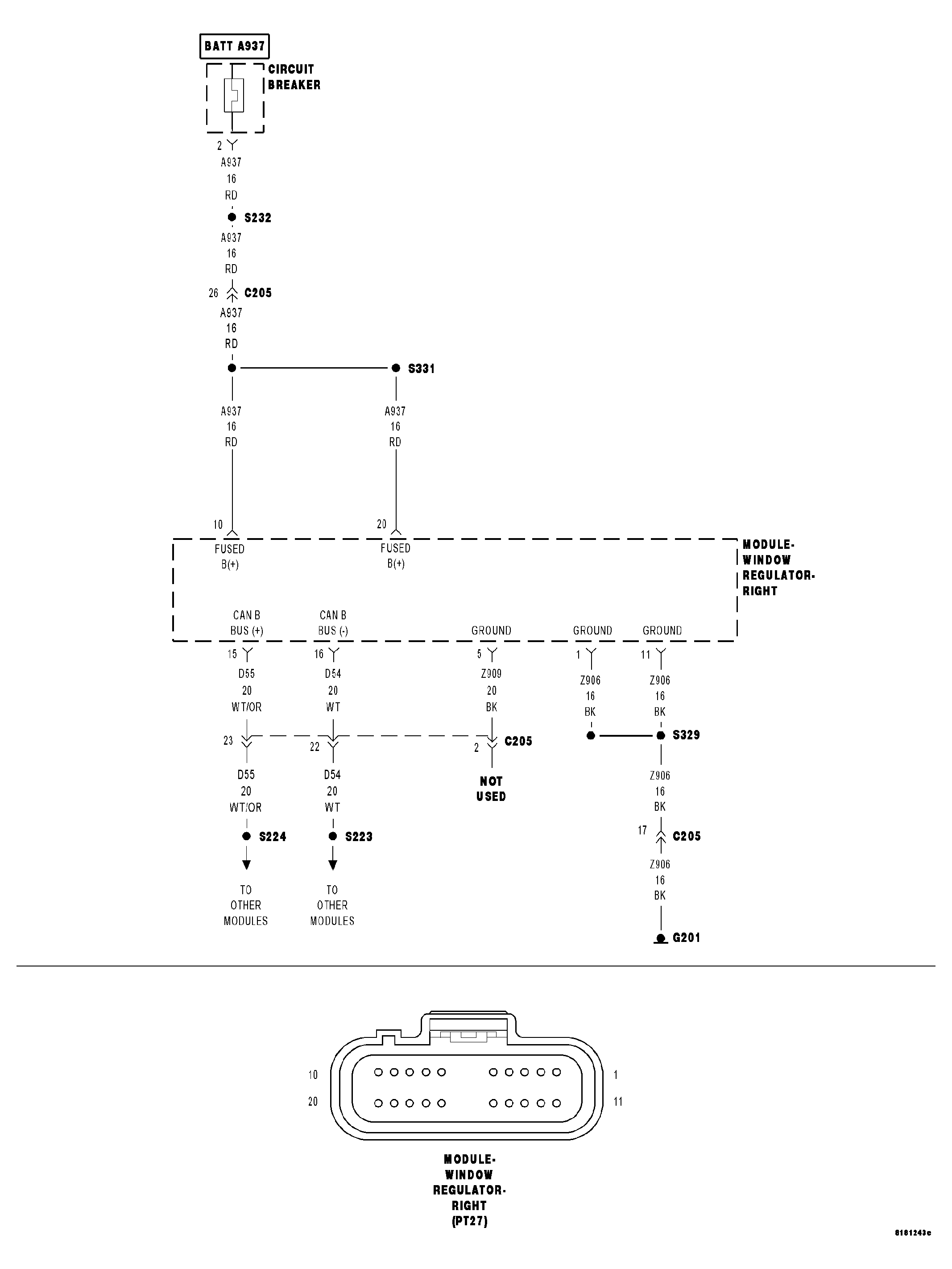

Fig 1: PDM (Right Window Regulator Module) - Bus & Power Supply Circuits Schematic
GC0043452Courtesy of CHRYSLER LLC
