Diagnostic Test

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

1) TEST FOR INTERMITTENT CONDITION
Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.

With the scan tool, select ECU view.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

NOTE: Check the TIPM for any active CAN C hardware DTCs, perform DTC before proceeding.

Does the scan tool display a red X next to the module?

Yes
1. Go to step 2).
No
1. The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
2) (A921) (A922) FUSED B (+) CIRCUIT OPEN OR SHORTED

Fig 1: Checking Fused B (+) Circuit For Open Or Short
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Antilock Brake Module harness connector.

Using a 12-volt test light connected to ground, check each (A921) and (A922) Fused B (+) circuit.

Does the test light illuminate brightly for each circuit?

Yes
1. Go to step 3).
No
1. Repair the Fused B (+) circuit for an open or short.
2. Perform ABS VERIFICATION TEST - VER 1 .
3) (Z902) GROUND CIRCUIT OPEN

Fig 2: Checking Ground Circuit For An Open
Courtesy of CHRYSLER LLC

Using a 12-volt test light connected to 12-volts, check each (Z902) ground circuit.

Does the test light illuminate brightly for each circuit?

Yes
1. Go to step 4).
No
1. Repair the (Z902) ground circuit for an open.
2. Perform ABS VERIFICATION TEST - VER 1 .
4) (F20) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED

Fig 3: Checking Fused Ignition Switch Output Circuit With 12-Volt Test Light
Courtesy of CHRYSLER LLC

Turn the ignition on.

Using a 12-volt test light connected to ground, check the (F20) Fused Ignition Switch Output circuit.

Does the test light illuminate brightly?

Yes
1. Go to step 5).
No
1. Repair the (F20) Fused Ignition Switch Output circuit for an open or short.
2. Perform ABS VERIFICATION TEST - VER 1 .
5) (D65) CAN C BUS (+) CIRCUIT OPEN

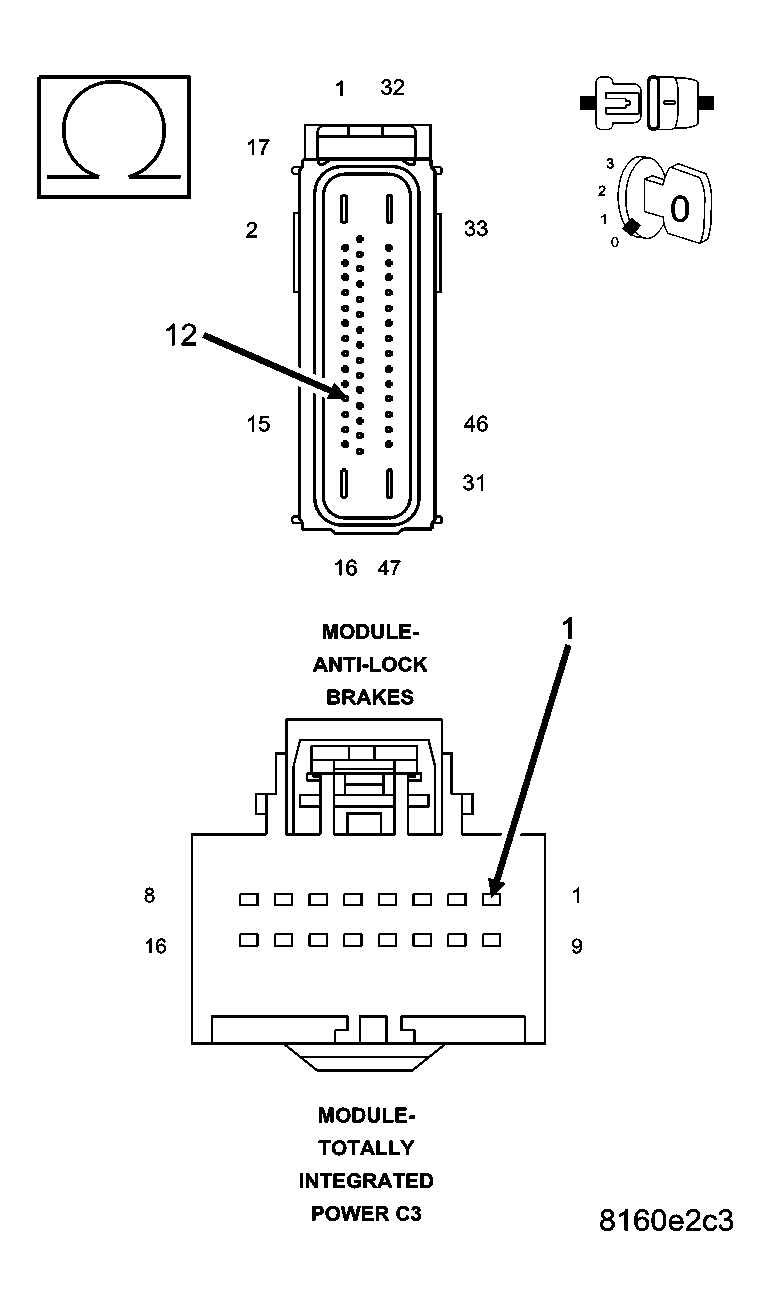

Fig 4: Measuring Resistance Of CAN C Bus (+) Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the TIPM C3 harness connector.

Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM connector and the Antilock Brake Module connector.

Is resistance below 5.0 ohms?

Yes
1. Go to step 6).
No
1. Repair the (D65) CAN C Bus (+) circuit for an open.
2. Perform ABS VERIFICATION TEST - VER 1 .
6) (D64) CAN C BUS (-) CIRCUIT OPEN

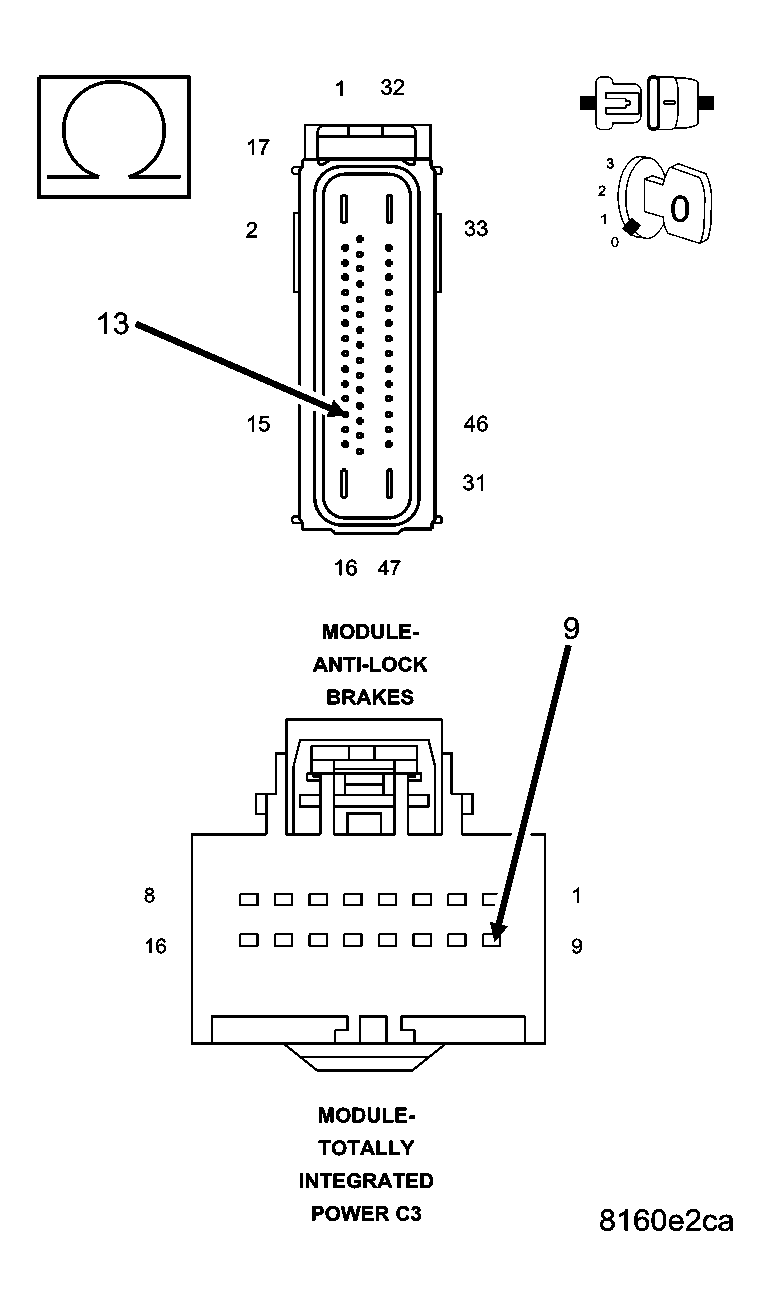

Fig 5: Measuring Resistance Of CAN C Bus (-) Circuit
Courtesy of CHRYSLER LLC

Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM connector and the Antilock Brake Module connector.

Is resistance below 5.0 ohms?

Yes
1. Replace the Antilock Brake Module in accordance with the service information.
2. Perform ABS VERIFICATION TEST - VER 1 .
No
1. Repair the (D64) CAN C Bus (-) circuit for an open.
2. Perform ABS VERIFICATION TEST - VER 1 .
