Satellite Receiver Module
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the owner's satellite service was active before the satellite receiver module was replaced the new satellite receiver module will have to be activated. The existing satellite receiver module will have to be deactivated before the replacement satellite receiver module can be activated.
To activate Sirius satellite radio service, call Sirius at their toll-free number. Please have the following information available when activating a system:
- Electronic Serial Number/Sirius Identification Number (ESN/SID) of the unit to be replaced
- ESN/SID of the replacement receiver
- Vehicle Owner's name and address
- VIN
The ESN/SID number can be obtained through the radio display by following the steps in the satellite radio owners manual.
The vehicle must be outside with the audio system powered on, in the satellite radio mode, to receive the activation signal.
- Disconnect and isolate the battery negative cable.
- Remove the left rear quarter trim panel. Refer to REMOVAL .

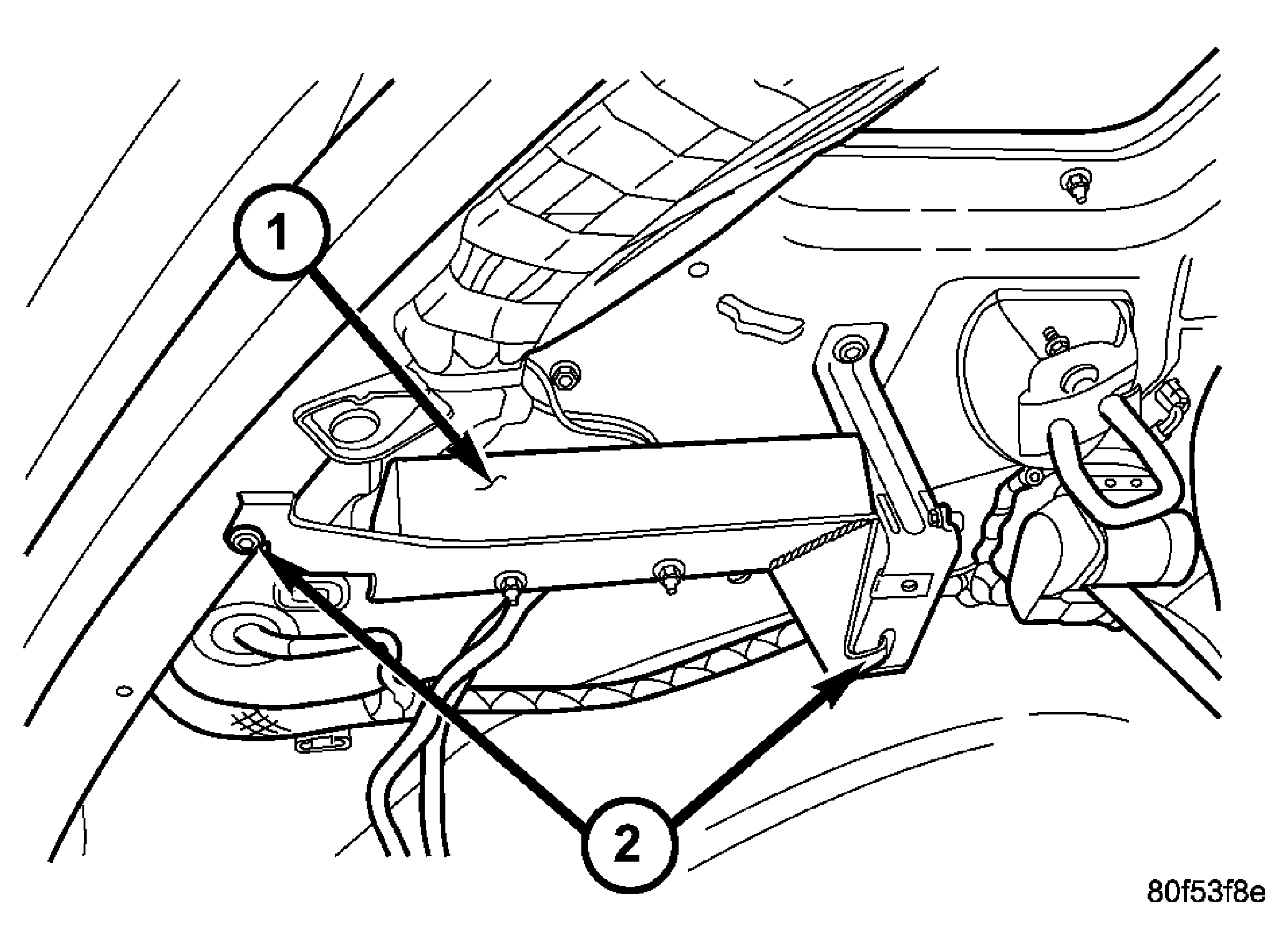

- Remove the mounting bracket fasteners (2).
- Disconnect the wire harness connectors.
- Remove the module (1) from the mounting bracket.
