Valve And Spring Installed Height

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

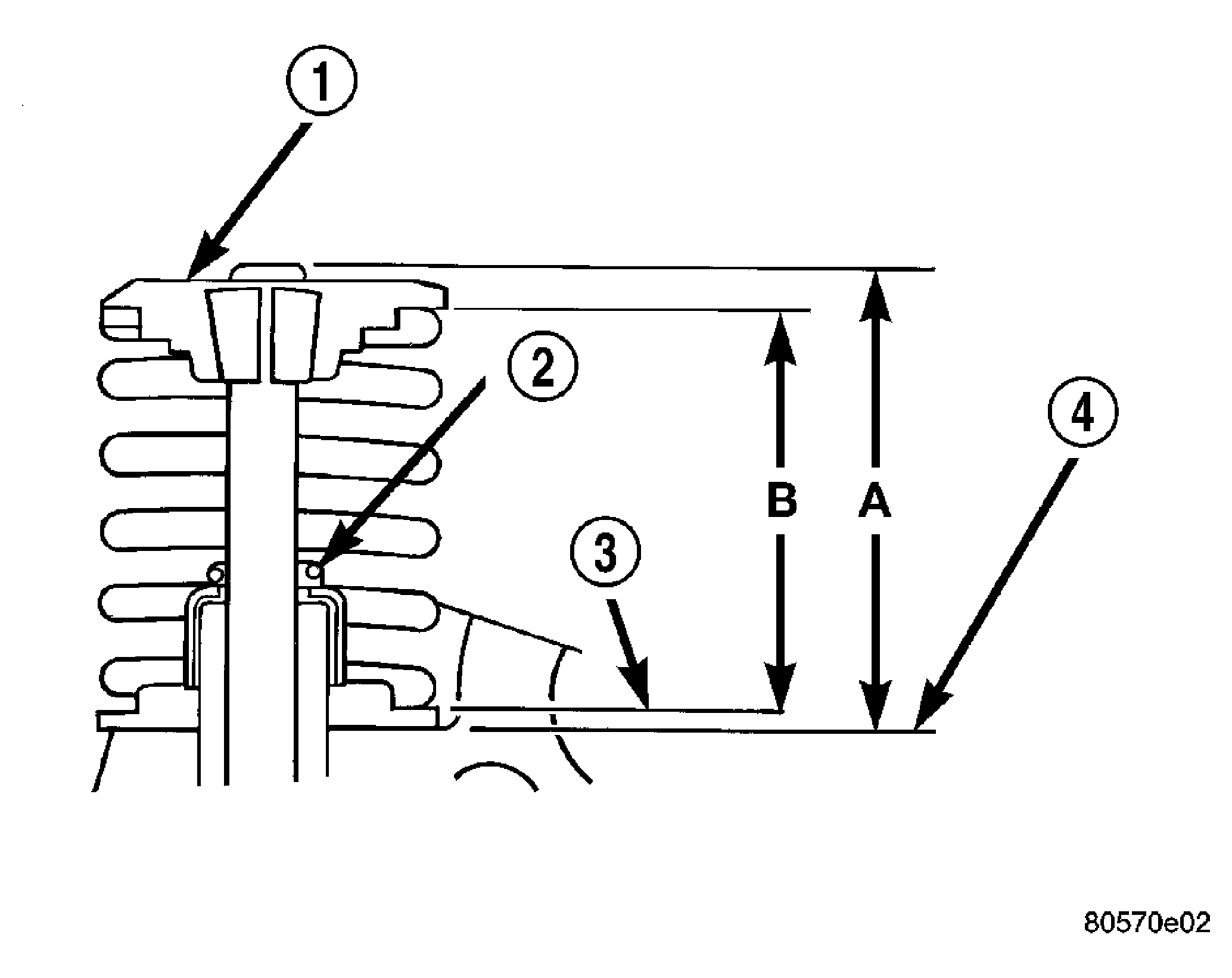

Fig 1: Checking Valve Tip Height and Valve Spring Installed Height
GC0001845Courtesy of DAIMLERCHRYSLER CORP.
1 - SPRING RETAINER
2 - GARTER SPRING
3 - VALVE SPRING SEAT TOP
4 - CYLINDER HEAD SURFACE
  1. Coat valve stems with clean engine oil and insert them in cylinder head.
  2. If valves or seats have been refaced, check valve tip height (A). See Fig 1. If valve tip height is greater than 43.65 mm (1.7185 in.) intake or 46.48 mm (1.8299 in.) exhaust, grind valve tip until within specifications. Make sure measurement is taken from cylinder head surface to the top of valve stem.
  3. Install valve seal/spring seat assembly over valve guides on all valve stem. See Fig 3. Ensure that the garter spring is intact around the top of the rubber seal.
    Fig 2: Valve Spring Identification
    GC0001844Courtesy of DAIMLERCHRYSLER CORP.
    1 - YELLOW OR WHITE DYE
    2 - ORANGE DYE
  4. Place valve spring (color-coded end facing up). See Fig 2and valve retainer into position on spring seat. See Fig 1.

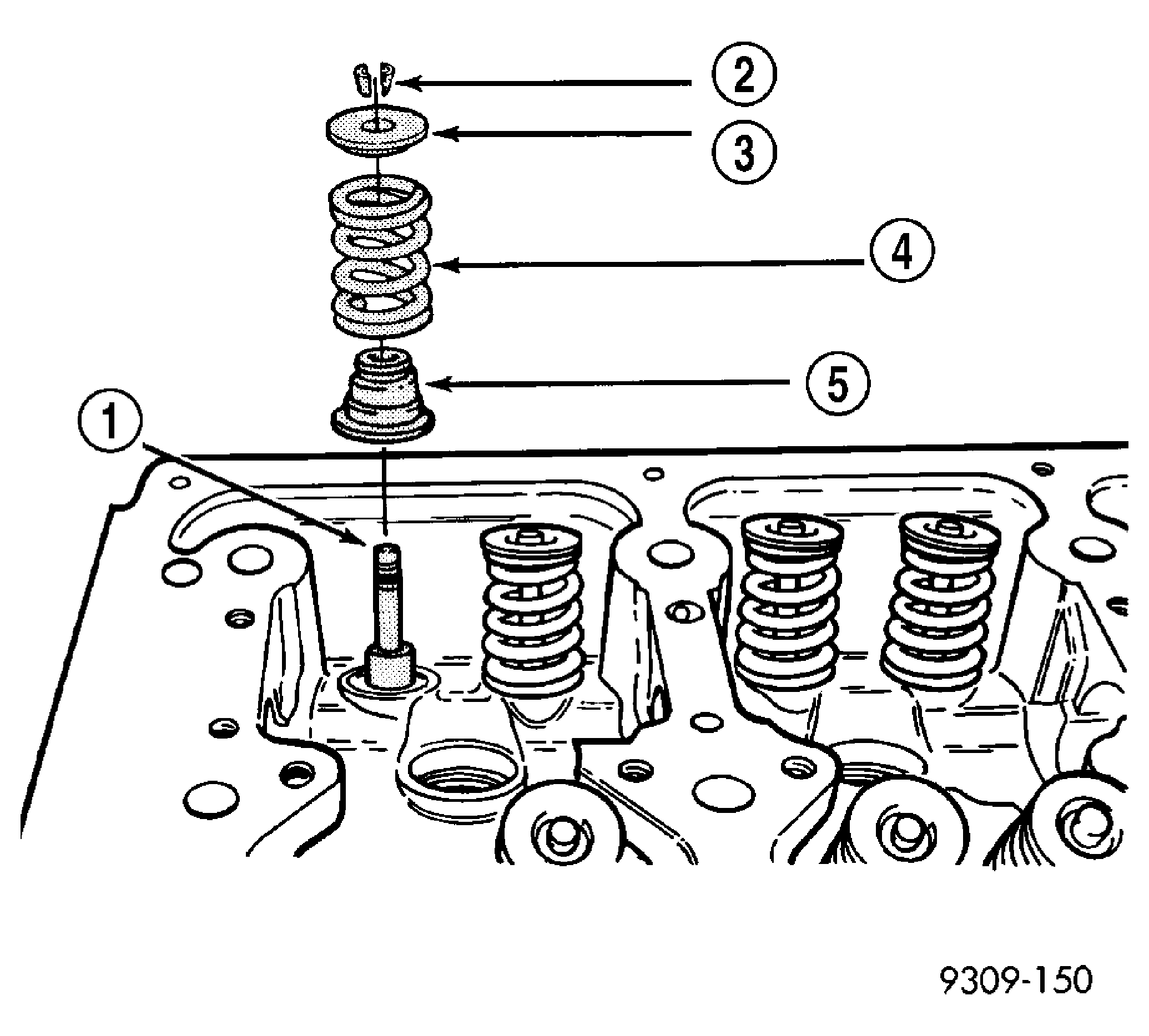

    Fig 3: Valve Seal and Spring-Installation
    GC0001846Courtesy of DAIMLERCHRYSLER CORP.
    1 - VALVE
    2 - VALVE RETAINING LOCKS
    3 - VALVE SPRING RETAINER
    4 - VALVE SPRING
    5 - VALVE SEAL AND VALVE SPRING SEAT ASSEMBLY
  5. Compress valve springs (4) with valve spring compressor C-3422-D and adapter 6526, install locks (2) and release tool. (Refer to ENGINE - SPECIAL TOOLS) .
  6. If valves (1) and/or seats are refaced, measure the installed height of springs. See Fig 1. Measurements are taken from top of spring (4) seat to the bottom surface of spring retainer. If height is greater than 38.75 mm (1.5256 in.), install a 0.762 mm (0.030 in.) spacer in head counterbore under the valve spring seat to bring spring height back within specification.
