Valve And Valve Seat Refacing: Notes

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

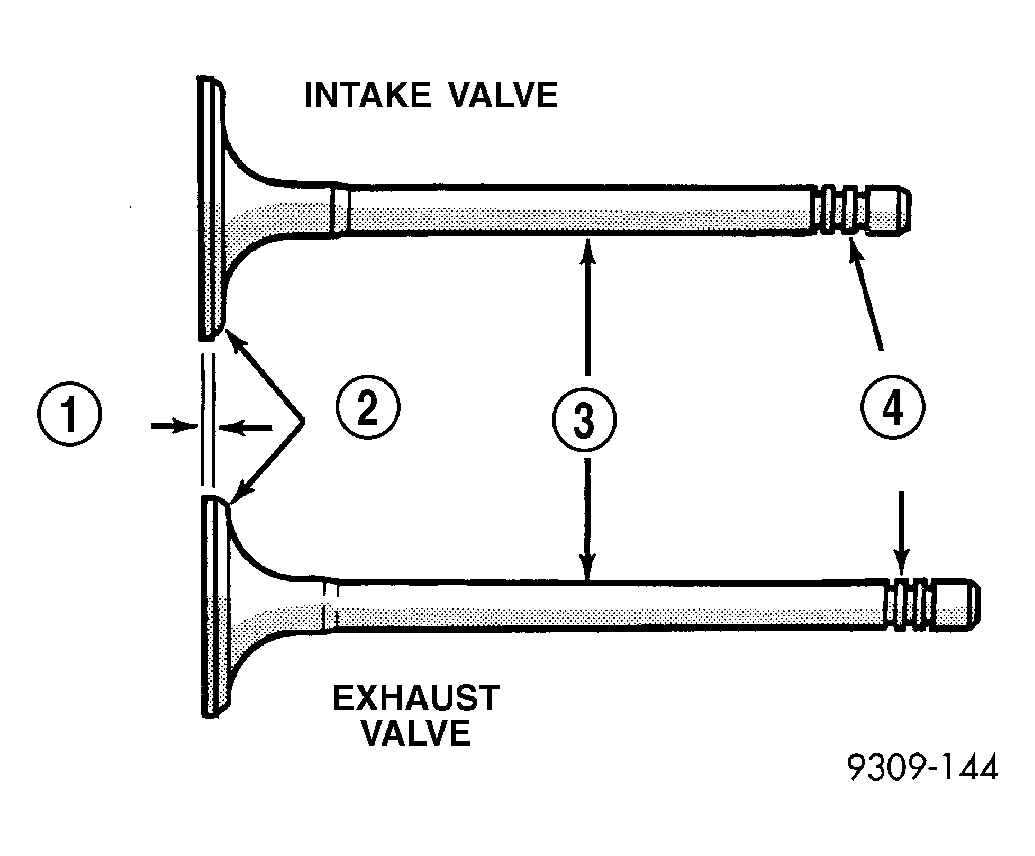

Fig 1: Intake and Exhaust Valves

Courtesy of DAIMLERCHRYSLER CORP.

1 - MARGIN

2 - FACE

3 - STEM

4 - VALVE SPRING RETAINER LOCK GROOVES
