Valve Guides

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

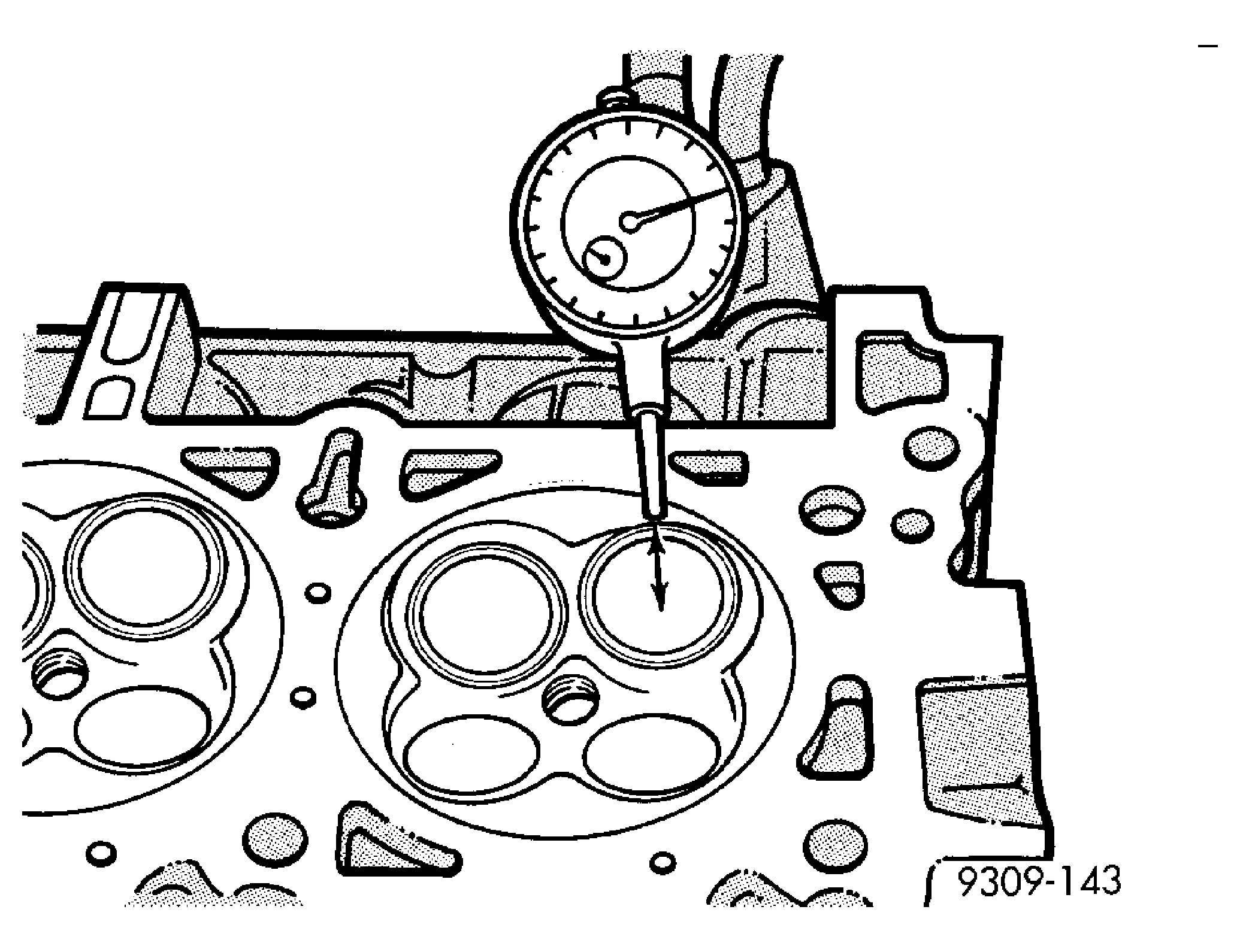

Fig 1: Measuring Valve Guide Wear

Courtesy of DAIMLERCHRYSLER CORP.

Measure valve stem-to-guide clearance as follows:
Install valve into cylinder head so it is 15 mm (0.590 inch.) off the valve seat. A small piece of hose may be used to hold valve in place.
Attach dial indicator Tool C-3339 to cylinder head and set it at right angle of valve stem being measured. See Fig 1.
Move valve to and from the indicator.
Note dial indicator reading and compare to engine specifications. (Refer to ENGINE - SPECIFICATIONS) .

NOTE: Replace cylinder head if stem-to-guide clearance exceeds specifications or if guide is loose in cylinder head.
