Tube - Spark Plug: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

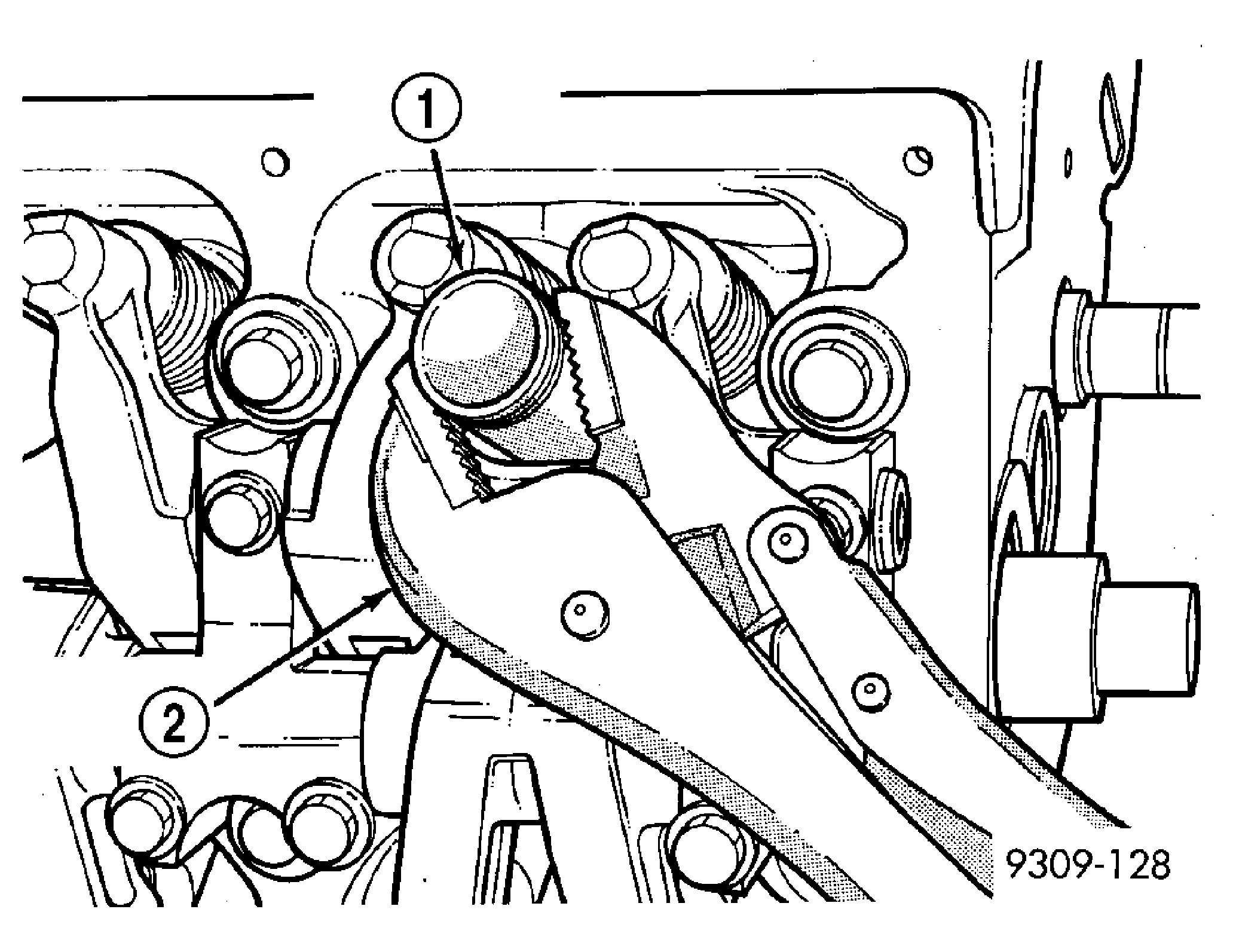

Fig 1: Servicing Spark Plug Tubes
GC0001867Courtesy of DAIMLERCHRYSLER CORP.
1 - SPARK PLUG TUBE
2 - LOCKING PLIERS
  1. Remove cylinder head cover(s). Refer to appropriate cylinder head cover.
  2. Using suitable locking pliers, remove the tube from the cylinder head and discard tube. See Fig 1.
  3. Clean area around spark plug with Mopar® Parts Cleaner or equivalent.
