TENSIONER Pulley Assembly

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

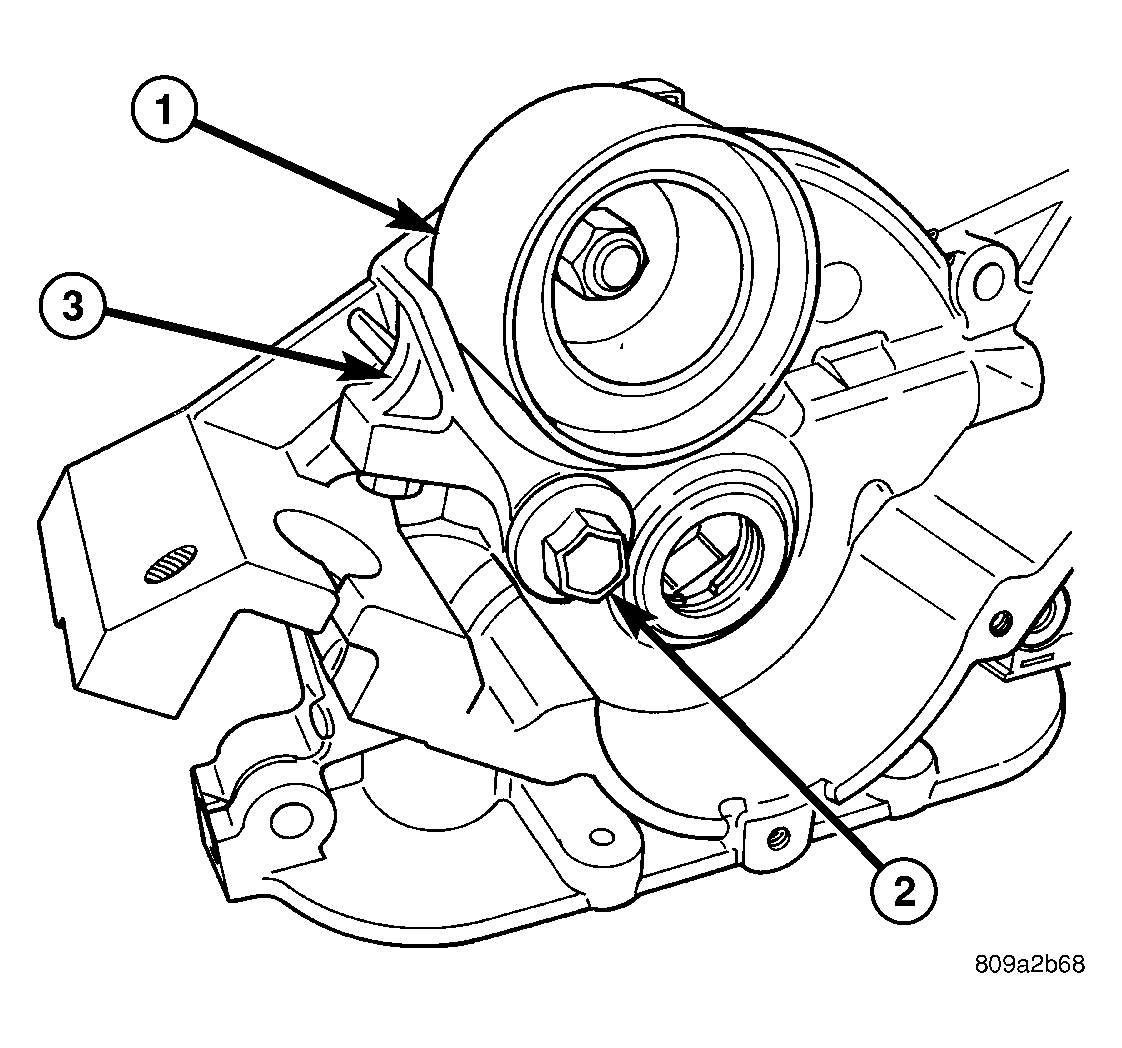

Fig 1: Removing/Installing Tensioner Pulley
GC0002014Courtesy of DAIMLERCHRYSLER CORP.
1 - TENSIONER PULLEY
2 - PIVOT BOLT
3 - TENSIONER BRACKET
  1. Install the timing belt tensioner pulley (1) assembly. Tighten the pivot bolt (2) to 61 N.m (45 ft. lbs.). See Fig 1.
  2. Install the timing belt. (Refer to ENGINE/VALVE TIMING/TIMING BELT AND SPROCKETS - INSTALLATION - TIMING BELT) .
