TENSIONER - Timing Belt & Pulley: Inspection: TENSIONER

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

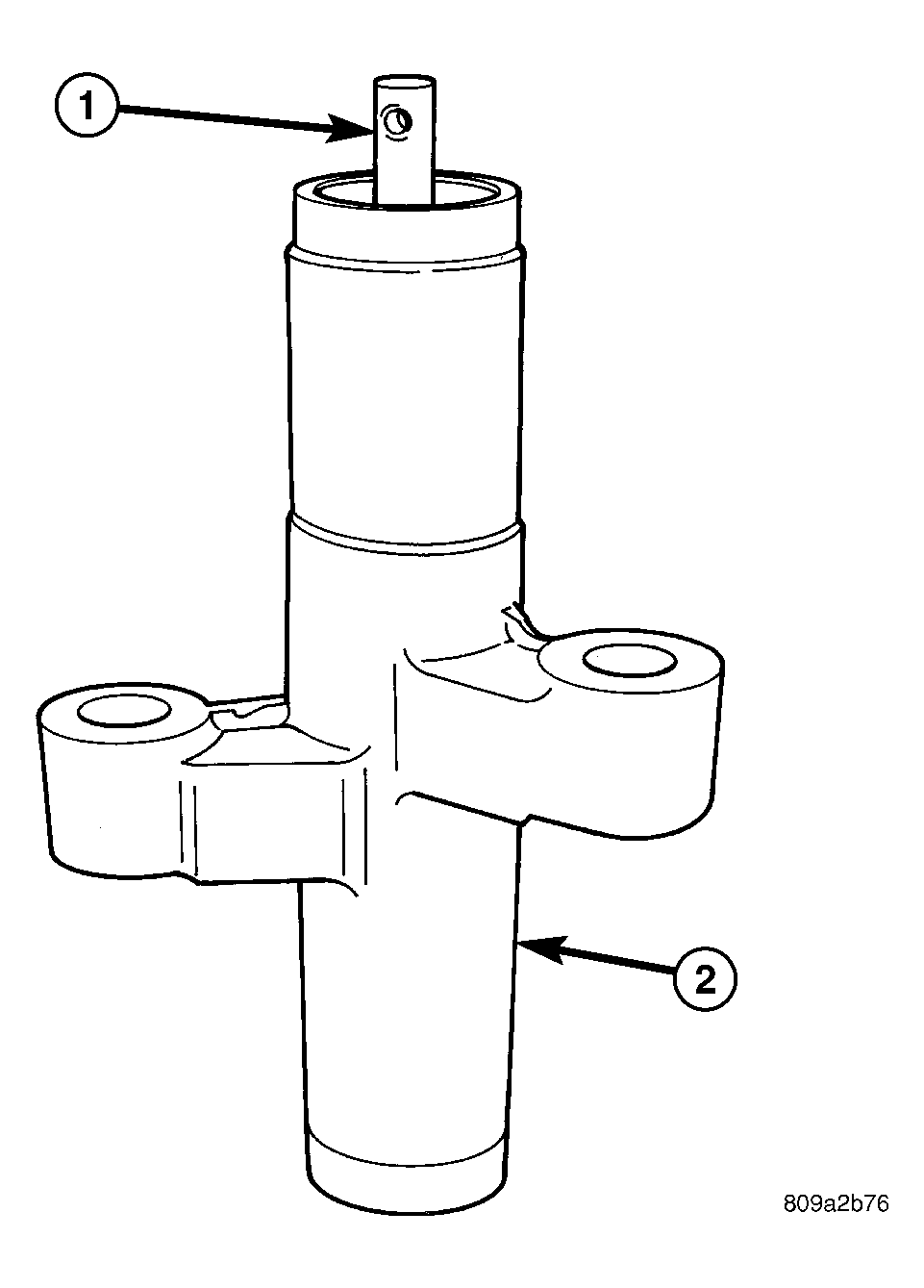

Fig 1: Timing Belt Tensioner
GC0002015Courtesy of DAIMLERCHRYSLER CORP.
1 - PLUNGER (EXTENDED POSITION)
2 - TENSIONER HOUSING
  1. Inspect hydraulic tensioner (2) for fluid loss around the plunger (1) seal. Replace tensioner if leaking. See Fig 1.
