Cylinder Head Off

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

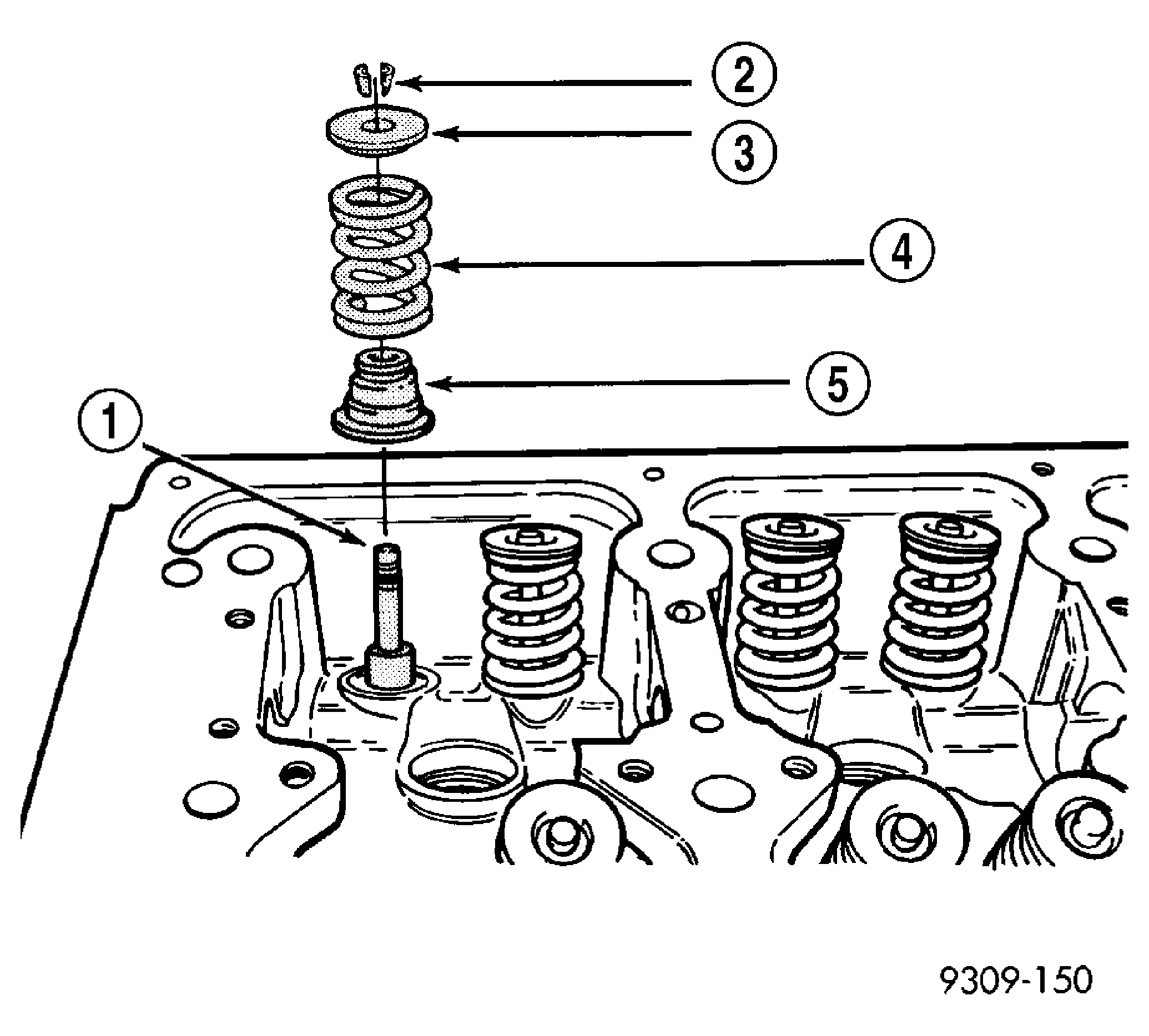

Fig 1: Valve Seal and Spring-Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - VALVE

2 - VALVE RETAINING LOCKS

3 - VALVE SPRING RETAINER

4 - VALVE SPRING

5 - VALVE SEAL AND VALVE SPRING SEAT ASSEMBLY

Install valves if removed.
Install valve stem seal/spring seat assembly (5) over valve guides on all valve stems. See Fig 1. Ensure that the garter spring is intact around the top of the rubber seal.

Place valve spring (color-coded end facing up) (4) and valve retainer into position.

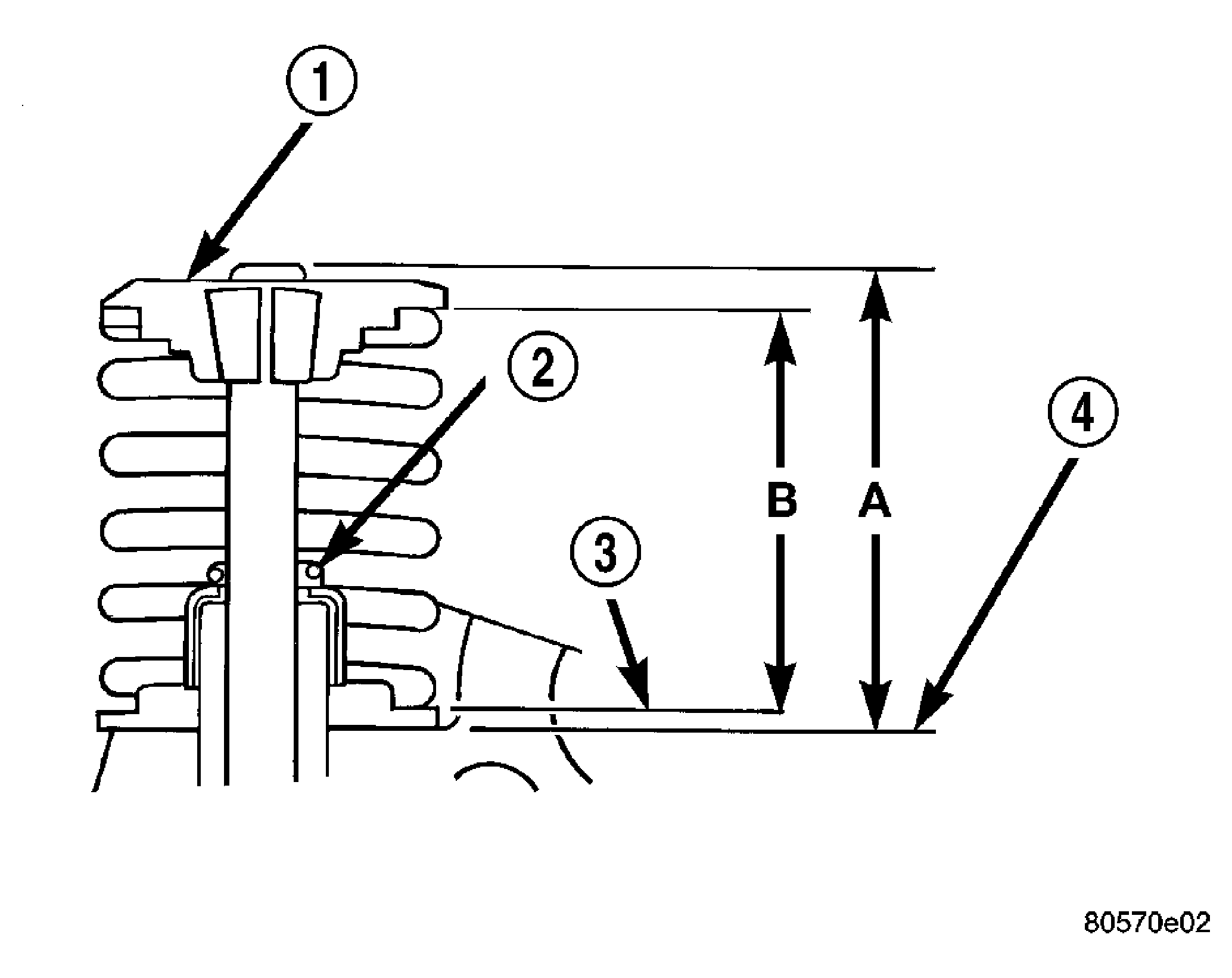

Fig 2: Checking Valve Tip Height and Valve Spring Installed Height

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPRING RETAINER

2 - GARTER SPRING

3 - VALVE SPRING SEAT TOP

4 - CYLINDER HEAD SURFACE

Compress valve spring with valve spring compressor. Install locks and release tool. If valve and/or seat are reground, measure the installed height of springs (B), make sure measurements are taken from top of spring seat to the bottom surface of spring retainer . If height is greater than 38.75 mm (1.5256 in.), install a 0.762 mm (0.030 in.) spacer in head counterbore under the valve spring seat to bring spring height back within specification. See Fig 2.
