Seal - Valve Stem: Removal
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

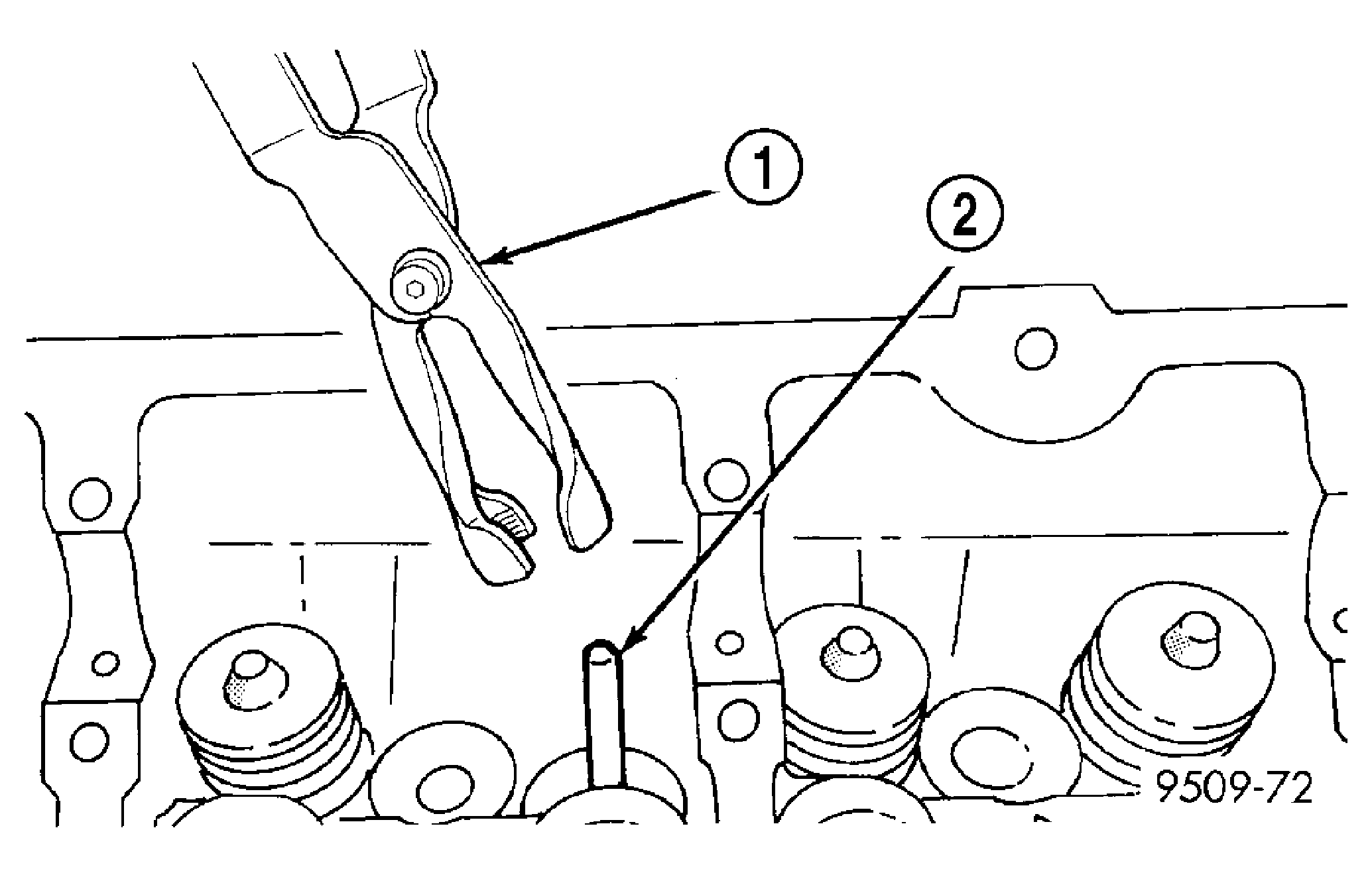

| 1 - VALVE SEAL TOOL |
| 2 - VALVE STEM |
- Remove valve spring. (Refer to ENGINE/CYLINDER HEAD/VALVE SPRINGS - REMOVAL) .
- Remove valve stem seals by using a valve stem seal tool. See Fig 1.
