Seal - Crankshaft Oil Front: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Crankshaft Sprocket Dowel Pin-Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - PIN PUNCH

2 - DOWEL

Remove the crankshaft sprocket. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL) .
Tap the dowel pin (2) out of the crankshaft. See Fig 1.

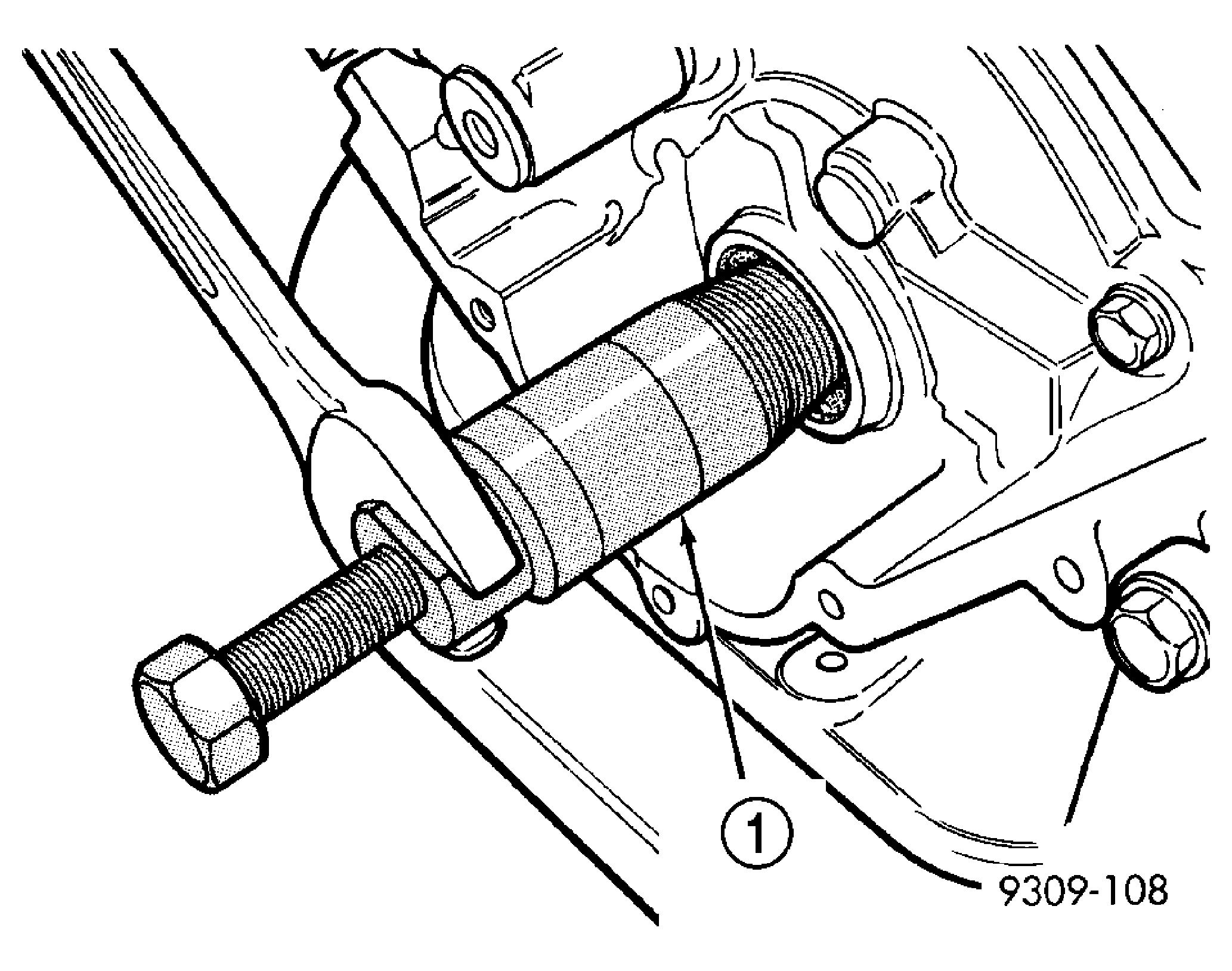

Fig 2: Crankshaft Oil Seal With Special Tool 6341A-Removal
Courtesy of DAIMLERCHRYSLER CORP.

1 - SPECIAL TOOL 6341A
Remove crankshaft seal using Tool 6341A (1). See Fig 2.
CAUTION: Do not nick shaft seal surface or seal bore.
Shaft seal lip surface must be free of varnish, dirt or nicks. Polish with 400 grit paper if necessary.
