Seal - Crankshaft Oil Front: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

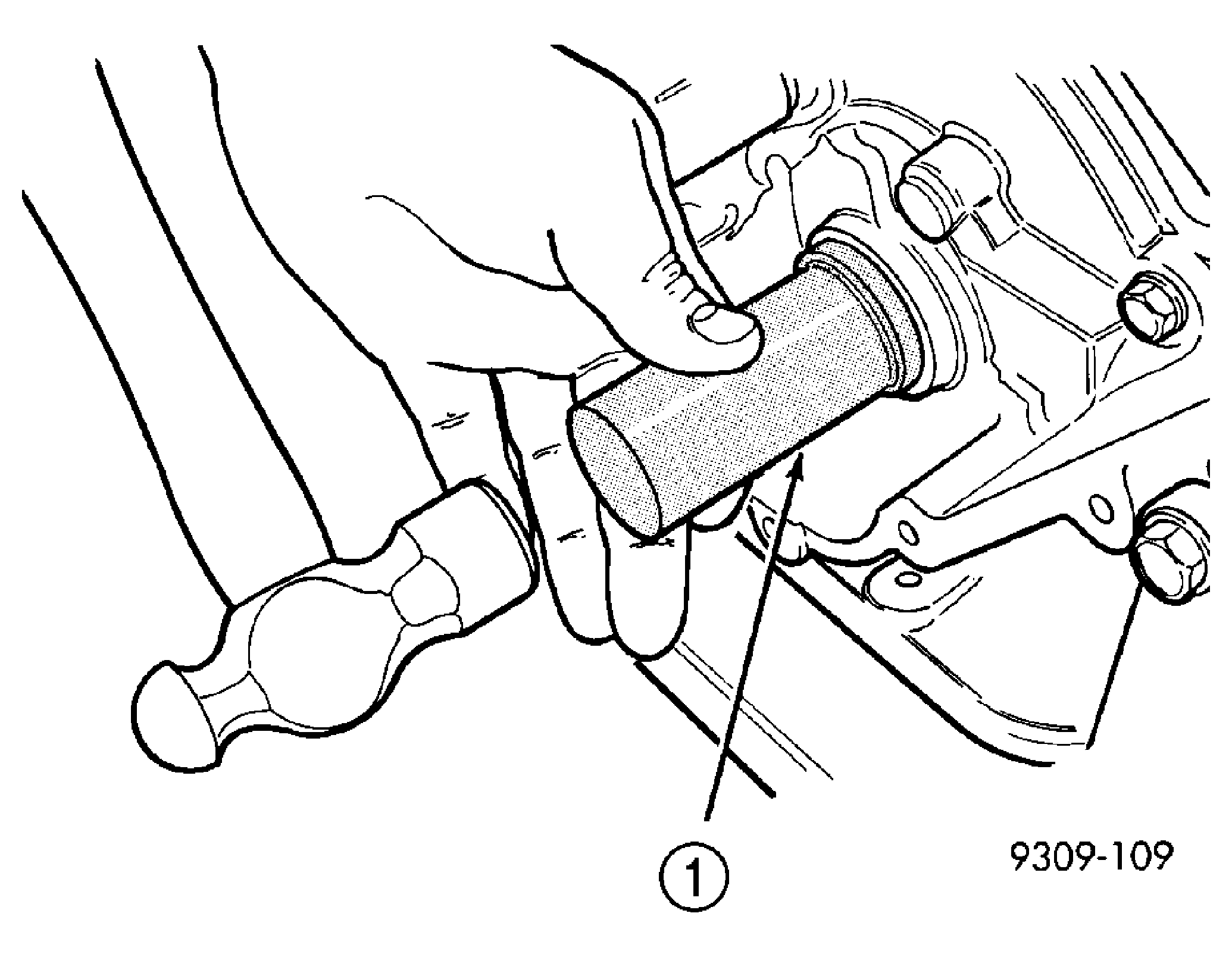

Fig 1: Crankshaft Oil Seal With Special Tool 6342 - Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPECIAL TOOL 6342

Install crankshaft seal using Special Tool 6342 (1). See Fig 1.
Install the dowel pin into the crankshaft to 1.2 mm (0.047 in.) protrusion.
Install the crankshaft sprocket. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION.) .
