Rocker Arm Shaft/Rocker Arm/Lash Adjuster: Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

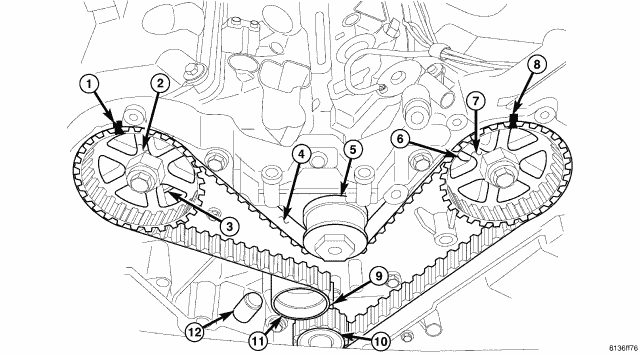

| 1 - RIGHT CAMSHAFT GEAR ALIGNMENT MARK | 7 - LEFT CAMSHAFT GEAR |
| 2 - RIGHT CAMSHAFT GEAR | 8 - LEFT CAMSHAFT GEAR ALIGNMENT MARK |
| 3 - CYLINDER HEAD TO INNER TIMING BELT COVER BOLTS - RIGHT | 9 - CRANKSHAFT GEAR ALIGNMENT MARK |
| 4 - TIMING BELT | 10 - CRANKSHAFT GEAR |
| 5 - WATER PUMP PULLEY | 11 - TIMING BELT TENSIONER PULLEY |
| 6 - CYLINDER HEAD TO INNER TIMING BELT COVER BOLTS - LEFT | 12 - TIMING BELT TENSIONER |
NOTE:
Rocker arm and shaft assembly can be installed either prior to or after (preferred) cylinder head installation.
- Rotate camshaft gears to the position shown in (1, 8, 9). See Fig 1. With the camshaft gears in these positions the lobes are in a neutral position (no load to the valve). This will allow the rocker arm shaft assembly to be tightened into position with little or no valve spring load on it.
- Install the rocker arm and shaft assembly making sure that the identification marks face toward the front of engine for left head and toward the rear of the engine for right head.

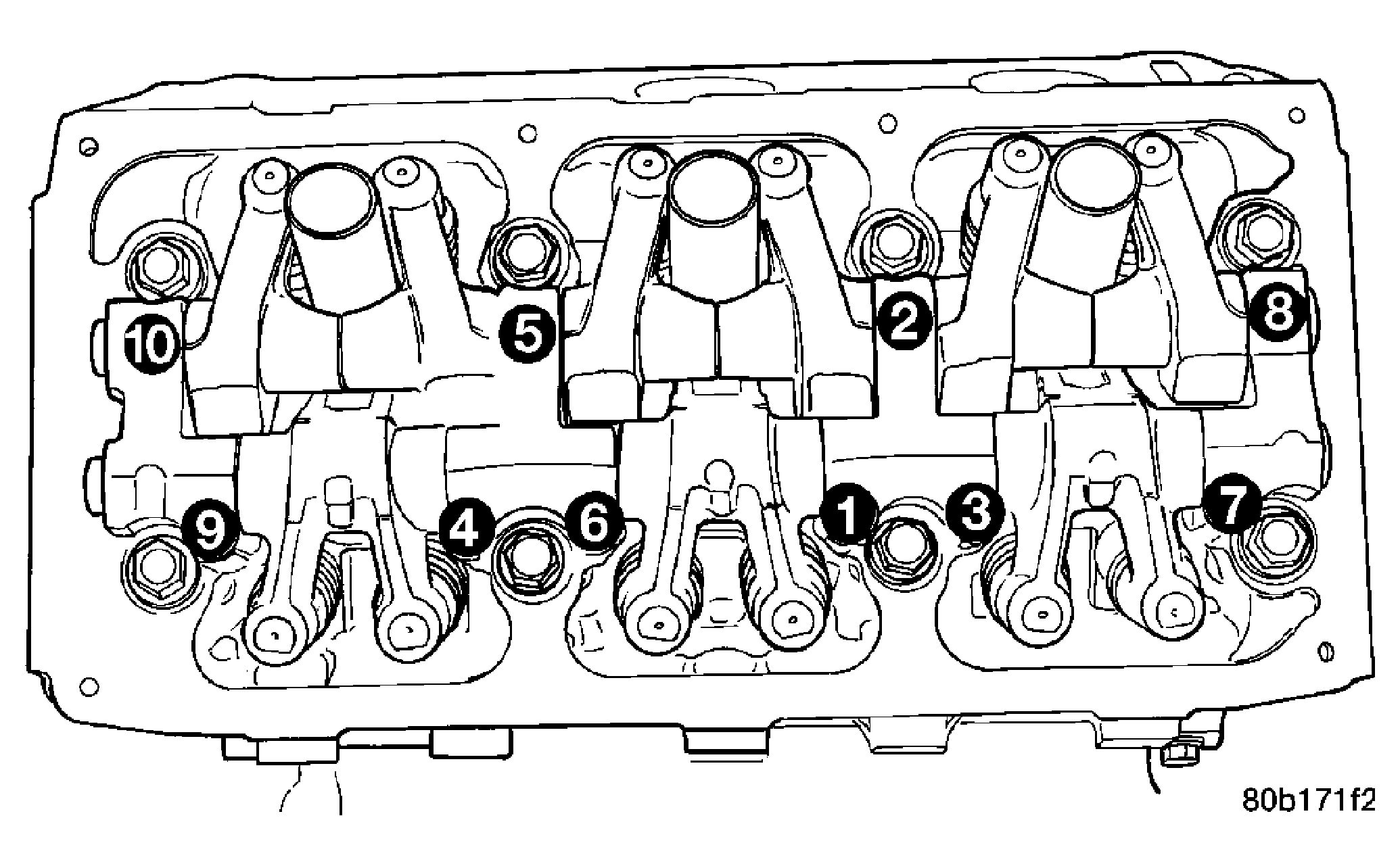

- Tighten rocker arm/shaft assembly bolts in sequence to 31 N.m (275 in. lbs.). See Fig 2.
- Install cylinder head covers. Refer to appropriate cylinder head cover installation procedure.
