Rocker Arm

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

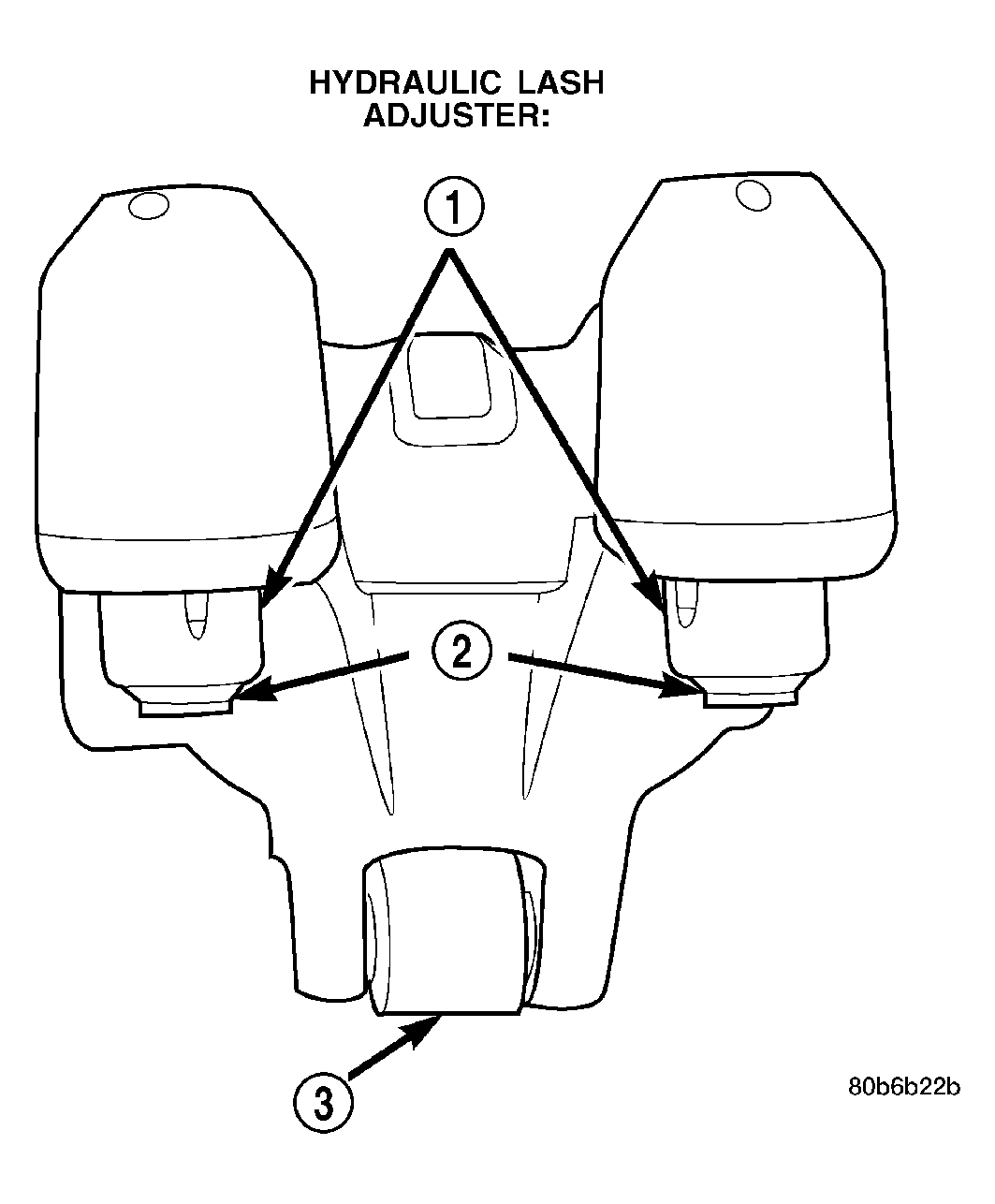

Fig 1: Rocker Arm Assembly

Courtesy of DAIMLERCHRYSLER CORP.

1 - RETAINER

2 - SWIVEL PAD

3 - ROLLER

Rocker arms are made of light weight permanent mold aluminum alloy with a roller (3) type follower operating against the camshaft. See Fig 1. The valve actuating end of the rocker arms are machined to retain hydraulic lash adjusters, eliminating the need for manual valve lash adjustment.
