Piston Ring Fitting

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

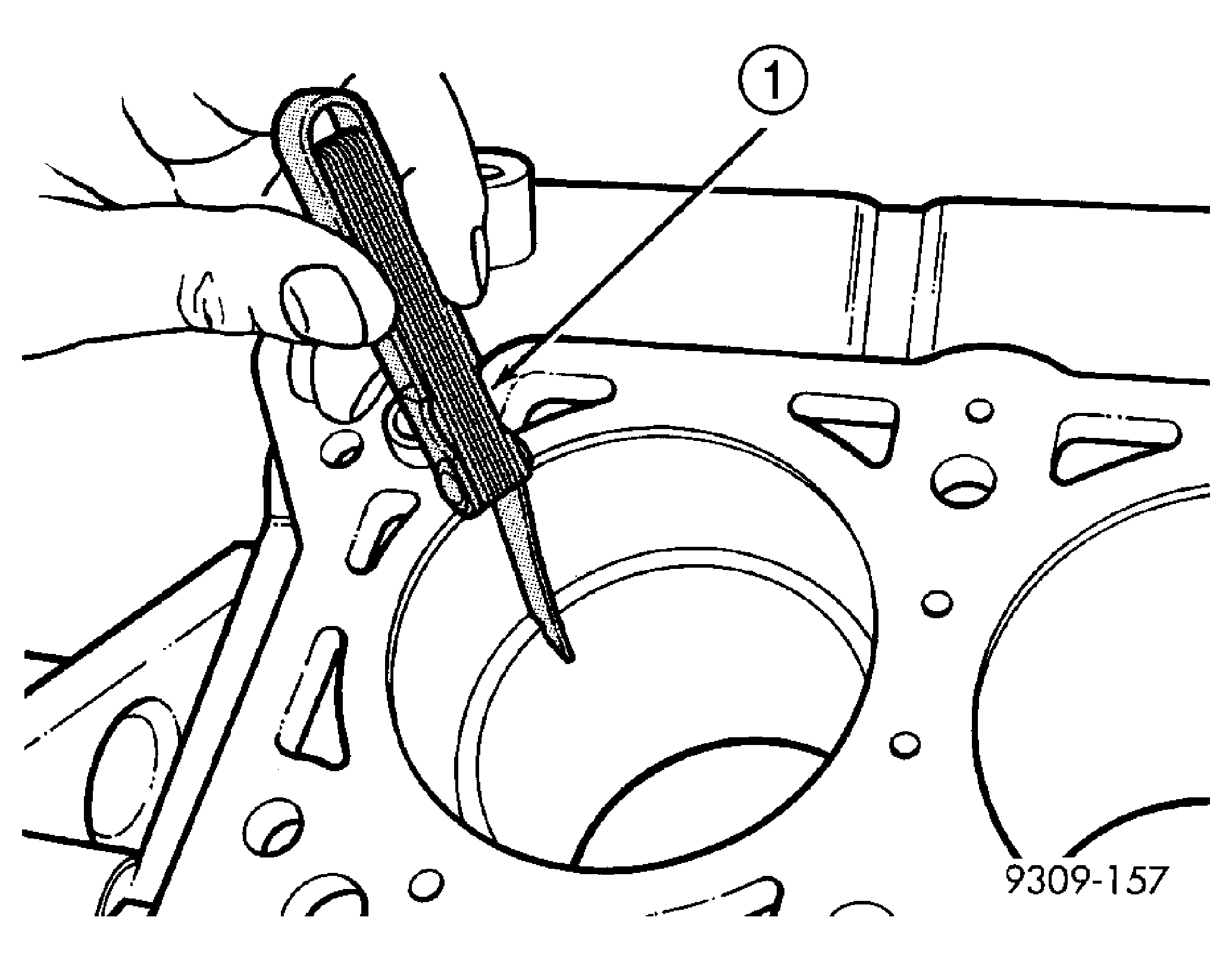

Fig 1: Check Gap On Piston Rings
GC0001921Courtesy of DAIMLERCHRYSLER CORP.
1 - FEELER GAUGE
  1. Wipe cylinder bore clean. Insert ring and push down with piston to ensure it is square in bore. The ring gap measurement must be made with the ring positioning at least 12 mm (0.50 in.) from bottom of cylinder bore. Check gap with feeler gauge. See Fig 1. For clearance specifications, (Refer to ENGINE - SPECIFICATIONS) .

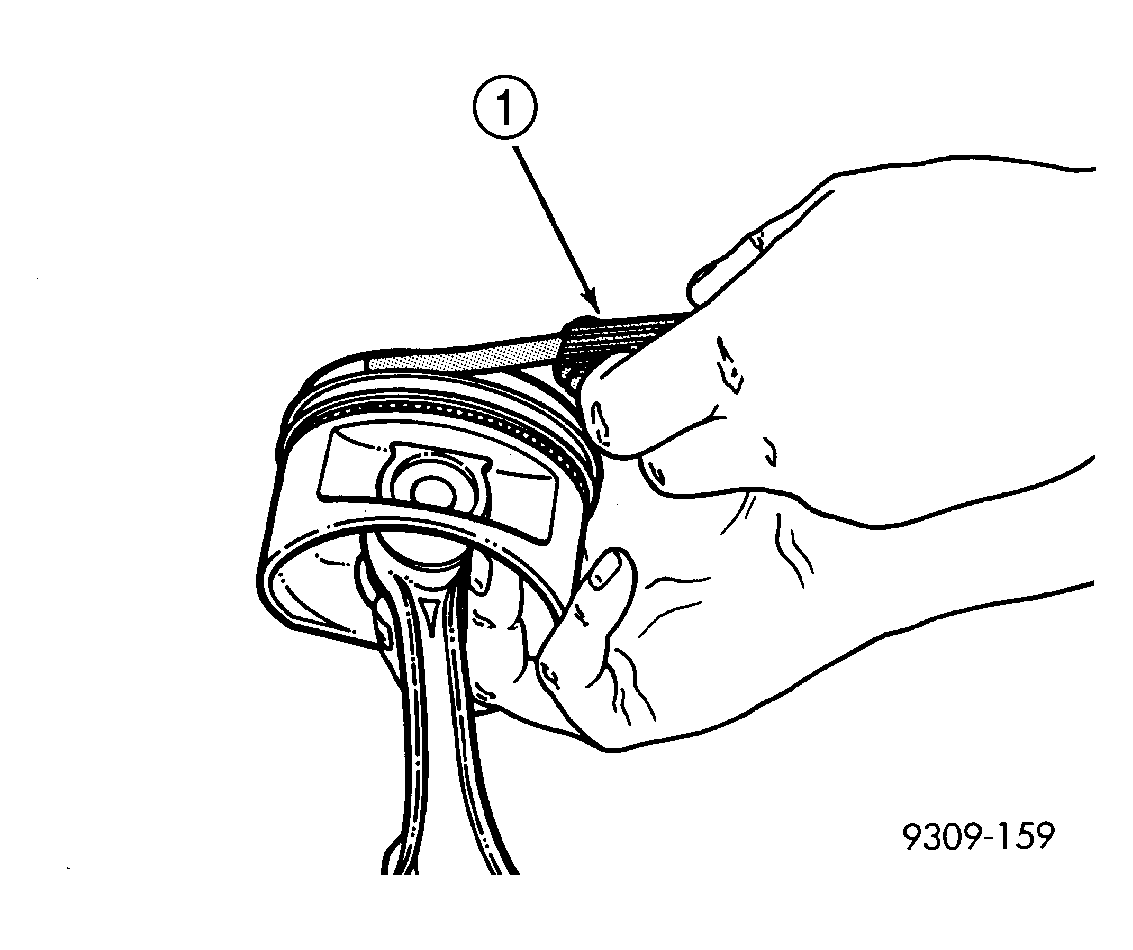

    Fig 2: Measuring Piston Ring Side Clearance
    GC0001920Courtesy of DAIMLERCHRYSLER CORP.
    1 - FEELER GAUGE
  2. Check piston ring to groove clearance. See Fig 2. For clearance specifications, (Refer to ENGINE - SPECIFICATIONS) .
