Pump - Oil: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

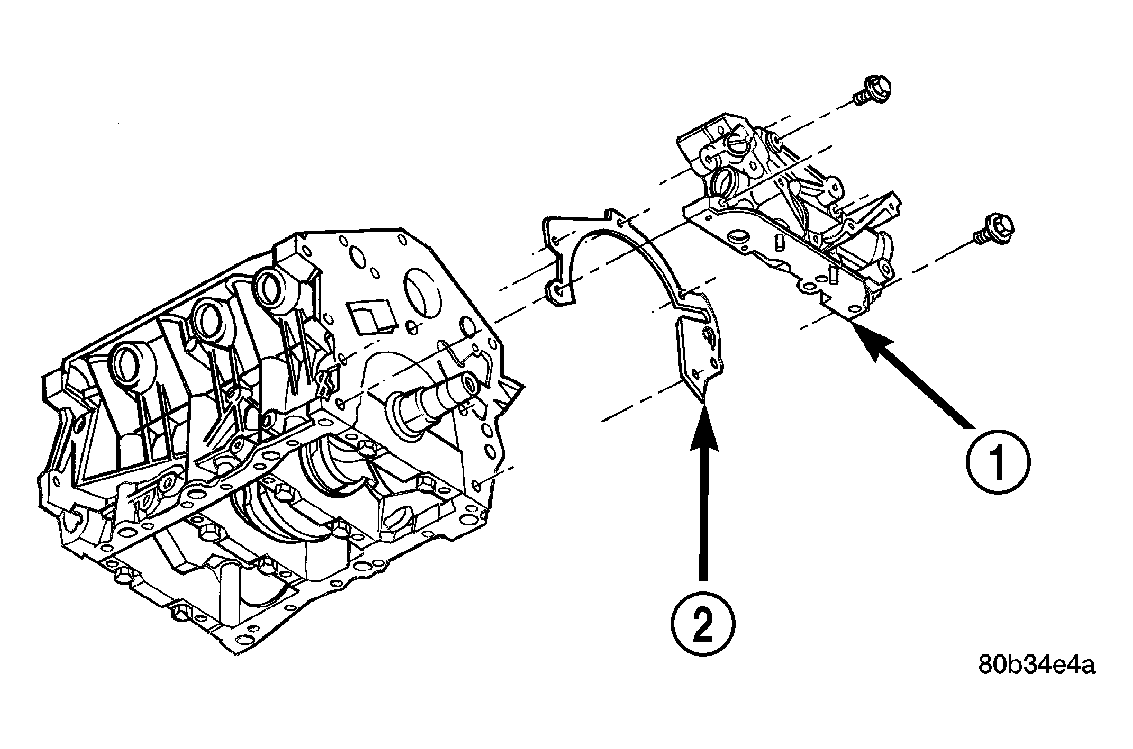

Fig 1: Locating Oil Pump

Courtesy of DAIMLERCHRYSLER CORP.

1 - OIL PUMP

2 - GASKET

Drain the cooling system. (Refer to COOLING - STANDARD PROCEDURE) .
Remove the timing belt. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL) .
Remove the crankshaft sprocket. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL) .

Remove the oil pan. (Refer to ENGINE/LUBRICATION/OIL PAN - REMOVAL) .

Fig 2: Windage Tray and Oil Pick up Tube

Courtesy of DAIMLERCHRYSLER CORP.

1 - OIL PICK UP TUBE WITH STRAINER

2 - BOLT

3 - O-RING

4 - OIL PUMP

5 - WINDAGE TRAY

Remove the oil pickup tube. See Fig 2.

Fig 3: Oil Pump and Crankshaft Gear

Courtesy of DAIMLERCHRYSLER CORP.

1 - CRANKSHAFT

2 - DOWEL

3 - GASKET

4 - OIL PUMP

5 - FRONT CRANKSHAFT SEAL

6 - CRANKSHAFT GEAR

7 - PIN

Remove the oil pump fasteners. Remove the oil pump and gasket from engine. See Fig 3.
