Plate - Flex: Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.

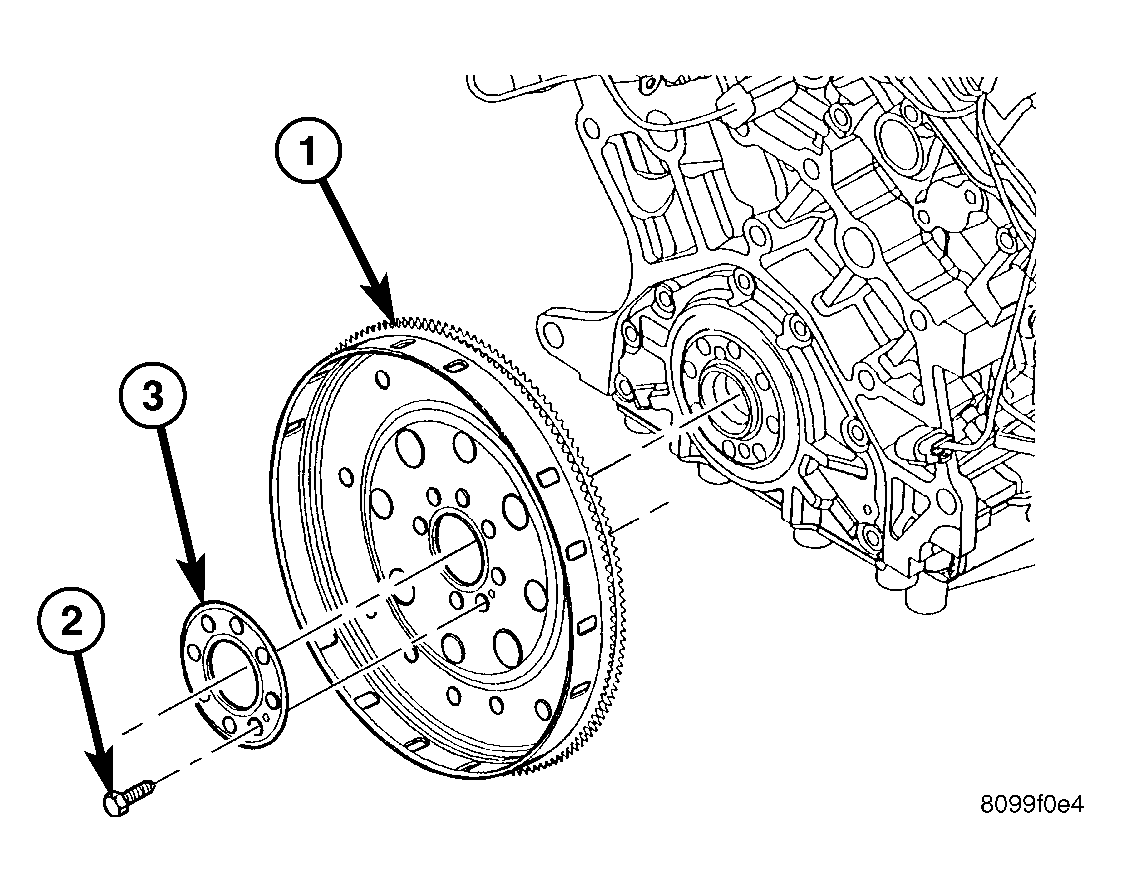

| 1 - FLEX PLATE |
| 2 - BOLT (QTY. 8) |
| 3 - BACKING PLATE |
- Position flex plate (1) with backing plate (3) on the crankshaft. See Fig 1.
- Apply Mopar® Lock & Seal Adhesive to the flex plate bolts (2).
- Install flex plate bolts (2). See Fig 1. Tighten bolts to 95 N.m (70 ft. lbs.).
- Install the transmission.
