Mount - Rear: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

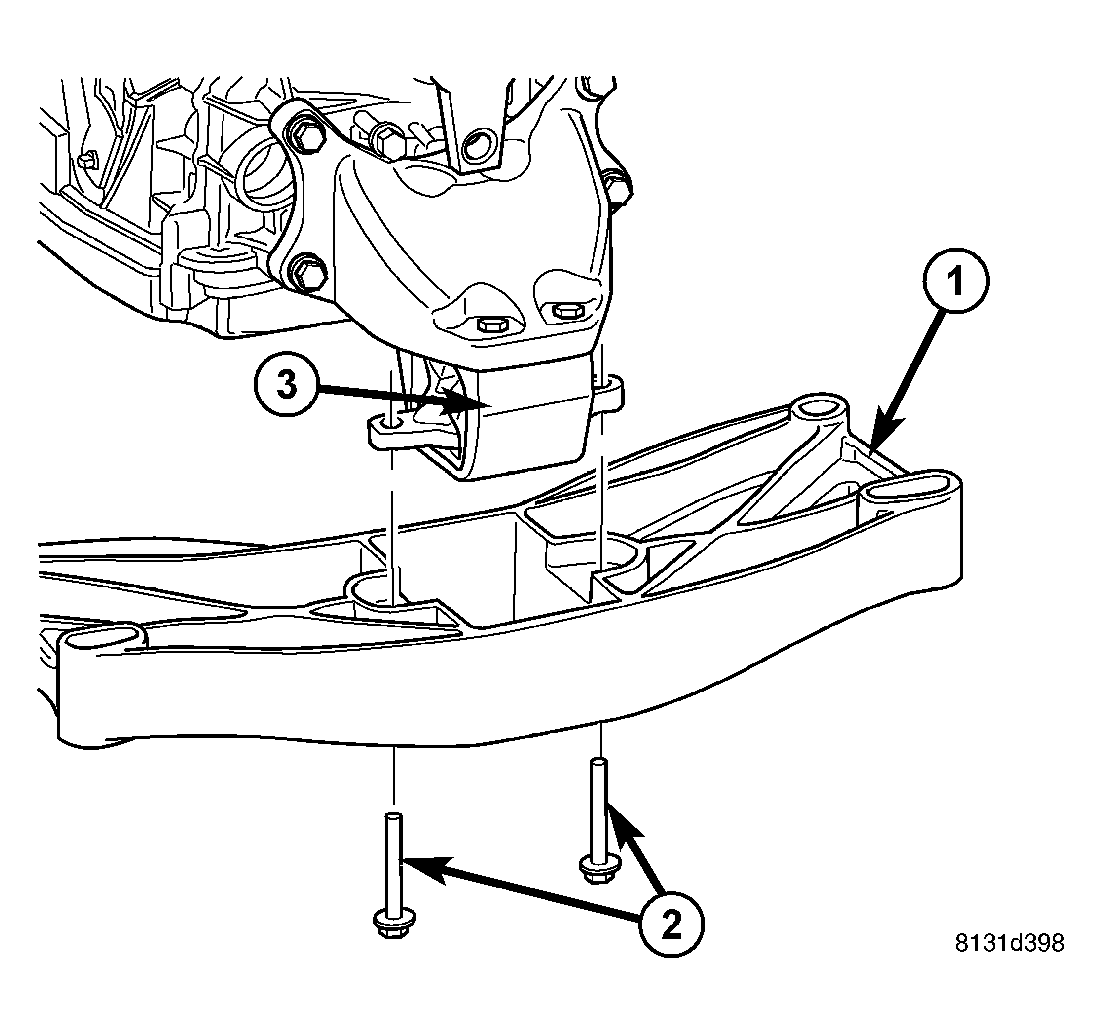

Fig 1: Remove Trans Cross Member Bolts
GC0015434Courtesy of DAIMLERCHRYSLER CORP.
  1. Raise vehicle on hoist.
  2. Remove cross member to mount bolts (2).
  3. Place transmission jack under transmission pan and raise transmission.
  4. Remove cross member attaching bolts and remove cross member (1).

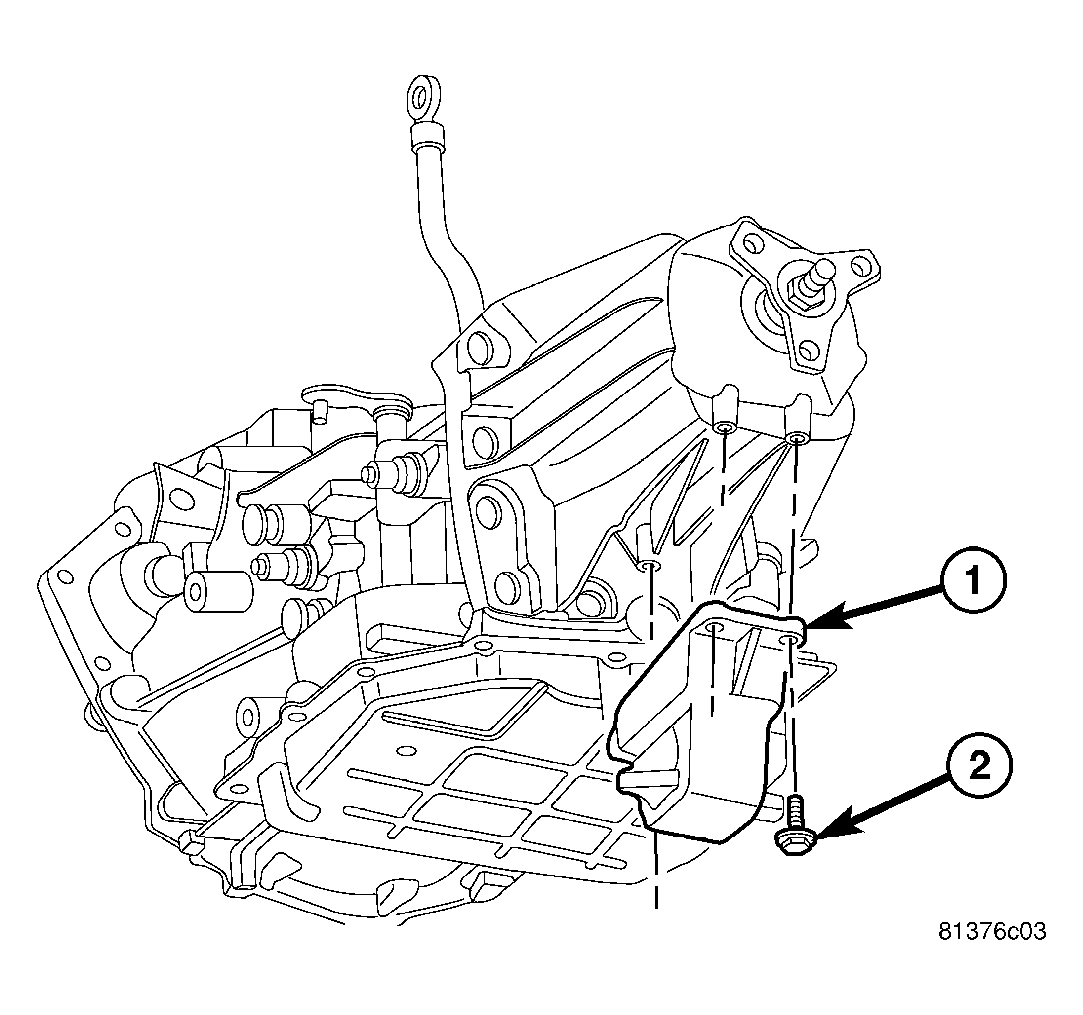

    Fig 2: Remove Trans Mount Bolts
    GC0015433Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove mount to transmission bolts (2), remove mount (1).
