Cover Cylinder Head - Right: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

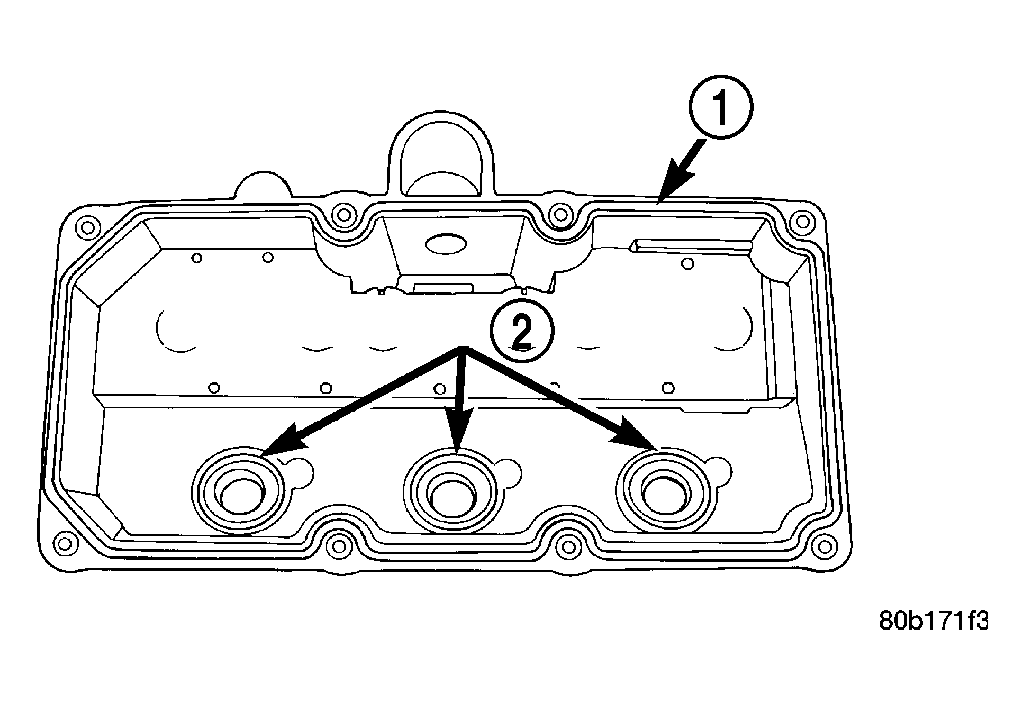

Fig 1: Cylinder Head Cover Gasket and Spark Plug Tube Seals

Courtesy of DAIMLERCHRYSLER CORP.

1 - CYLINDER HEAD COVER GASKET

2 - SPARK PLUG TUBE SEALS

Clean cylinder head and cover mating surfaces. Inspect and replace gasket (1) and seals (2) as necessary. See Fig 1.

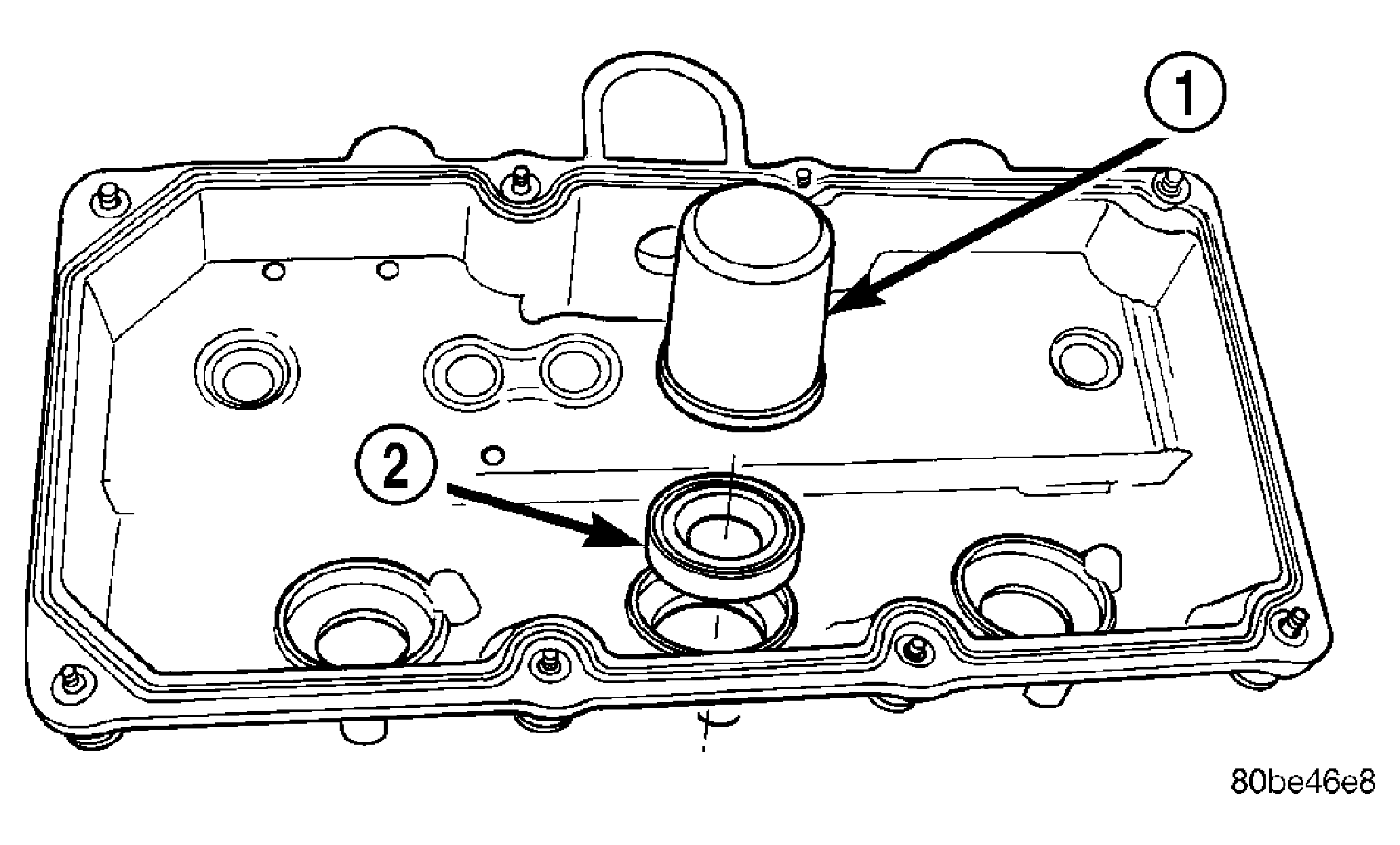

Fig 2: Spark Plug Tube Seal Installation
Courtesy of DAIMLERCHRYSLER CORP.

1 - SPECIAL TOOL MD-998306

2 - SPARK PLUG TUBE SEAL

To replace spark plug tube seals (2):

Using a suitable pry tool, carefully remove tube seals (2).
Position new seal (2) with the part number on seal facing cylinder head cover.
Install seals using MD-99830 (1). See Fig 2.

Fig 3: Ignition Coils - Right Cylinder Head

Courtesy of DAIMLERCHRYSLER CORP.

1 - FUEL RAIL

2 - IGNITION COIL

3 - CAPACITOR

4 - ENGINE WIRING HARNESS

Install cylinder head cover bolts and tighten to 12 N.m (105 in. lbs.).
Install the ground strap retaining bolt (3) to the cylinder head cover.
Install the wire harness track (4).
Install the ignition coils (2). Tighten mounting screws to 6.7 N.m (60 in. lbs.). See Fig 3.
Connect the ignition coil electrical connectors (2). See Fig 3.
Install upper intake manifold. (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION) .
Connect negative battery cable
