Section 16 (3.5L Engine (Service Information)): Camshaft(S): Installation: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

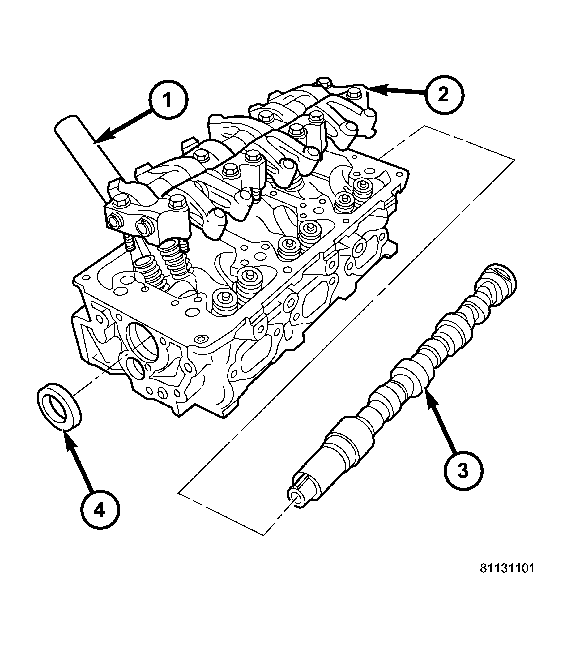

Fig 1: Cylinder Head, Camshaft And Rocker Arm

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPARK PLUG TUBE

2 - ROCKER ARM ASSEMBLY

3 - CAMSHAFT

4 - SEAL

NOTE: Care must be taken not to scrape or nick the camshaft journals when installing the camshaft into position.

Lubricate camshaft (3) bearing journals, camshaft lobes and camshaft seal (4) with clean engine oil and install camshaft (3) into cylinder head. See Fig 1.
Install the cylinder head. (Refer to ENGINE/CYLINDER HEAD - INSTALLATION) .
