Bearing - Crankshaft Main: Removal

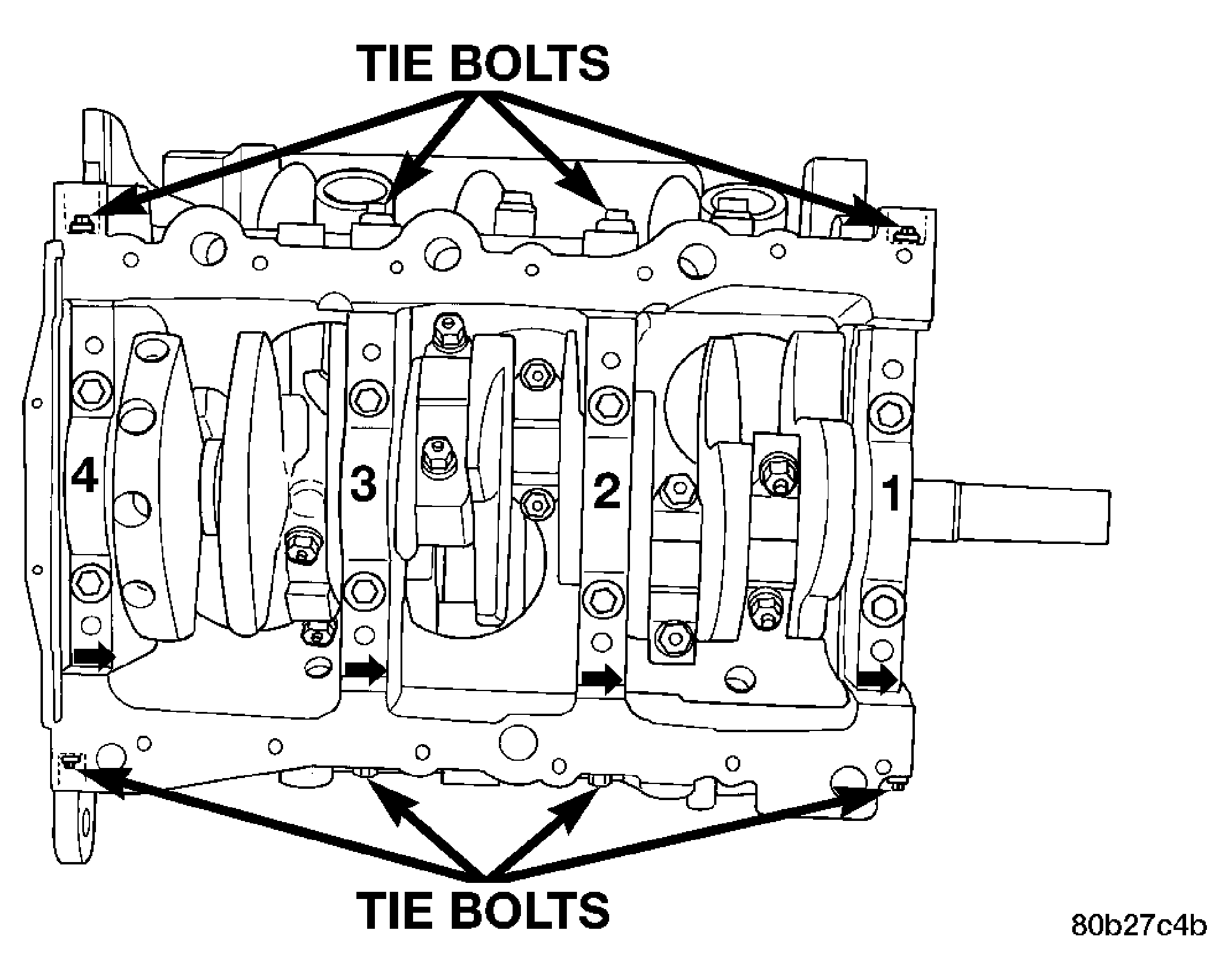

Fig 1: Main Bearing Cap Identification

Courtesy of DAIMLERCHRYSLER CORP.

Bearing caps are not interchangeable and are marked to insure correct assembly. See Fig 1. Upper and lower bearing halves are NOT interchangeable.

1. Remove oil pan. (Refer to ENGINE/LUBRICATION/OIL PAN - REMOVAL) .
2. Remove oil pick-up tube and windage tray.
3. Identify bearing caps before removal. See Fig 1.
   Fig 2: Removing and Installing Upper Main Bearing With Special Tool C- 3059

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - SPECIAL TOOL C-3059

   2 - BEARING

   3 - SPECIAL TOOL C-3059

   4 - BEARING

4. Remove bearing caps one at a time. Remove upper half of bearing by inserting Main Bearing Tool C-3059 into the oil hole of crankshaft. See Fig 2.
5. Slowly rotate crankshaft clockwise, forcing out upper half of bearing shell.
