3.5L - Service Information: Description: 3.5L

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

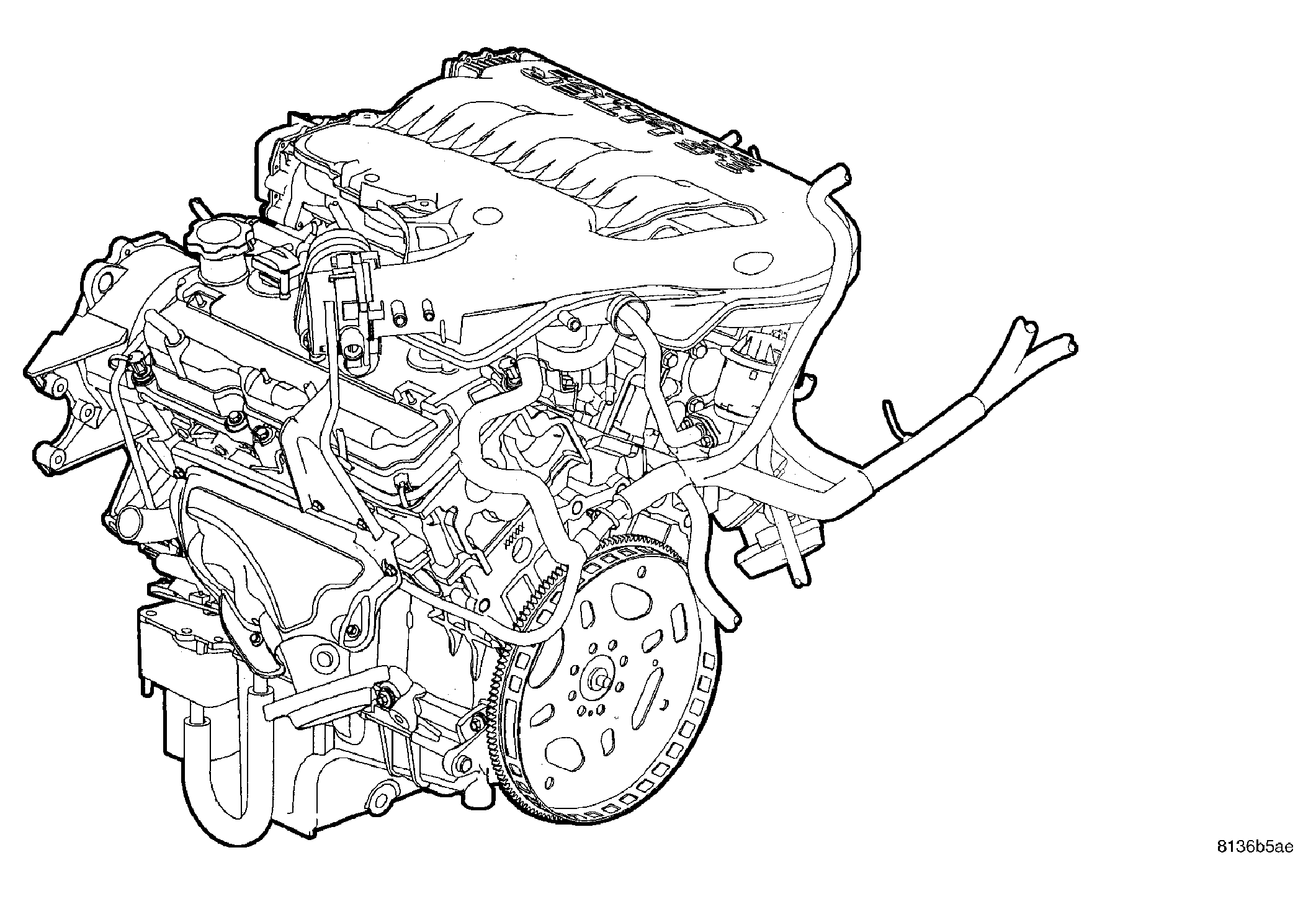

Fig 1: 3.5L Engine

Courtesy of DAIMLERCHRYSLER CORP.

The 3.5 Liter (214 Cubic Inches) 60°V-6 engine is a single overhead camshaft design with hydraulic lifters and four valves per cylinder The engine does not have provisions for a free wheeling valve train. See Fig 1.

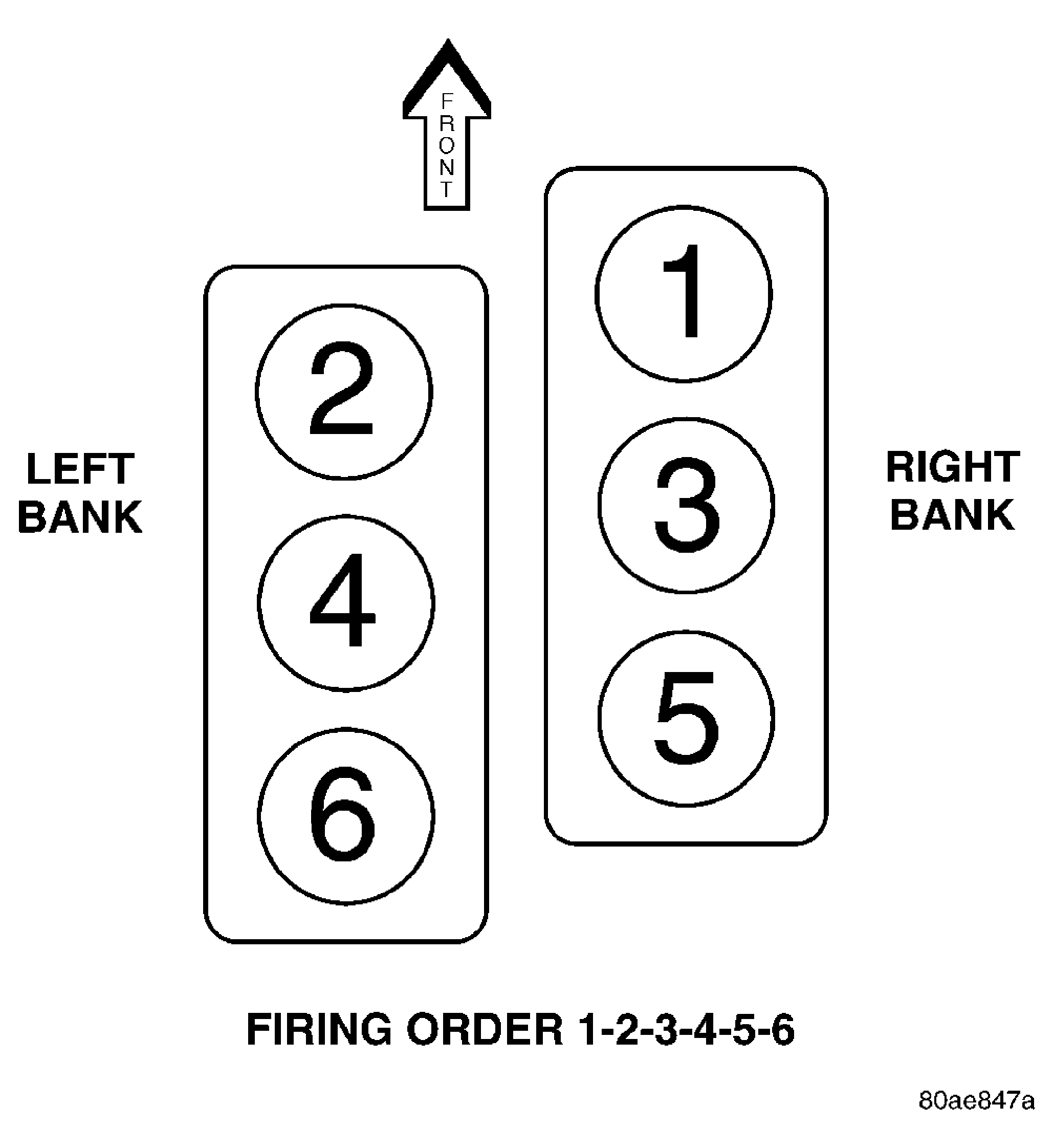

Fig 2: Cylinder Numbering and Firing Order

Courtesy of DAIMLERCHRYSLER CORP.

The cylinders are numbered from front to rear, with the right bank odd numbered and the left bank even numbered The firing order is 1-2-3-4-5-6. See Fig 2.

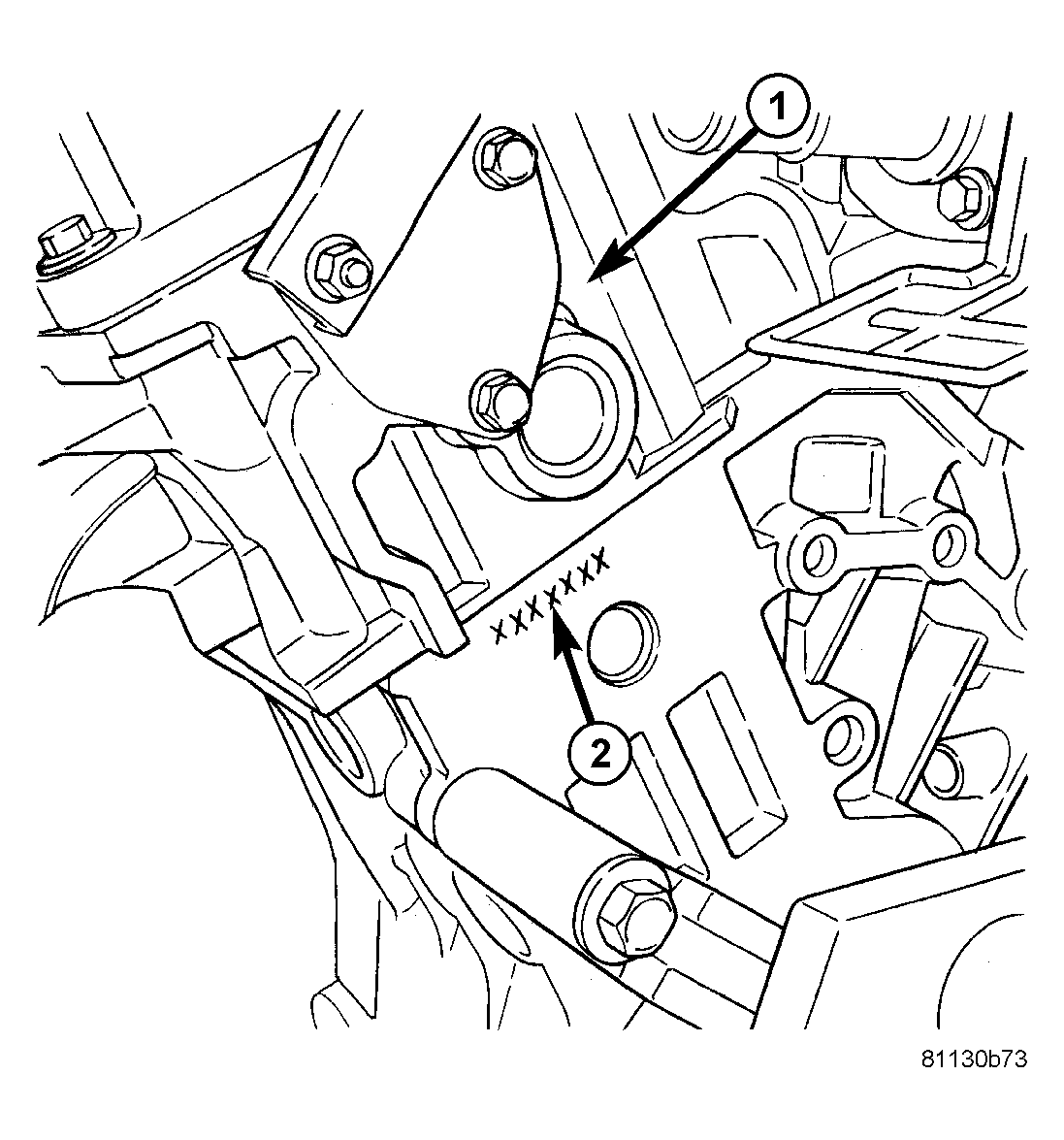

Fig 3: Engine Identification

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR OF LEFT CYLINDER HEAD

2 - ENGINE IDENTIFICATION NUMBER

The engine identification number (2) is located on the rear of engine block just below the left cylinder head (1). See Fig 3.
