Description-Gas Engines
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

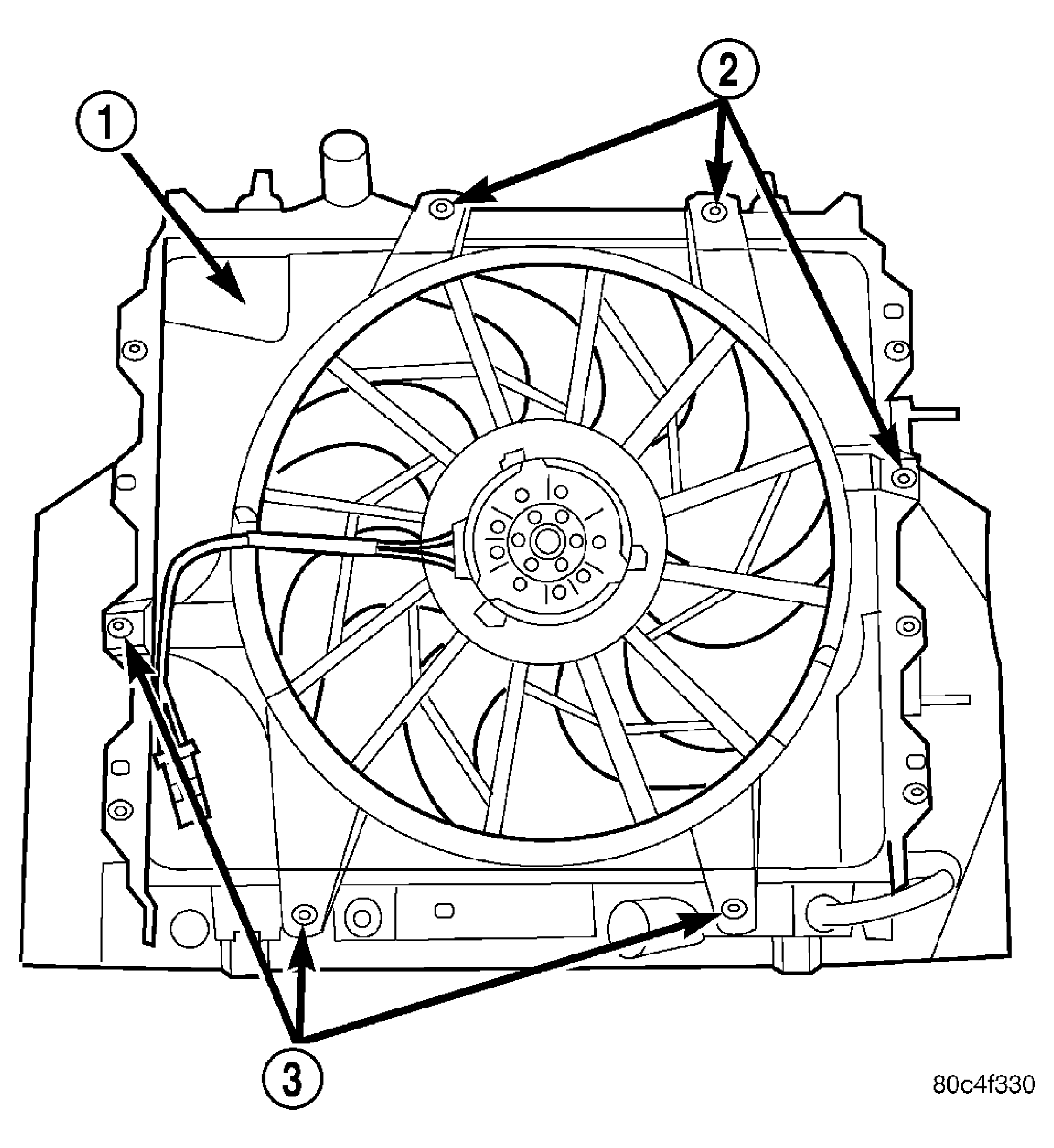

Courtesy of CHRYSLER LLC
| 1 - RADIATOR FAN SHROUD |
| 2 - SCREWS |
| 3 - SCREWS |
The radiator cooling fan is a dual-speed electric motor driven fan. The radiator fan assembly includes an electric motor, fan blade, and a support shroud (1) that is attached to the radiator. The radiator fan is serviced as an assembly.
