Non - Turbo

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

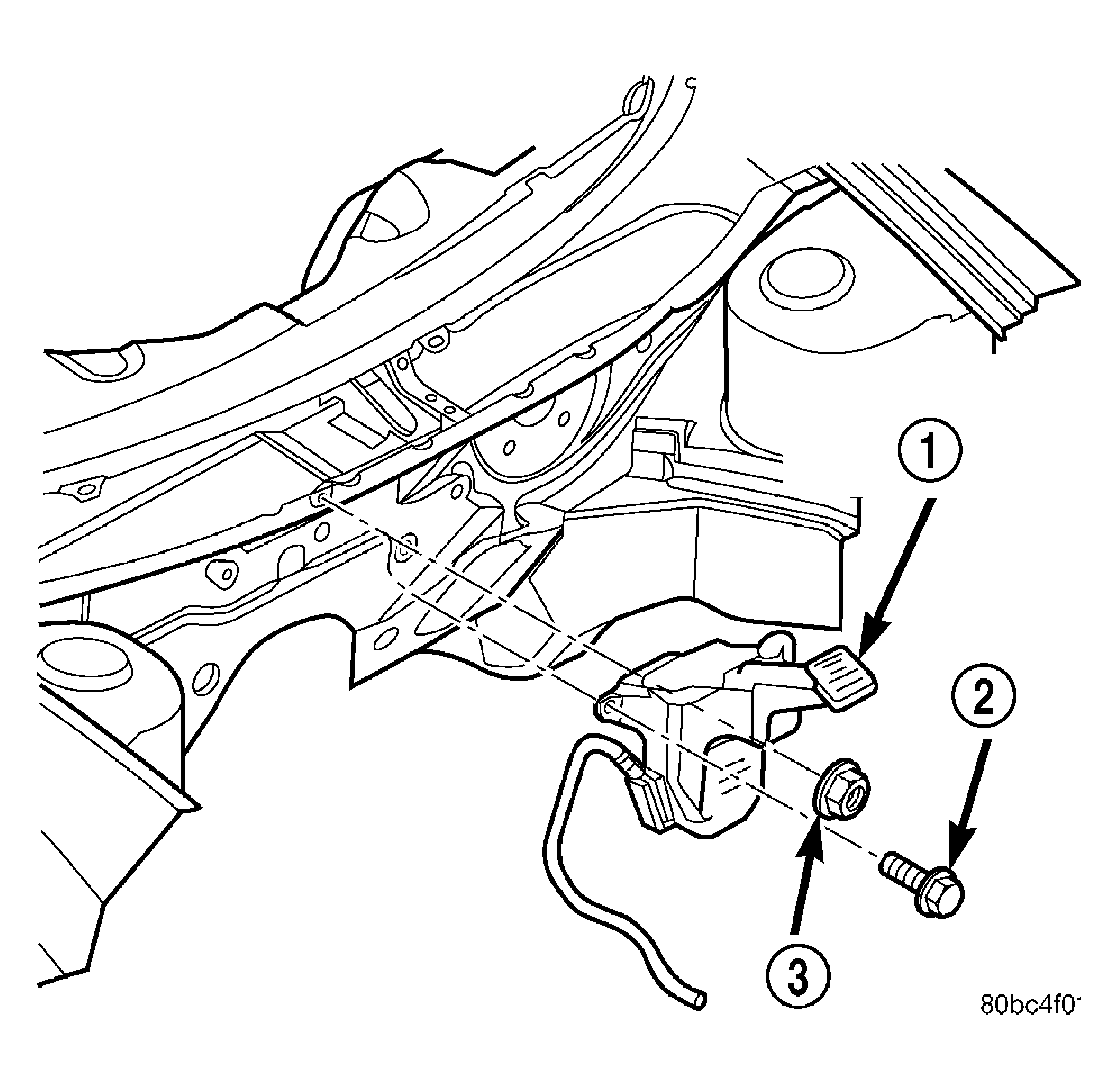

Fig 1: Coolant Recovery Container
GC0019849Courtesy of CHRYSLER LLC
1 - COOLANT RECOVERY CONTAINER
2 - SCREW
3 - NUT
  1. Install coolant recovery container (1) and tighten fasteners to 4 N.m (35 in. lbs.).
  2. To ensure proper vent hose routing, install vent hose clip on stud at dash panel.
    Fig 2: Overflow Hose Routing
    GC0021841Courtesy of CHRYSLER LLC
    1 - PRESSURE CAP
    2 - OVERFLOW HOSE
    3 - COOLANT RECOVERY CONTAINER
  3. Connect the MAP sensor connector.
  4. Position and install the power steering fluid reservoir bracket fasteners.
  5. Connect overflow hose (2) to coolant outlet connector.
  6. Fill container to proper level.
