Clutch Interlock/UPSTOP Switch - RHD
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

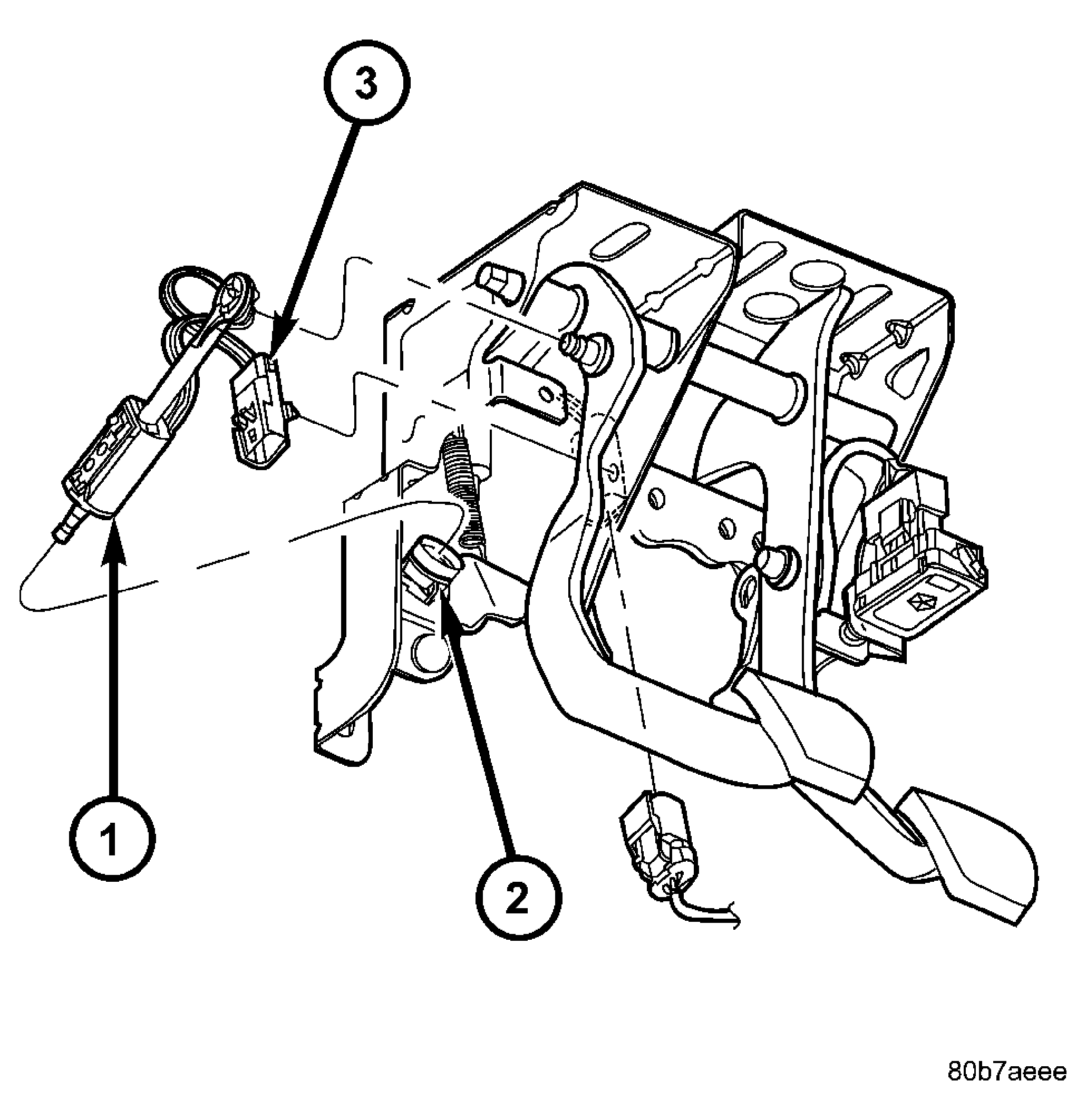

| 1 - INTERLOCK/UPSTOP SWITCH |
| 2 - CLUTCH MASTER CYLINDER |
| 3 - CONNECTOR |
NOTE:
Proper switch harness routing is critical to switch durability. Note the harness routing and location of fasteners intended to keep wires from contacting pedals.
- Install the clutch interlock/upstop switch (1) onto the master cylinder push rod, making sure that the push rod is oriented with the push rod retainer toward the wiring of the switch. The master cylinder push rod must be snapped into the clutch interlock/upstop switch along the smaller diameter of the push rod between the snap ring and the transition to the larger diameter. See Fig 1.CAUTION: Improper assembly of the larger diameter of the push rod into the clutch interlock/upstop switch could cause damage to the switch or a clutch system failure.
- Install the switch cover plate.CAUTION: Inspect the plastic push rod retainer for damage. If it is damaged (broken/cracked), it MUST be replaced.
- Connect clutch master cylinder pushrod to the clutch pedal pin.
- Route the wiring harness as it was prior to removal.
- Secure the switch connector retaining push pin into the appropriate hole in the pedal bracket assembly.

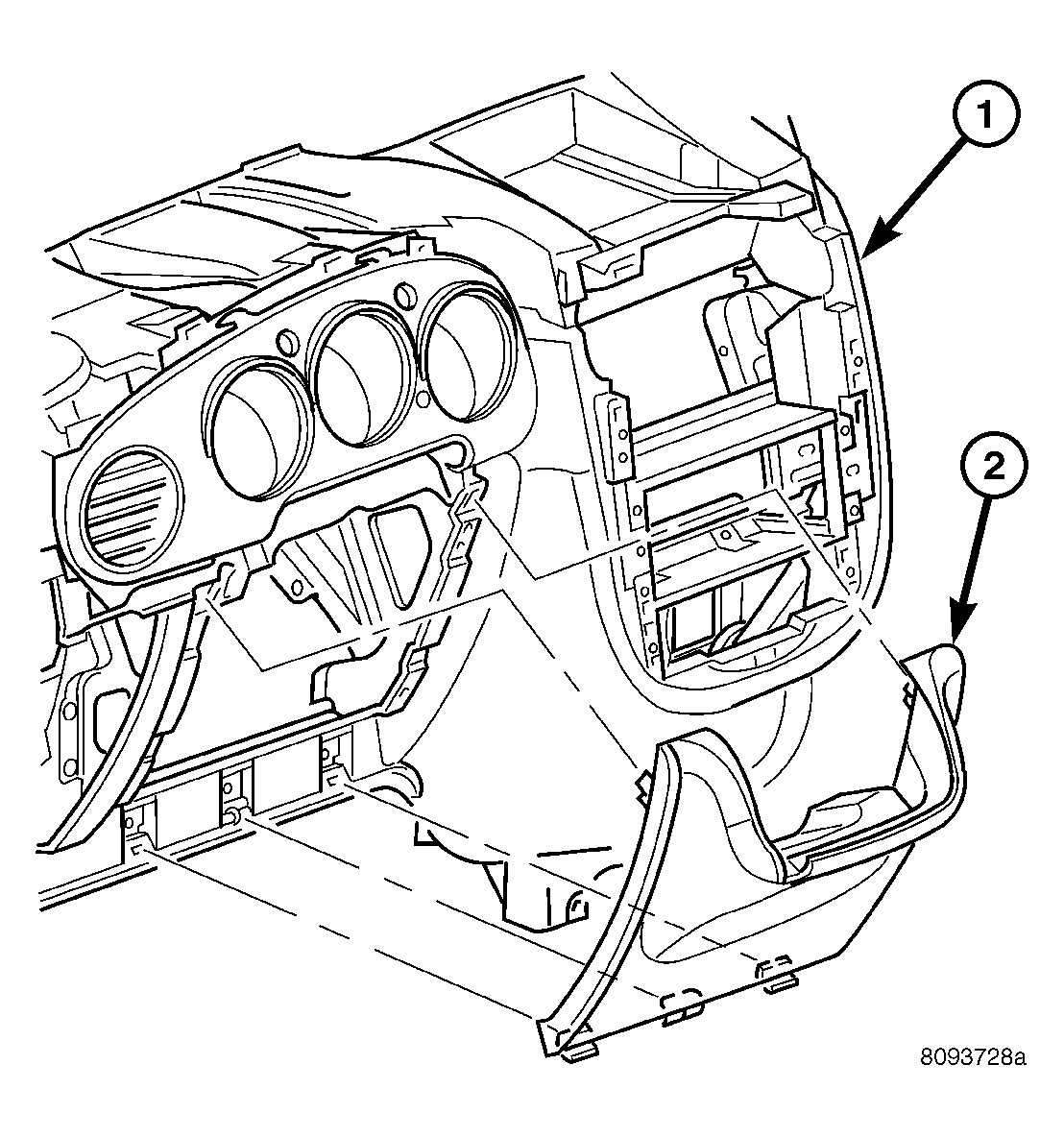

- Install lower instrument panel bezel (2). See Fig 2.
- Verify proper interlock/upstop switch operation.
