Valves & Seats-Intake/Exhaust: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

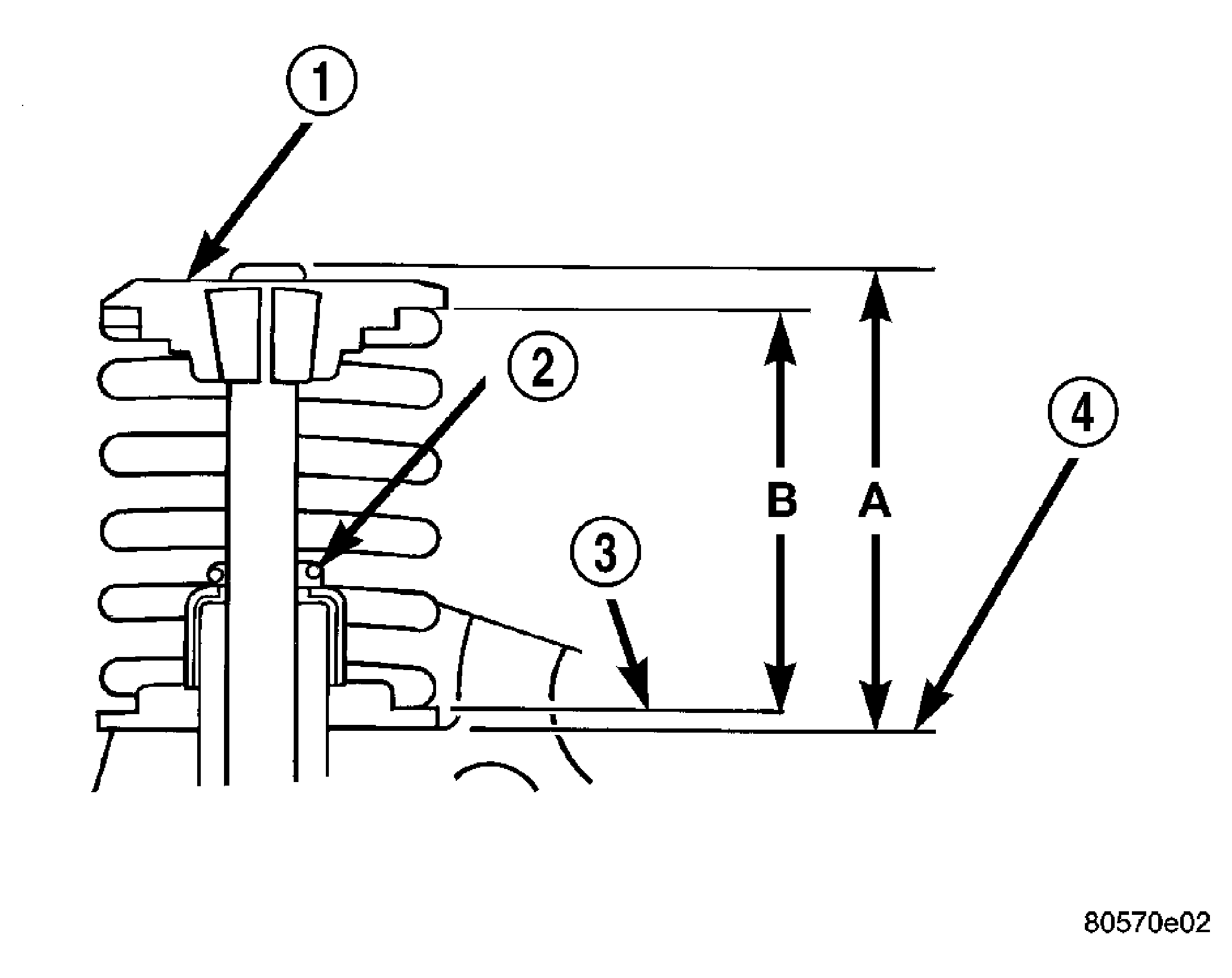

Fig 1: Checking Valve Spring Installed Height
GC0015306Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove cylinder head(s) (Refer to ENGINE/CYLINDER HEAD - REMOVAL) .
  2. Remove valve spring (3) (Refer to ENGINE/CYLINDER HEAD/VALVE SPRINGS - REMOVAL) .

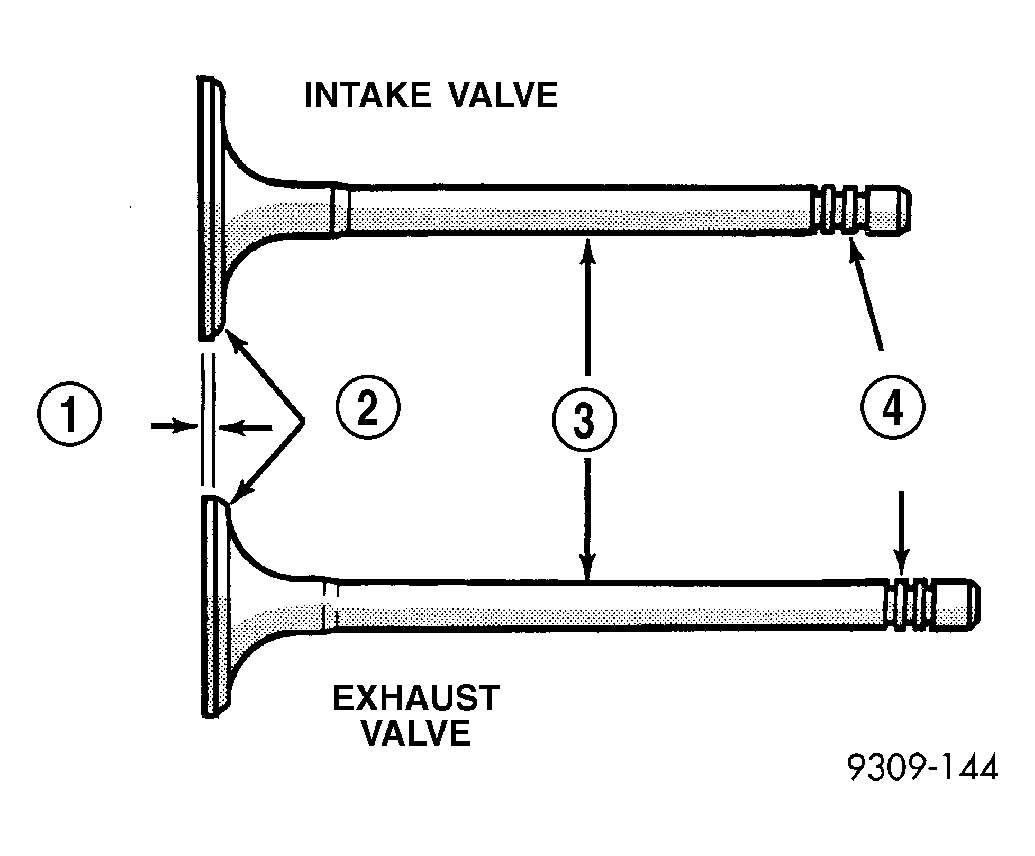

    Fig 2: Intake and Exhaust Valves
    GC0015304Courtesy of DAIMLERCHRYSLER CORP.
  3. Before removing valves (3), remove any burrs from valve stem retainer lock grooves (2) and stem tip (1) to prevent damage to the valve guides.
  4. Remove valve. Identify each valve to ensure installation in original location.
