Section 15 (2.7L Engine (Service Information)): Springs-Valve: Description

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

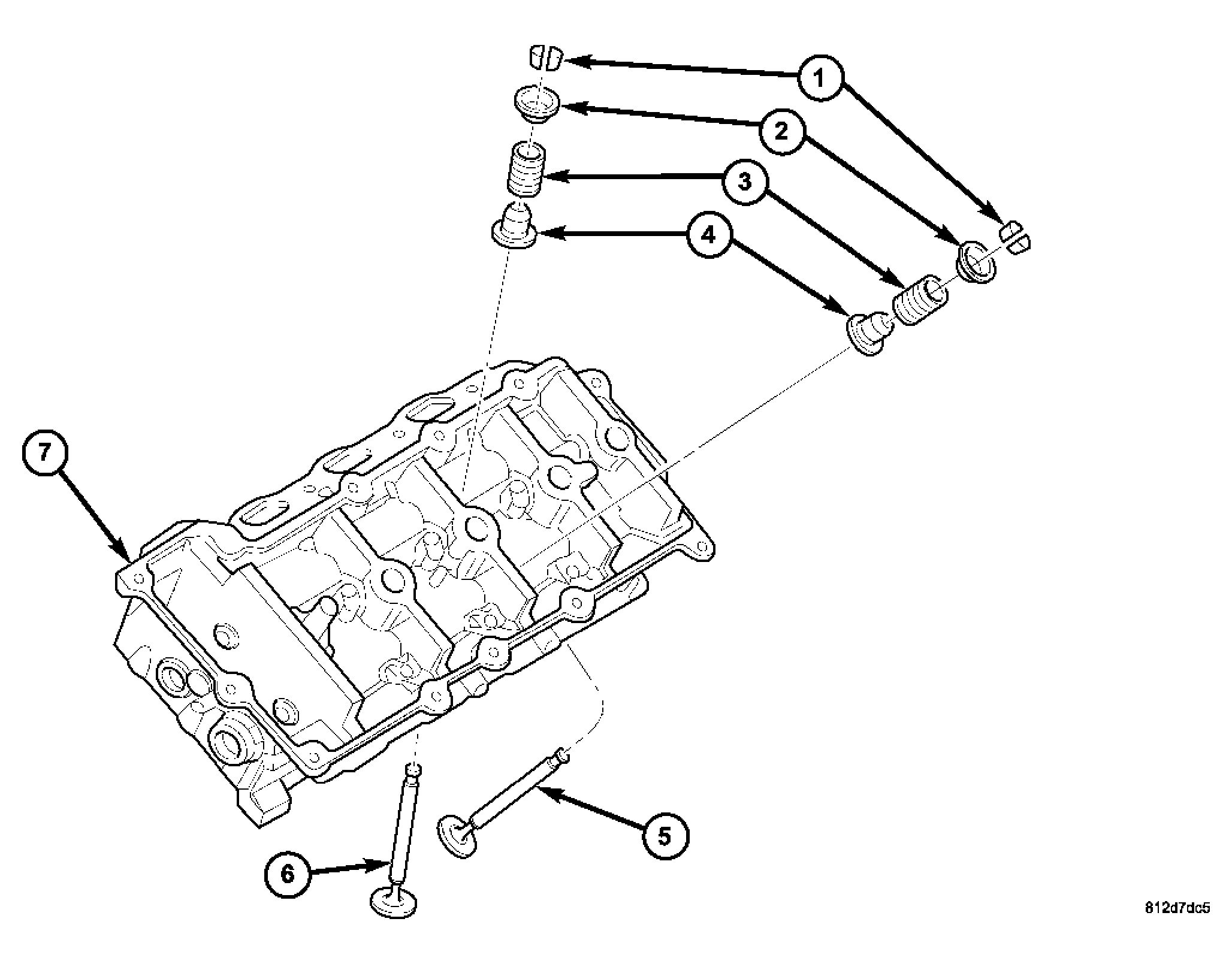

Fig 1: Exploded View Of Cylinder Head Components
GC0015273Courtesy of DAIMLERCHRYSLER CORP.

The valve springs (3) are made from high strength, chrome-silicon steel. The springs are common for intake and exhaust applications. The valve spring seat is integral with the valve stem seal (4), which incorporates a garter spring to maintain consistent lubrication control to the valve stem.
