Seals-Valve Stem: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

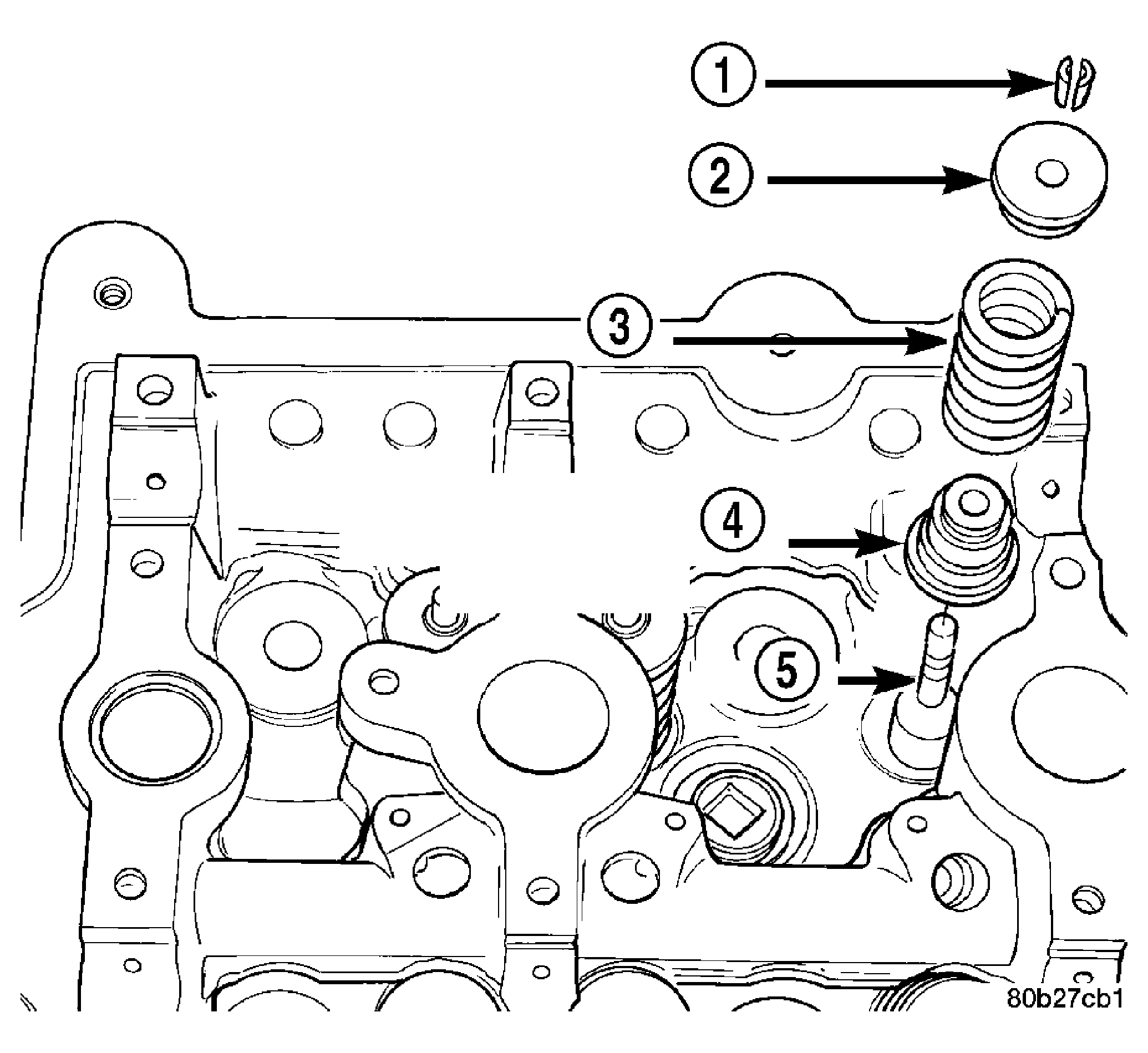

Fig 1: Valve Seal And Spring Seat Assembly
GC0015307Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove valve spring (3) (Refer to ENGINE/CYLINDER HEAD/VALVE SPRINGS - REMOVAL) .

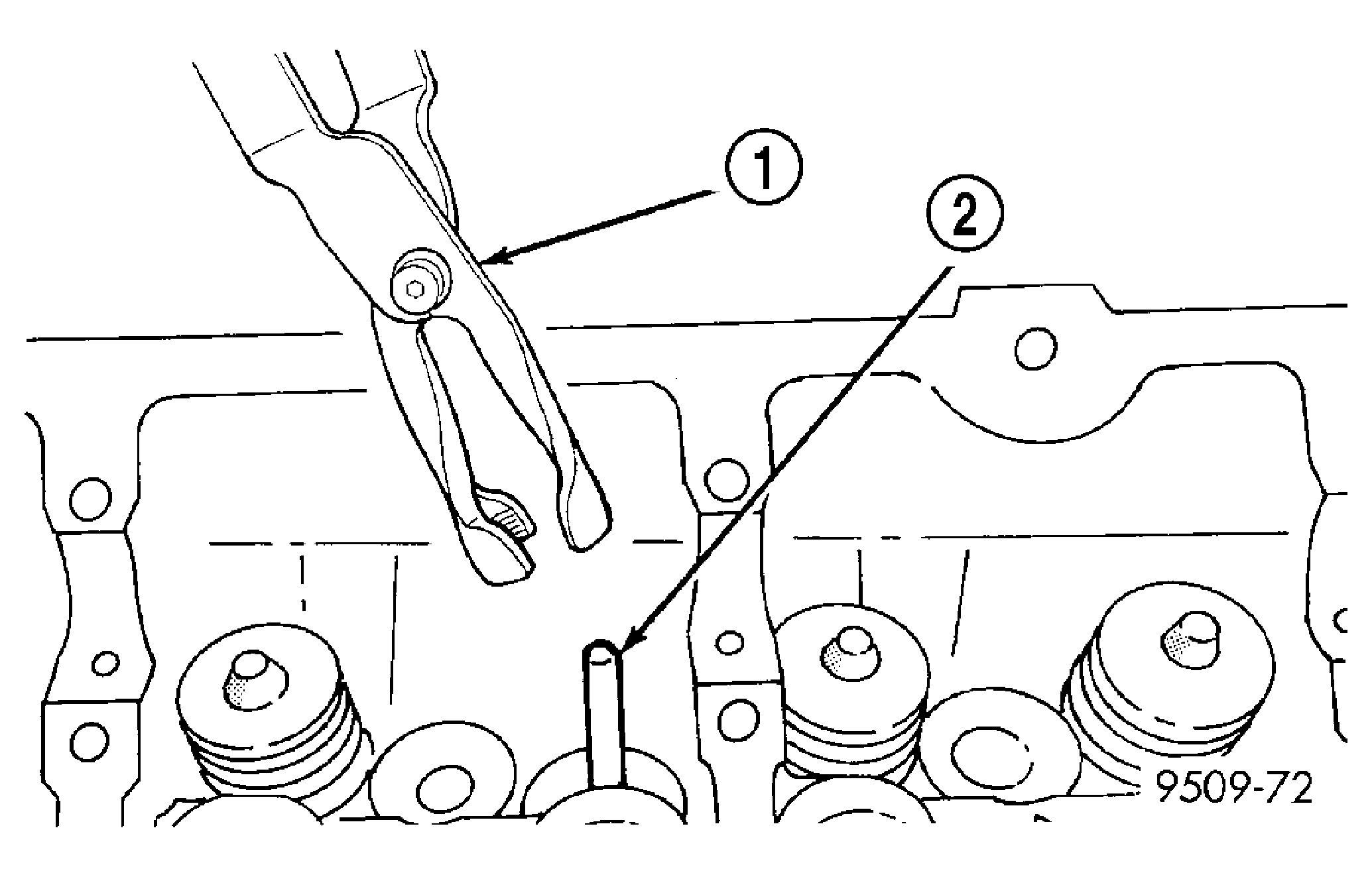

    Fig 2: Valve Stem Seal-Removal
    GC0015309Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove valve stem seal by using a valve seal tool (1).
