Section 15 (2.7L Engine (Service Information)): Rings-Piston: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

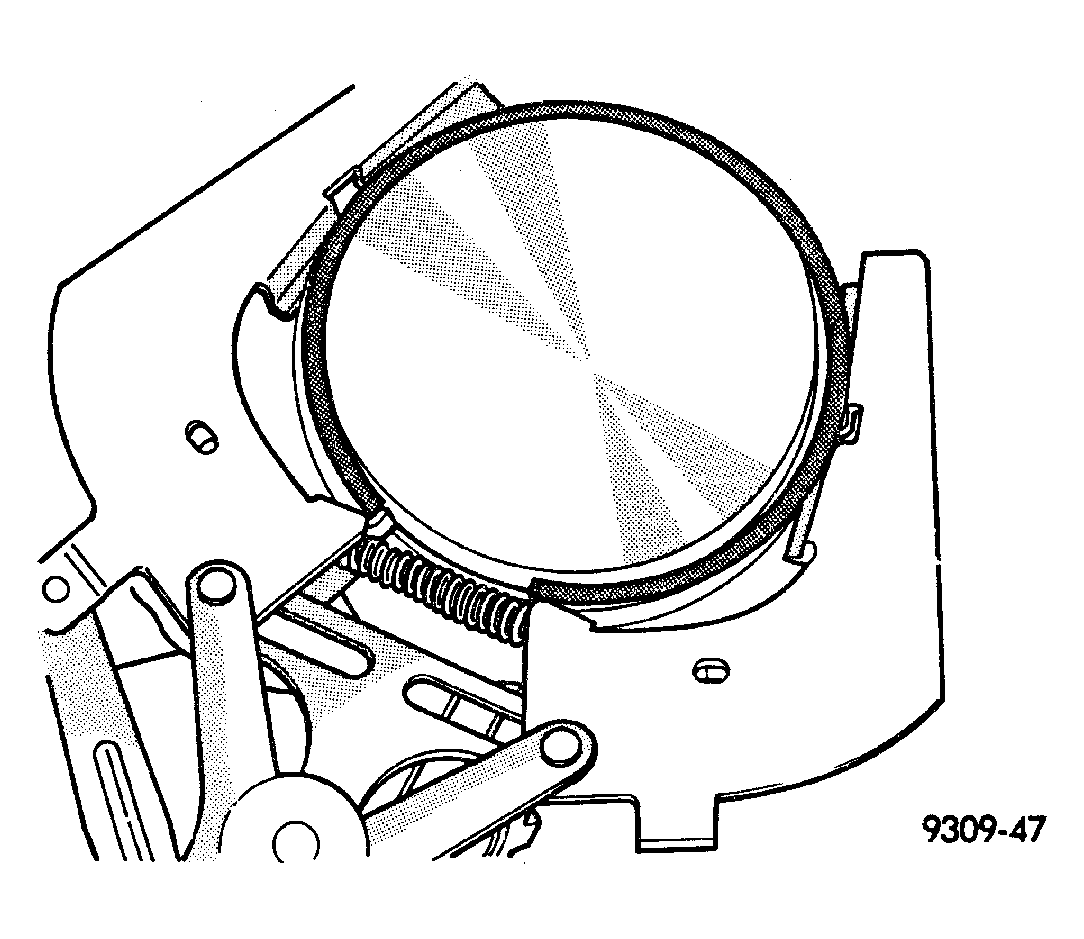

Fig 1: Piston Ring Remover/Installer
GC0003845Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove piston and connecting rod, refer to ENGINE/ENGINE BLOCK/PISTON & CONNECTING ROD - REMOVAL) .
  2. Remove #1 and #2 piston rings from piston using a ring expander tool.

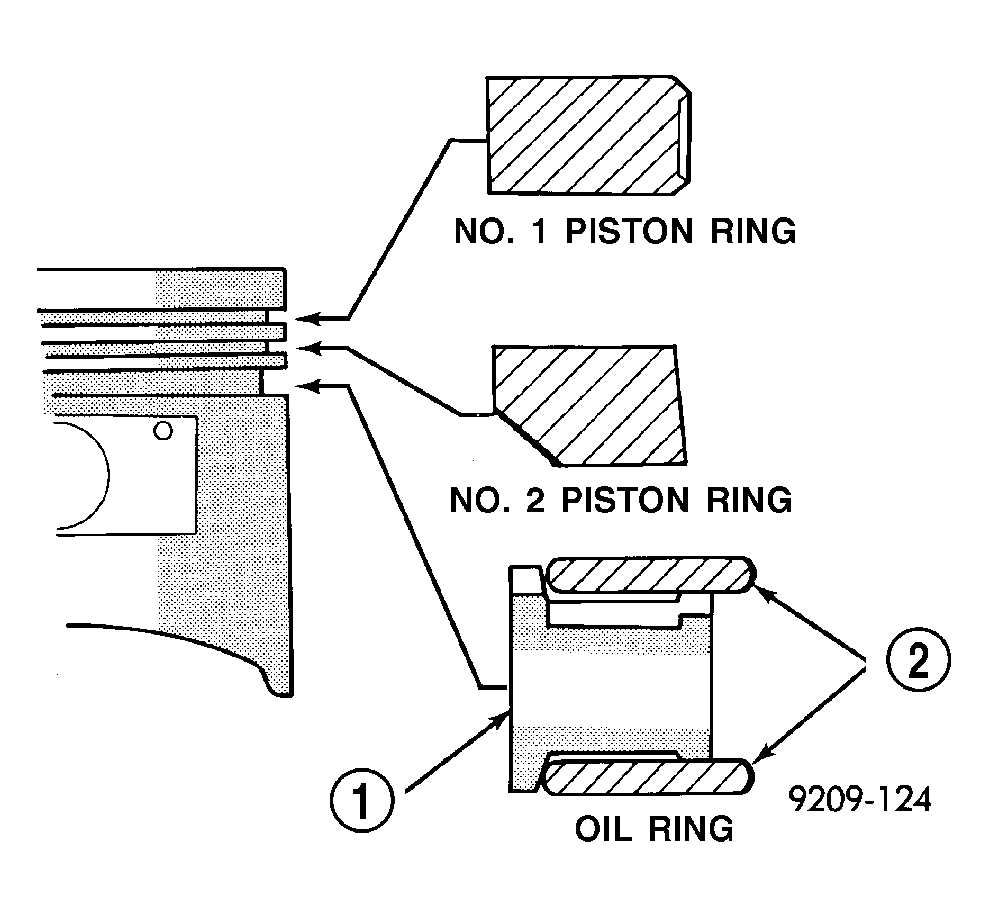

    Fig 2: Piston Ring - Installation
    GC0015340Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove upper oil ring side rail (2).
  4. Remove lower oil ring side rail (2).
  5. Remove oil ring expander (1).
