Section 15 (2.7L Engine (Service Information)): Pump-Oil: Disassembly

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: DO NOT remove oil pressure relief valve. If the oil pressure relief valve is suspect, replace the oil pump assembly.

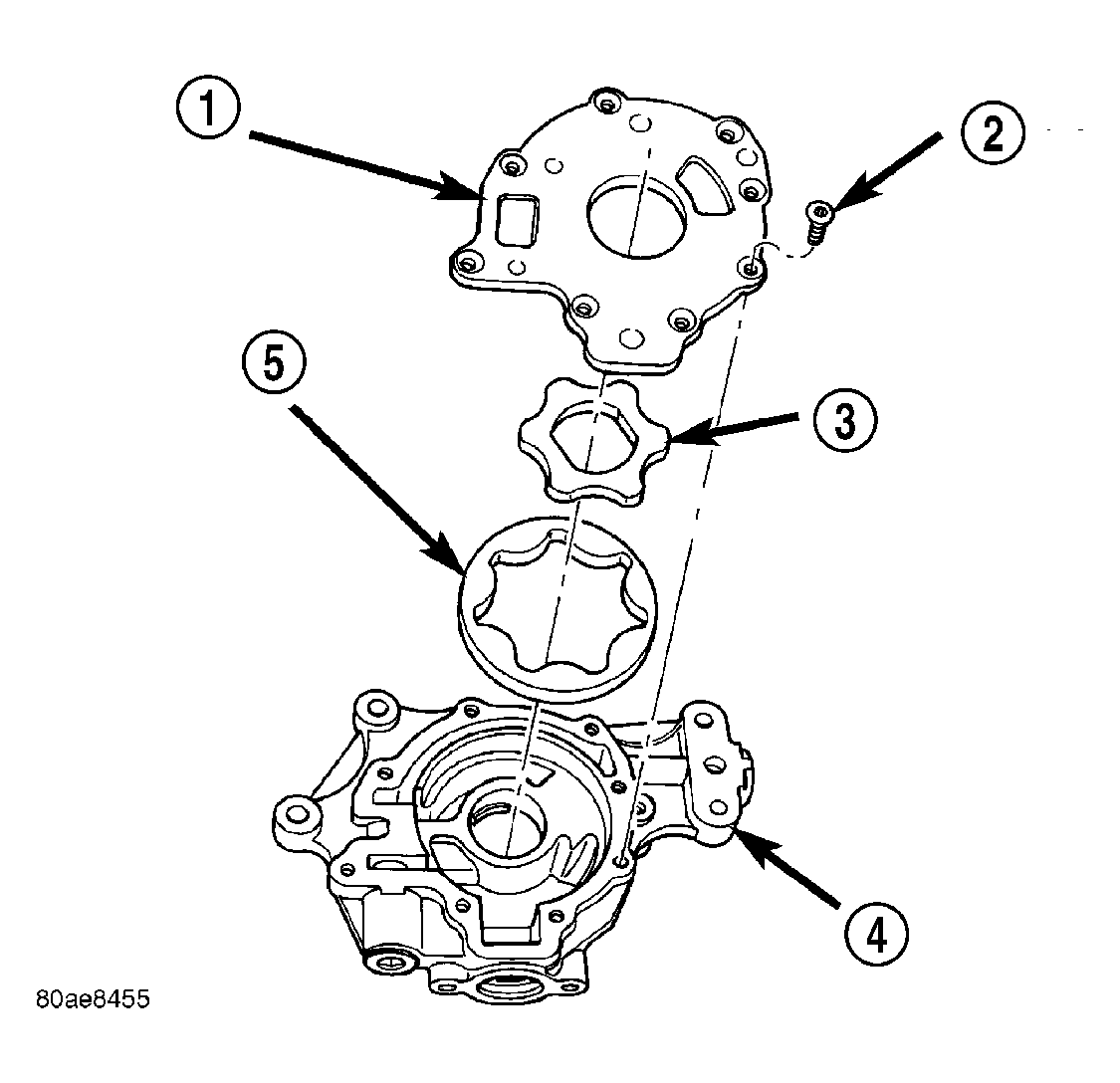

Fig 1: Oil Pump
GC0015365Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove oil pump cover screws (2) and lift off oil pump cover (1).
  2. Remove inner pump rotor (3) and outer pump rotor (5).
  3. Wash all parts in a suitable solvent.
  4. Inspect components carefully for damage or wear (Refer to ENGINE/LUBRICATION/OIL PUMP - INSPECTION) .
