Section 15 (2.7L Engine (Service Information)): Plate-Flex: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

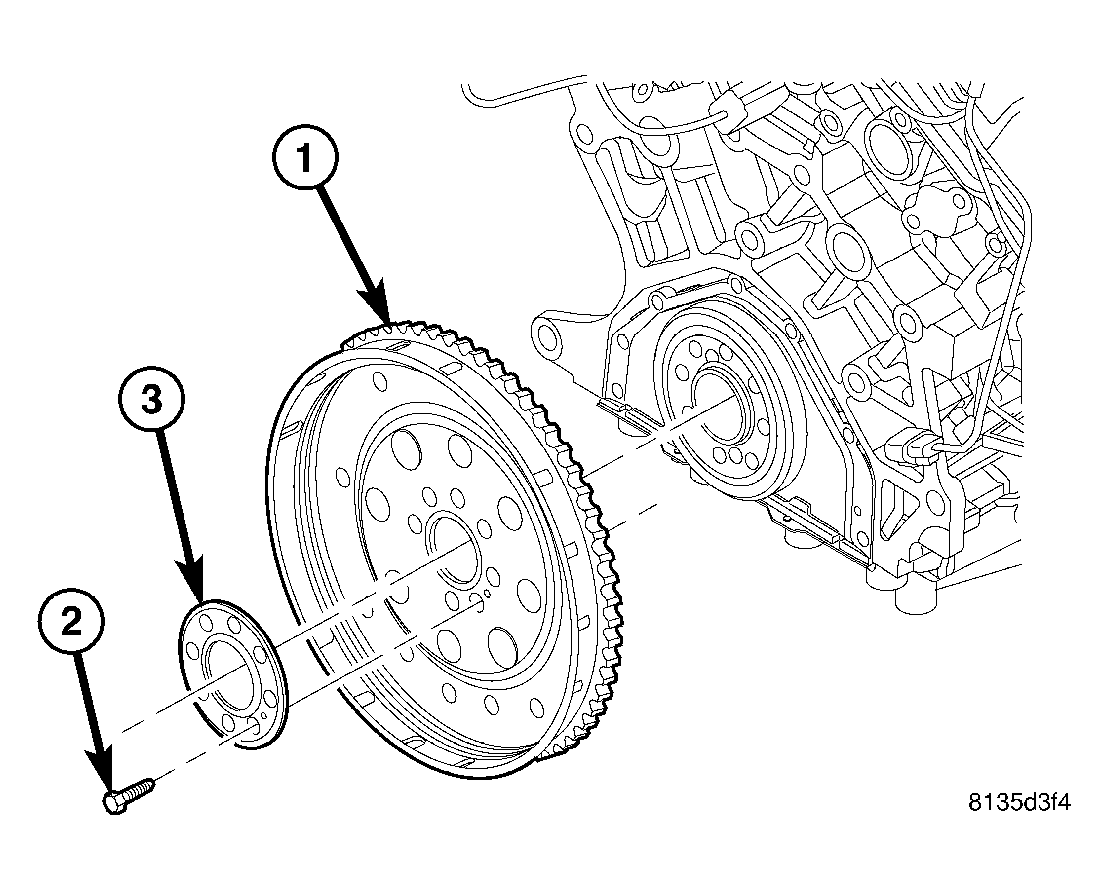

Fig 1: Locating Attaching Bolts, Backing Plate And Flex Plate
GC0015329Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove transmission (refer to REMOVAL ).
  2. Remove flex plate attaching bolts (2).
  3. Remove backing plate (3) and flex plate (1).
