Left Exhaust Manifold

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Locating Battery
GC0015222Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect negative battery (1) cable.

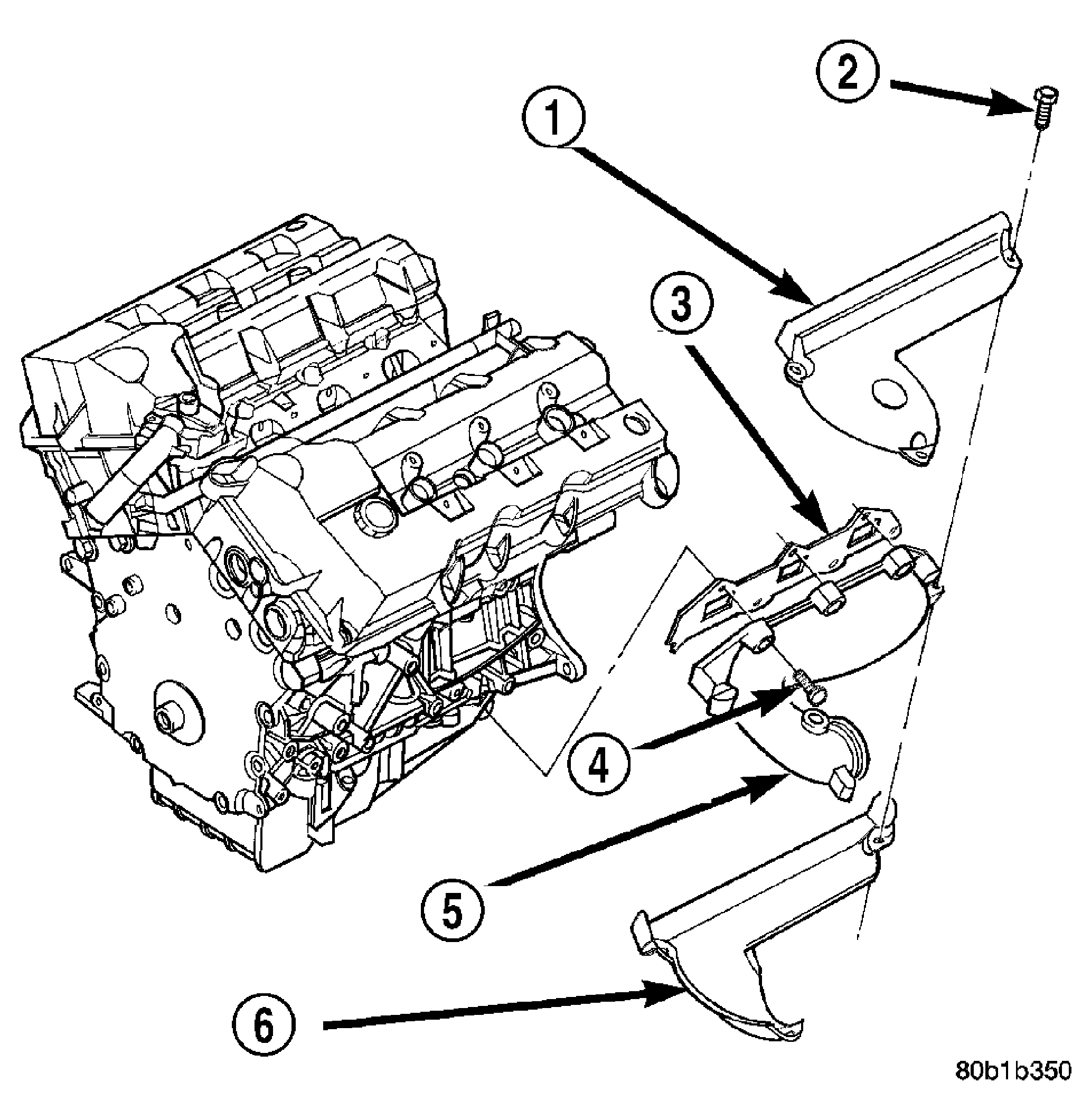

    Fig 2: Exhaust Manifold
    GC0015378Courtesy of DAIMLERCHRYSLER CORP.
  2. Raise vehicle on hoist.
  3. Install exhaust manifold gasket (3) and manifold (4). Tighten bolts starting at the center working outward to 23 N.m (200 in. lbs.).
  4. Instal manifold lower heat shield (6) and upper heat shield (1). Tighten fasteners to 28 N.m (250 in. lbs.).
  5. Install exhaust pipes to manifolds (Refer to EXHAUST SYSTEM/CATALYTIC CONVERTER - INSTALLATION) .
  6. Connect down stream oxygen sensor connectors.
  7. Lower vehicle.
    Fig 3: Left Exhaust Manifold
    GC0015376Courtesy of DAIMLERCHRYSLER CORP.
  8. Install oxygen sensor (2) and connect electrical connector.
    Fig 4: Locating Battery
    GC0015222Courtesy of DAIMLERCHRYSLER CORP.
  9. Connect negative battery (1) cable.
