Cover(S)-Cylinder Head: Removal: Left

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Locating Battery
GC0015222Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect negative battery (1) cable located in trunk.
    Fig 2: Coil Connectors
    GC0015236Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove upper intake manifold (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - REMOVAL) .
  3. Disconnect electrical connectors from ignition coils (1).
    Fig 3: Capacitor Connector - Left
    GC0015299Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove ground strap from cylinder head cover stud (1) and disconnect capacitor connector (2). Reposition electrical harness.
  5. Disconnect electrical harness retaining clips from cylinder head cover studs. Reposition electrical harness.
    Fig 4: Coil Connectors
    GC0015236Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove make up air hose.
  7. Remove fastener attaching ignition coil capacitor.
  8. Remove ignition coils (1).

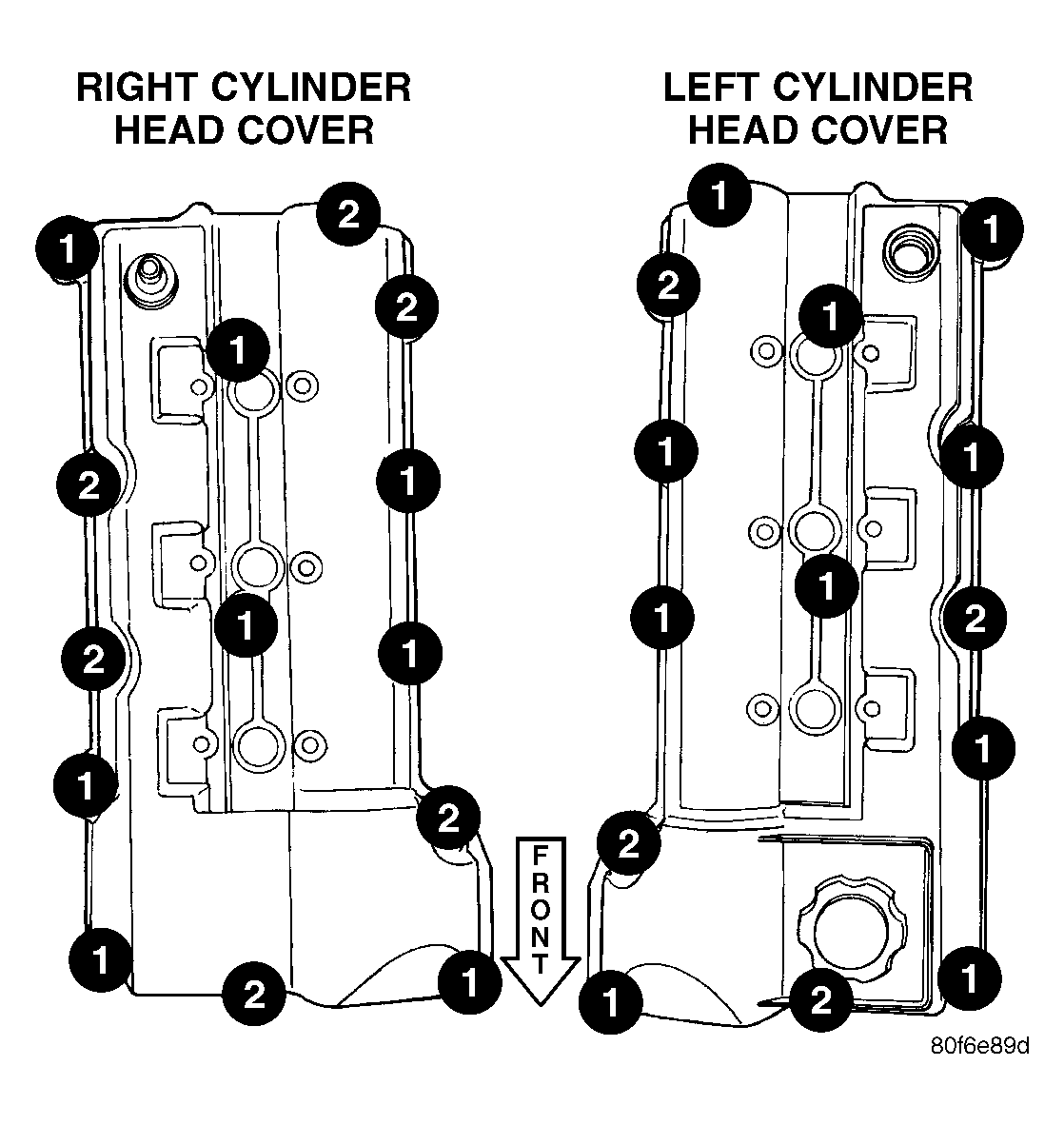

    Fig 5: Cylinder Head Cover Fasteners
    GC0015297Courtesy of DAIMLERCHRYSLER CORP.
  9. Loosen all cylinder head cover fasteners (1)&(2).
    NOTE: Cylinder head cover attaching bolts are captured to the cover.
    CAUTION: Make certain the double ended studs (1) in the center of the cylinder head cover are loose before attempting to remove cover.
  10. Remove cylinder head cover.
