Cover(S)-Cylinder Head: Installation: Left

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

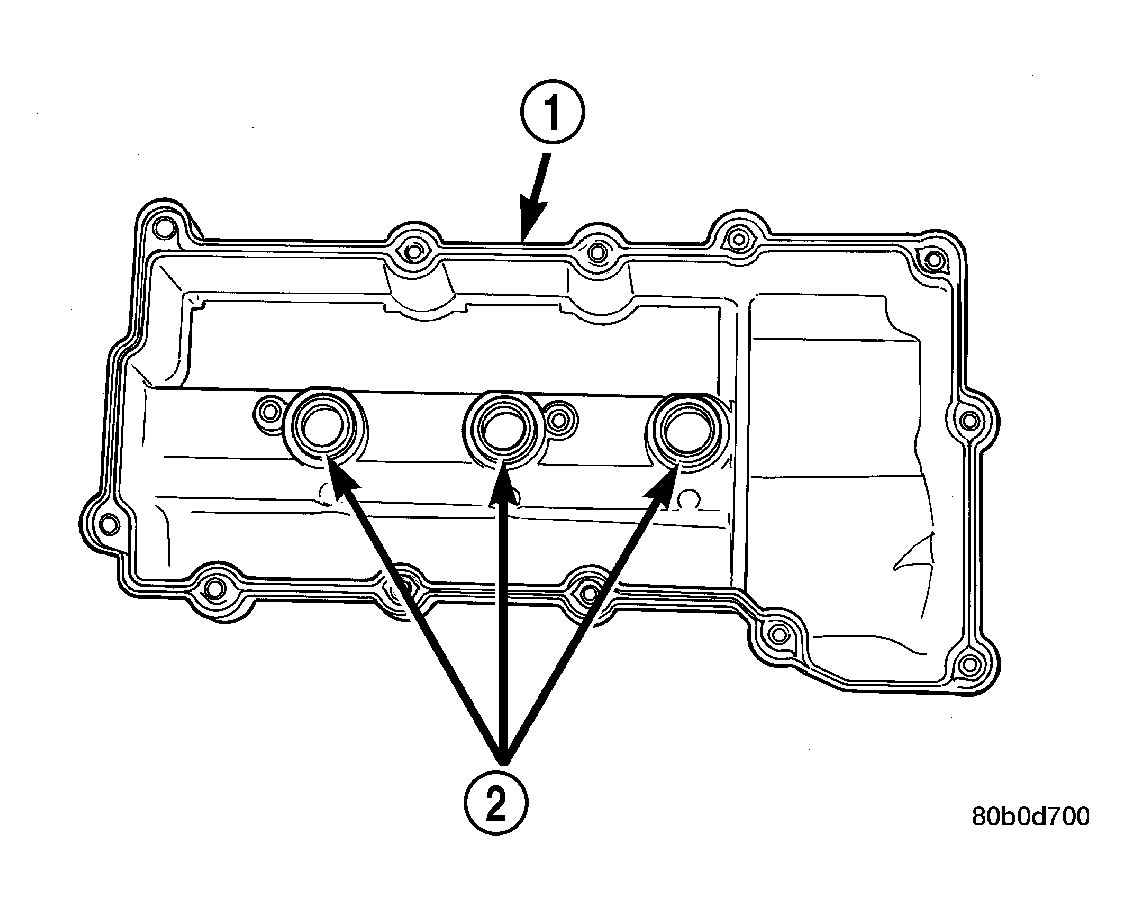

Fig 1: Cylinder Head Cover Gasket and Spark Plug Seals
GC0015298Courtesy of DAIMLERCHRYSLER CORP.
  1. Clean cylinder head cover and both sealing surfaces. Inspect and replace gaskets (1)&(2) as necessary.

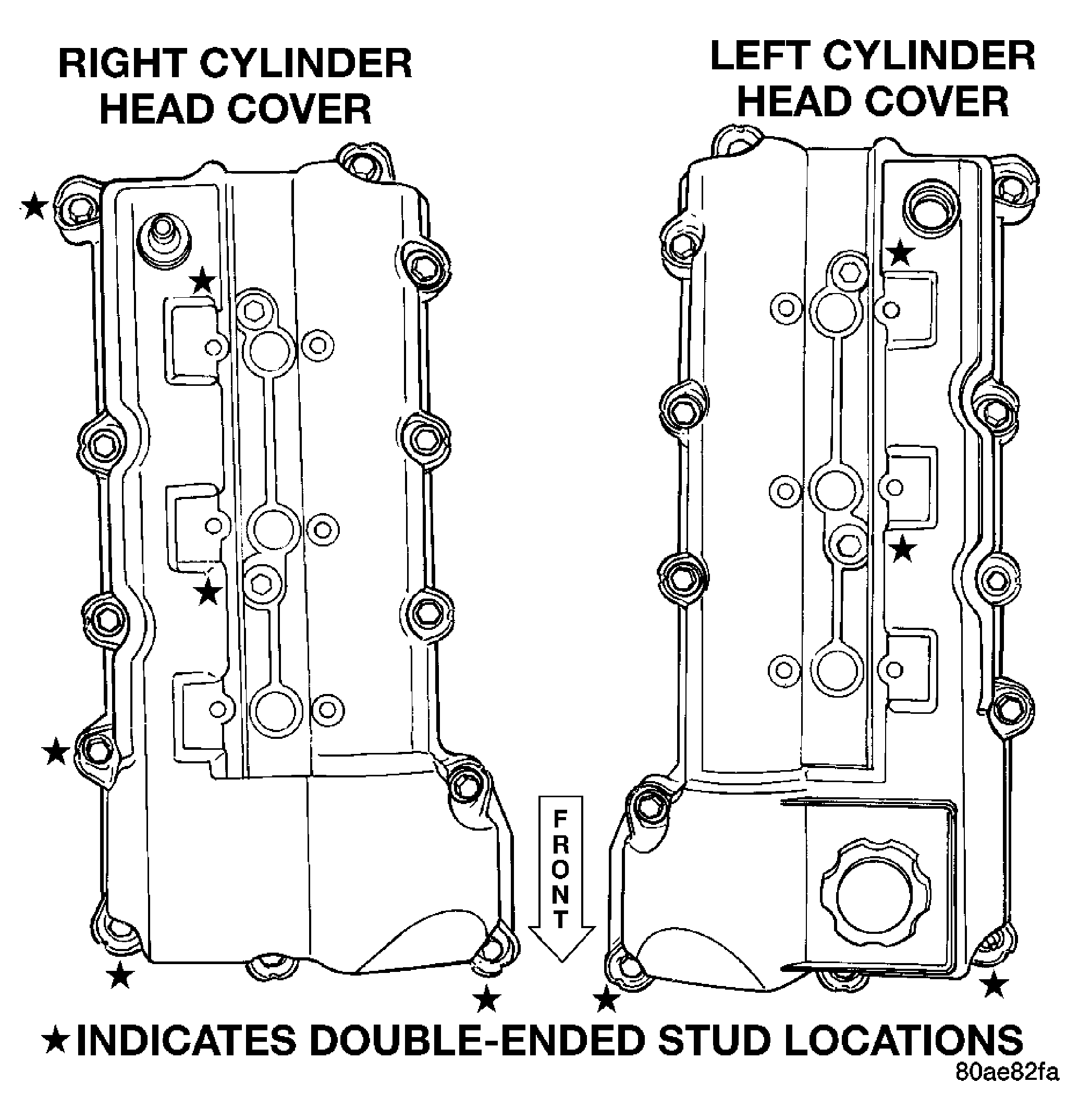

    Fig 2: Cylinder Head Covers
    GC0015300Courtesy of DAIMLERCHRYSLER CORP.
  2. Install cylinder head cover and hand start all fasteners. Verify that all double-ended studs are in the correct locations.
  3. Tighten cylinder head cover attaching bolts and double-ended studs to 12 N.m (105 in. lbs.).

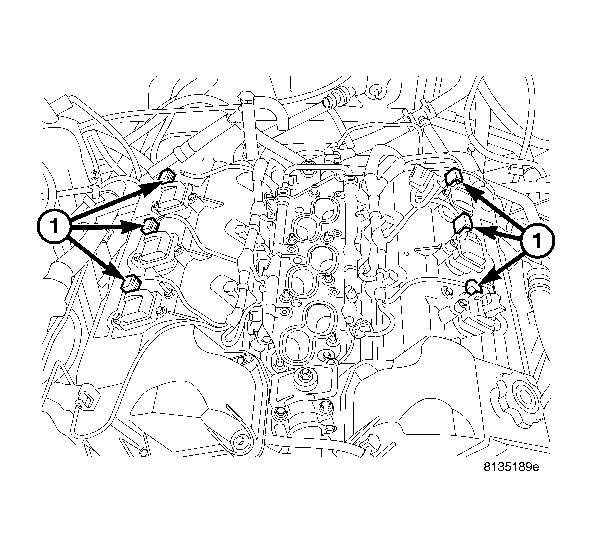

    Fig 3: Coil Connectors
    GC0015236Courtesy of DAIMLERCHRYSLER CORP.
  4. Install ignition coils (1).
    Fig 4: Capacitor Connector - Left
    GC0015299Courtesy of DAIMLERCHRYSLER CORP.
  5. Install ignition coil capacitor (2) and fastener.
  6. Install ground strap (1) to cylinder head cover stud.
  7. Connect all electrical connectors and harness clips.
  8. Connect make up air hose.
  9. Install upper intake manifold (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION) .
    Fig 5: Locating Battery
    GC0015222Courtesy of DAIMLERCHRYSLER CORP.
  10. Connect negative battery (1) cable.
