Cooler & Lines-Oil: Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

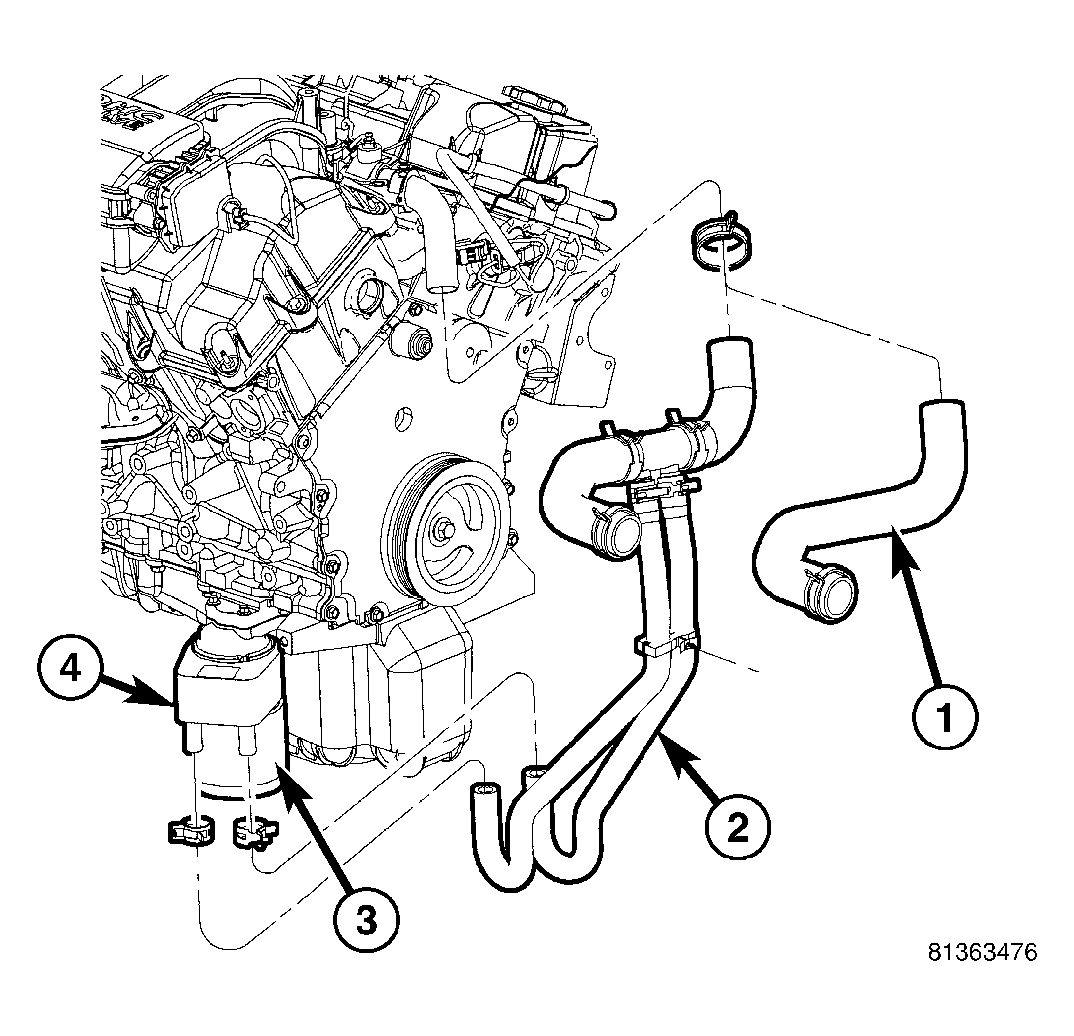

- Install oil cooler (4).NOTE: The cut out section of the oil cooler seal retainer flange (top), must be aligned with the tab on the oil pan. The oil cooler must be prevented from turning during the tightening sequence.
- Install oil cooler (4) attaching fastener and tighten to 61 N.m (45 ft. lbs.).
- Install oil filter (3).
- Connect coolant hoses (2) to oil cooler (4).
- Lower vehicle.
- Fill cooling system (Refer to COOLING - STANDARD PROCEDURE) .
- Start engine and check for leaks.
- Check engine oil and add as needed.
