Section 15 (2.7L Engine (Service Information)): Camshaft(S): Inspection
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

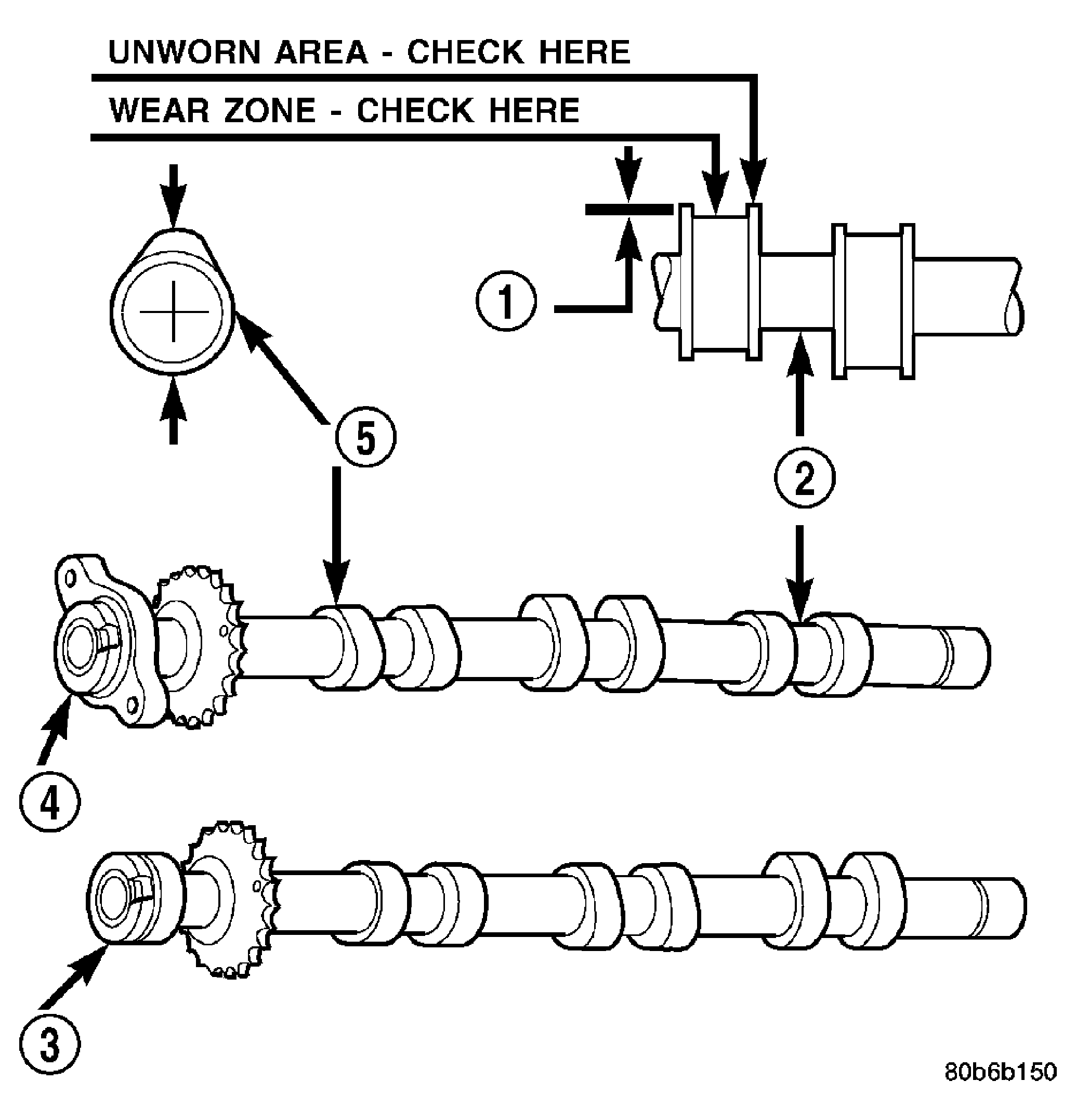

- Inspect camshaft bearing journals (2) for damage and binding. If journals are binding, check the cylinder head for damage. Also check cylinder head oil holes for clogging.
- Inspect camshaft sprockets for excessive wear. Replace camshafts if necessary.
- Check the cam lobe (5) surfaces for abnormal wear and damage. Replace camshaft if defective. Measure the actual wear and replace, if out of limits-standard value is 0.0254 mm (0.001 in.); wear limit is 0.254 mm (0.010 in.).
