Tail Lamp Unit: Removal

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

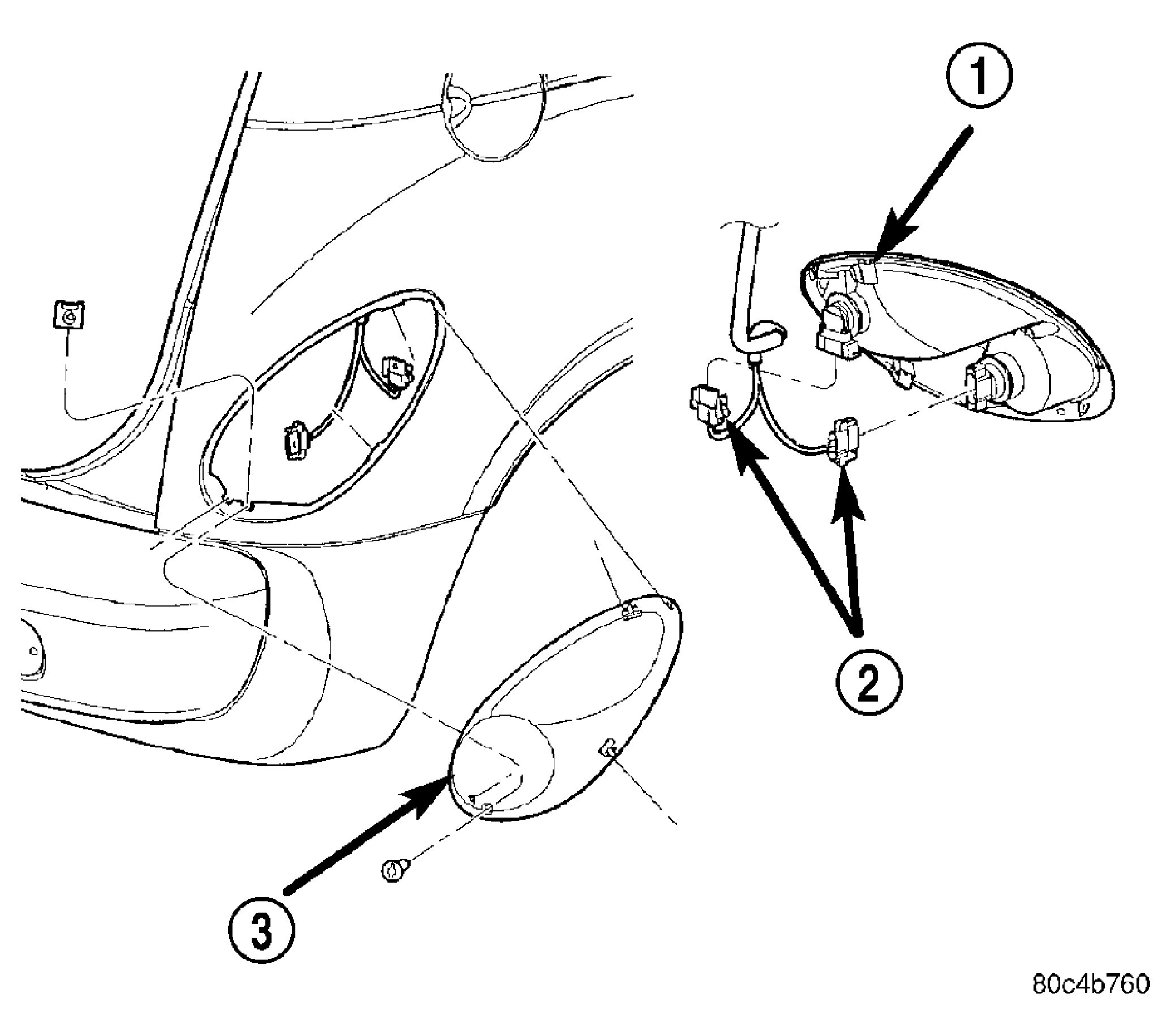

  1. Remove screw attaching tail lamp assembly to the aperture panel. See Figure.
  2. Slide the lamp assembly downward in the sheet metal opening.
  3. Remove the lamp assembly from the vehicle.
  4. Remove the bulb sockets from the lamp assembly by rotating the sockets counterclockwise until free of the assembly.
