Center High Mounted Stop Lamp Unit: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage the wire harness connector to the CHMSL.

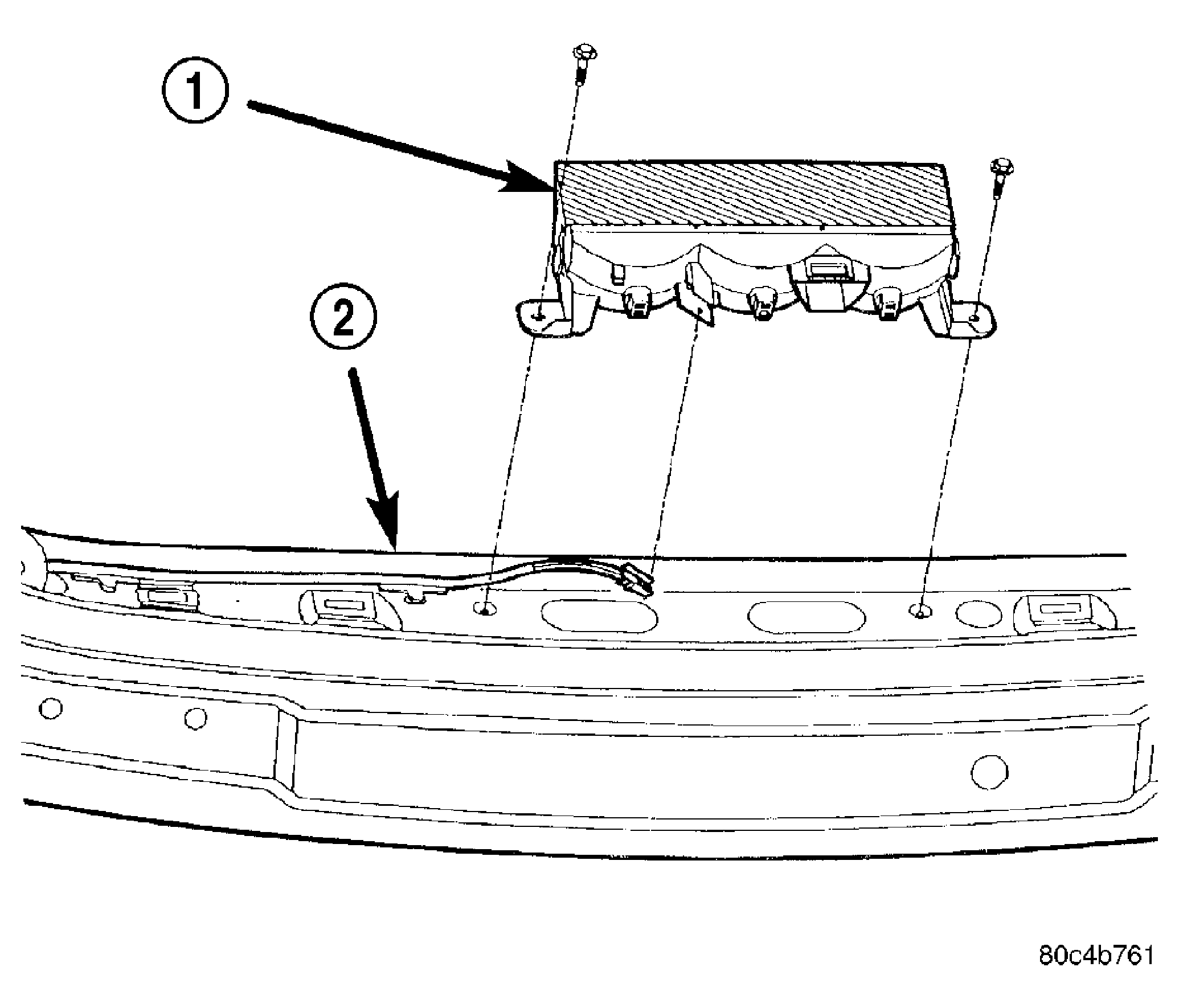

  2. Instal screws attaching the CHMSL unit. See Figure.
  3. Test operation of lamps.
  4. Install liftgate CHMSL cover.
  5. Close liftgate.
