Trans Range Indicator Illumination: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

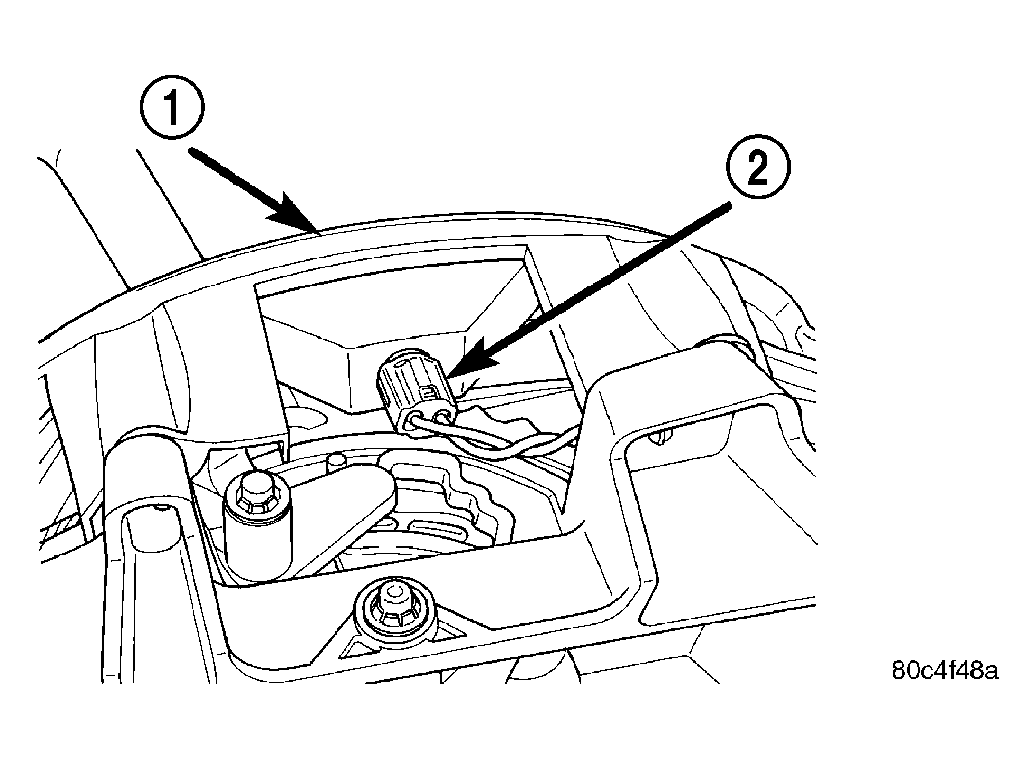

  1. Push bulb into socket. See Figure.
  2. Snap socket into position.
  3. Install floor console into position.
  4. Install gear shift knob.
