Rear Cargo Lamp: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

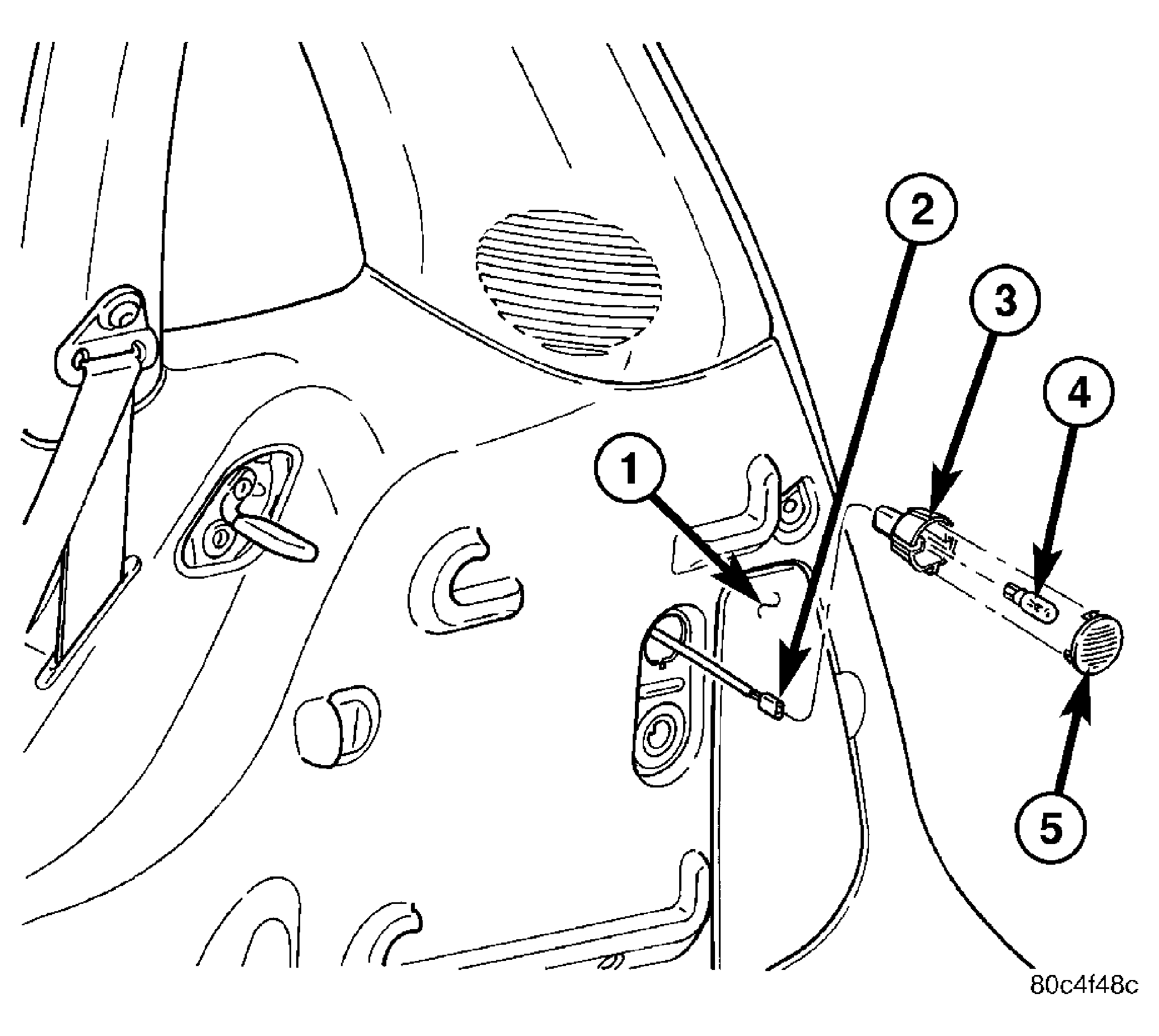

  1. Push bulb into unit socket. See Figure.
  2. Snap lens onto lamp unit.
  3. Move wire connector through lamp opening and connect wire connector to cargo lamp unit.
  4. Place cargo lamp unit into opening and apply hand pressure to seat lamp unit into rear quarter panel.
  5. Install jack and tool bag in the storage area.
  6. Install jack storage door to the right rear quarter trim panel.
  7. Close liftgate.
