Sensor-Transmission Temperature: Description
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

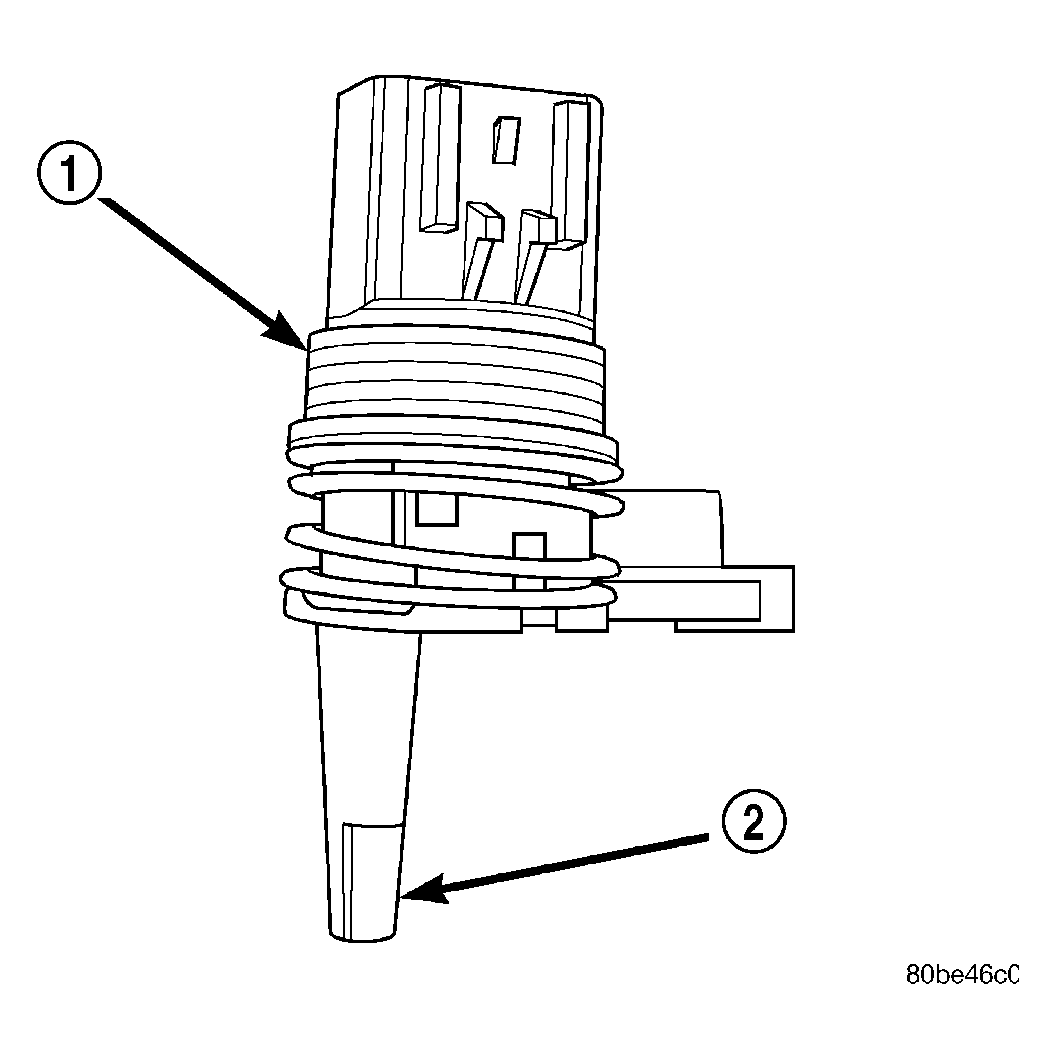

| 1 - TRANSMISSION RANGE SENSOR |
| 2 - TEMPERATURE SENSOR |
The transmission temperature sensor (2) is located in the transmission range sensor (1) and communicates transmission sump temperature to the TCM. See Fig 1.
